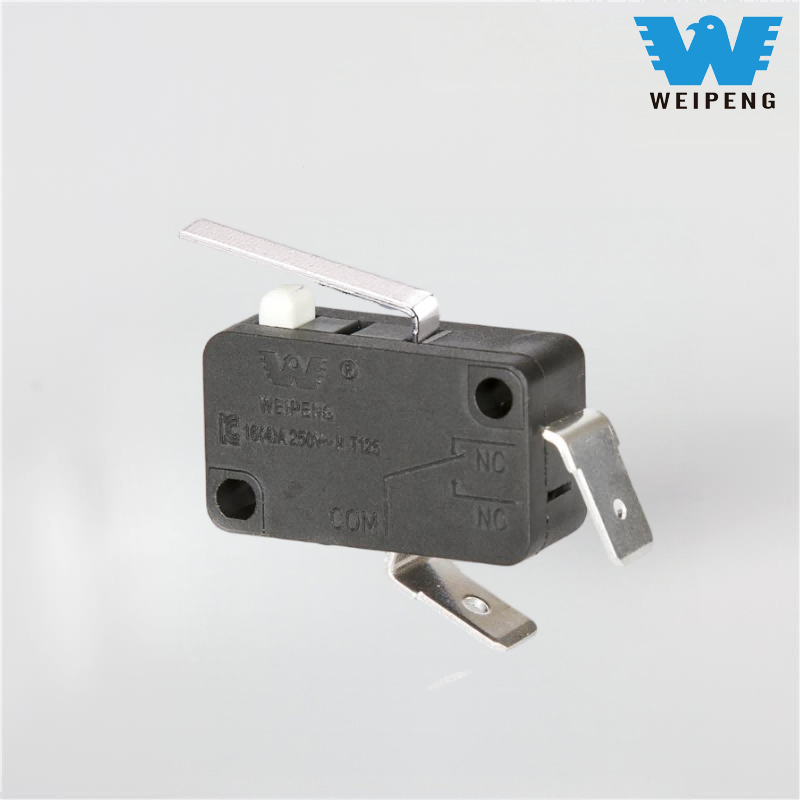

Proin Weipeng furno Induction Cooker Aqua Heater Limit Switch

Ut accumsan exemplar de Yueqing Tongda Wire Electric Factory microform series, Weipeng Proin Oven inductio Cooker Aquae Heater Limit features switch "alta sensibilitas, ultra-longam vitam, et multi-sca- natio aptabilitas" pro core utilitates eius. Integrata societas XXXV annorum peritia fabricandi, facta est clavis moderaminis componentis in adjumenta domestica, electronica automativa, automationis industriae, et in aliis agris, propter minimam contactum hiatum et celerem actionem mechanismum. Eius effectus et commendatio certificata est per multiplices Instituta auctoritativas per orbem terrarum, obtinens suam amet positionem in foro iussisti.

Model:HK-14-1-16AP-713

Mitte Inquisitionem

depictio producti

WEIPEG® est ducensProin Weipeng furno Induction Cooker Aqua Heater Limit Switchartifices, praebitores et exportatores.

Microform SWITCH PB

Core Technology Commoda

1. Precise Trigger Mechanismum

Contactus stannum argenteum utitur cum mechanismo celeri actionis, contactus resistentiae ≤50mΩ, stabili et accurato signo transmissionis procurando.

Plaga operationis minimalis erroris et sensibilitatis felis altae, apta ad praecisionem missionum ditionis.

Variis vectibus coegi praesto (brachium breve, brachium longum, cylindrum, globulum, etc.) ad diversas necessitates mechanicas excitandas.

2. ultra-Long Service Vita

Mechanica vitae spatium 1 decies cyclos excedit, vitae electricae usque ad 50.000 cyclos; nuclei nuclei efficiuntur altae temperaturae-repugnantes machinarum materiarum materiarum et metallorum nobilissimi roboris, obtemperans signis internationalibus EN 61058-1

Electrical operating frequentatio XV vicibus / min potest pervenire, mechanica frequentia operandi usque ad LX tempora/min, apta ad operationes frequentiae summus.

3. summus Reliability Design

Features integratae structurae obsignatae cum resistentia excellenti vibrationis (10~55Hz range frequentiae)

Instructus ad tutelam supercurrentem efficaciter praecavendum ne ambitus oneris et instrumenti damni inficiatur.

Variae formulae terminales in promptu sunt (solidum, ferrum, cochleae, cincinnum, etc.) ad multiplices methodos institutionis aptandas.

Microform Parameter SWITCH PB (specification)

Technical Characteres switch:
ITEM	Technical Parameter		Precium
1	Electrical Rating		5（2)A/10A/16(3)A/21（8）A 250VAC
2	Contactus Resistentia		≤30mΩ valorem initial
3	Nulla Resistentia		≥100MΩ (500VDC)
4	Dielectric Voltage	inter non-connexa terminales	1000V/0.5mA/60S
		Inter terminals et metallum artus	3000V/0.5mA/60S
5	Vita electrica		≥50000 circuitus
6	Mechanica Vita		≥1000000 circuitus
7	Operating Temperature		-25~ 125℃
8	Operating Frequency		electrica :15 circuitus Mechanica: LX circuitus
9	Vibratio Probatur		Vibratio Frequentia: 10~55HZ; Amplitude : 1.5 mm. Tres directiones: 1H
10	Facultates vendidit: Plus quam LXXX% de parte baptizati solida operietur		Temperature vendendi : 235± 5℃ Tempus baptizat: 2~3S
11	Solder Caloris Resistentia		Intingere solidamentum: 260±5℃ 5±1S Manuale solidamentum: 300±5℃ 2~3S
12	Salus Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Tempestas test		Ambiens Temperature :20±5℃ Relativum Umor: 65±5% RH Pressura aeris: LXXXVI ~ 106KPa

Microform switch Feature et Application

1.Sate, certa basic switch
2. Pulchra species, stricta contiguatio. Charactenistic: parva contactu dlearance, actio velox, magna sensibilitas et parva 3. peregrinatio operans.
4.Long vitam, princeps reliablity
5.A varietate contactus terminales
6.A varnety temperatus gradus
7.A variis vectibus
8.Adopt themosetting plastic vel themoplastic
9. Late usus in home apliane elecroninc apparatusautomatic apparatus communicationis equioncar electron, apparatus et 10. instrumentum motus electrici etc.

Microform SWITCH PB Details
