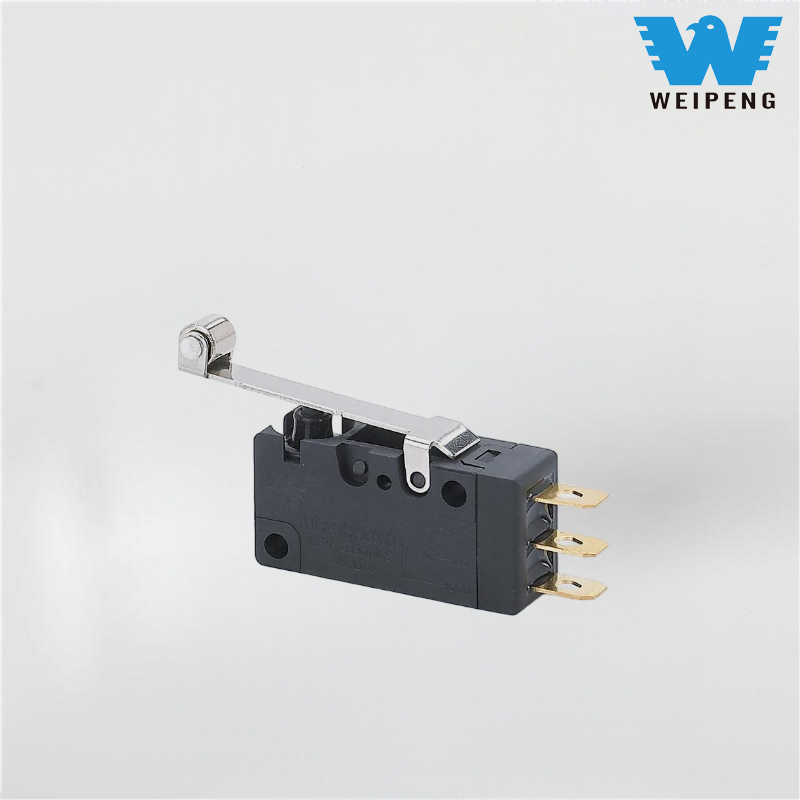

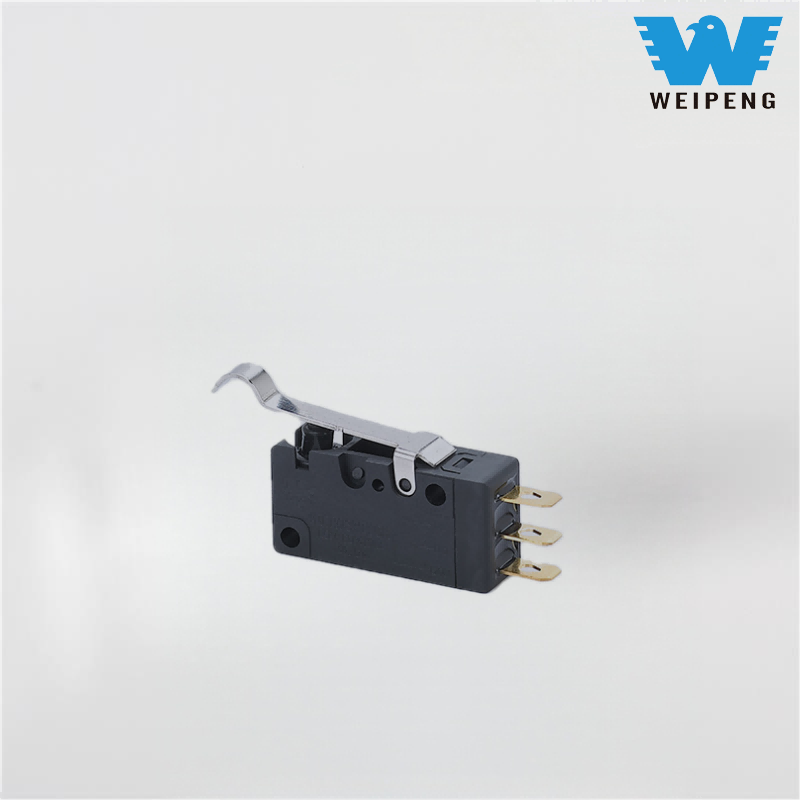

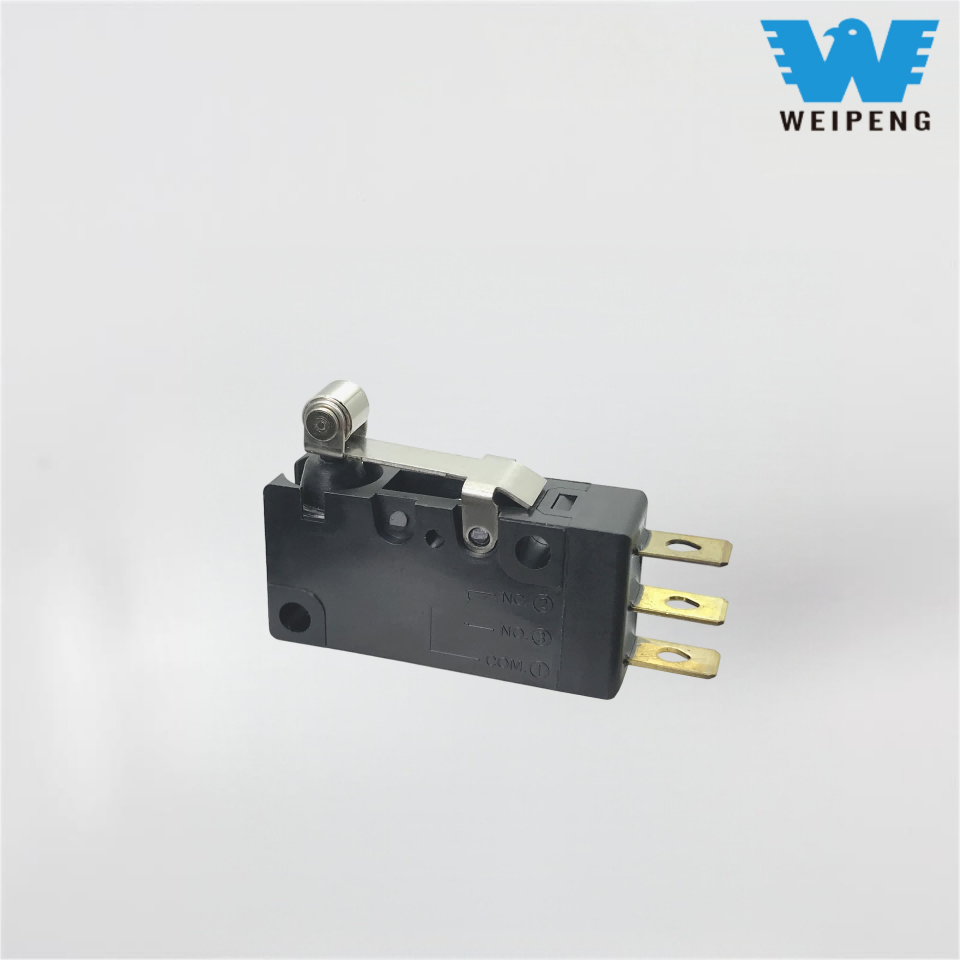

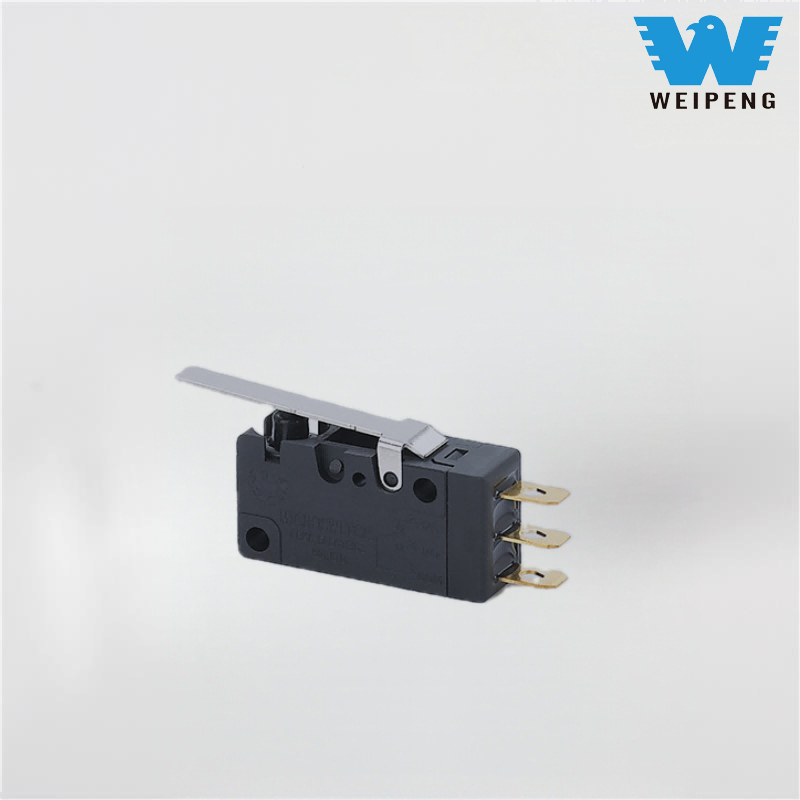

Weipeng Diu palpate Dustproof Books Micro SWITCH PB

Ut artifices professionales, WEIPENG® vellem praebere momentarium Micro Switch Waterproof Cum Lever offeremus tibi optimam post venditionem servitii et partus opportune. Pro magis notitia in Weipeng Diu Handle Dustproof Automotiva Micro Switch, placet liberum contactus nos.

Model:FSK-14-5A-001

Mitte Inquisitionem

depictio producti

WEIPENG®Est plumbumtes of * Weipeng Diu manubrium Dustproof Automotiva Micro switch artifices,supplementumrs et exportator.

Productum Introduction

Ut navis IMPERVIUS switch a Yueqing Tongda evoluta pro magno apparatu industriae et gravi officio missionum velit, series FSK-14 in "gravis-officii compatibilitas" et IP67-gradu profunda waterproofing spectat. Comitationes societatis supra XXX annos fabricandi fabricandi experientiam cum gradu militari signandi technologiam coniungit. Specialiter designatus est summus armorum potentiarum, aquae profundae operationes, et ambitus industriae extremae, facultatem eximiam onus, altae aquae tutelam signandi, et structuram institutionem stabilem praebet. Valde accommodatum est ad graves machinas, instrumenta potentiae, machinationes marinas, infrastructuras velit, et alios agros, ut nucleus fiat solutionis instrumenti moderandi in asperis ambitibus.

Productumum FeatureetApplicatio

Apparatus metallicus-Aquarum microformes aptae sunt ad moderandas rationes in instrumento metallurgico, ut fornacibus summus temperatus, apparatum refrigerans, etc. Eius exsecutio IMPERVIUS normalis operationem fabricae in caliditate et humida environment in caliditate curare potest.

Technical Characteres switch:
ITEM	Technical Parameter		Precium
1	Electrical Rating		5 (2)A 125/250VAC 10(3) 125V/250VAC
2	Operans Force		1.0~5.0N
3	Pretravel		0.6~1.5mm
4	Contactus Resistentia		≤50mΩ valorem initialem
5	Nulla Resistentia		≥100MΩ (500VDC)
6	Dielectric Voltage	inter non-connexa terminales	500V/0.5mA/60S
		Inter terminals et metallum artus	1500V/0.5mA/60S
7	Vita electrica		≥10000 circuitus
8	Mechanica Vita		≥100000 circuitus
9	Temperature operating		-25~85℃
10	Operating Frequency		Electrical: XV circuitus Mechanica: LX circuitus
11	Vibratio Probatur		Vibratio Frequency :10~55HZ; Amplitude : 1.5 mm. Tres directiones: 1H *
12	Facultates vendidit: Plus quam LXXX% de parte baptizati solida operietur		Temperature vendendi : 235± 5℃ Tempus baptizat: 2~3S
13	Solder Caloris Resistentia		Intingere solidamentum: 260±5℃ 5±1S Manuale solidamentum: 300±5℃ 2~3S
14	Salus Approvals		UL、CSA、CQC
15	Tempestas Test		Ambiens Temperature :20±5℃ Relativum Umor: 65±5% RH Pressura aeris: LXXXVI ~ 106KPa
