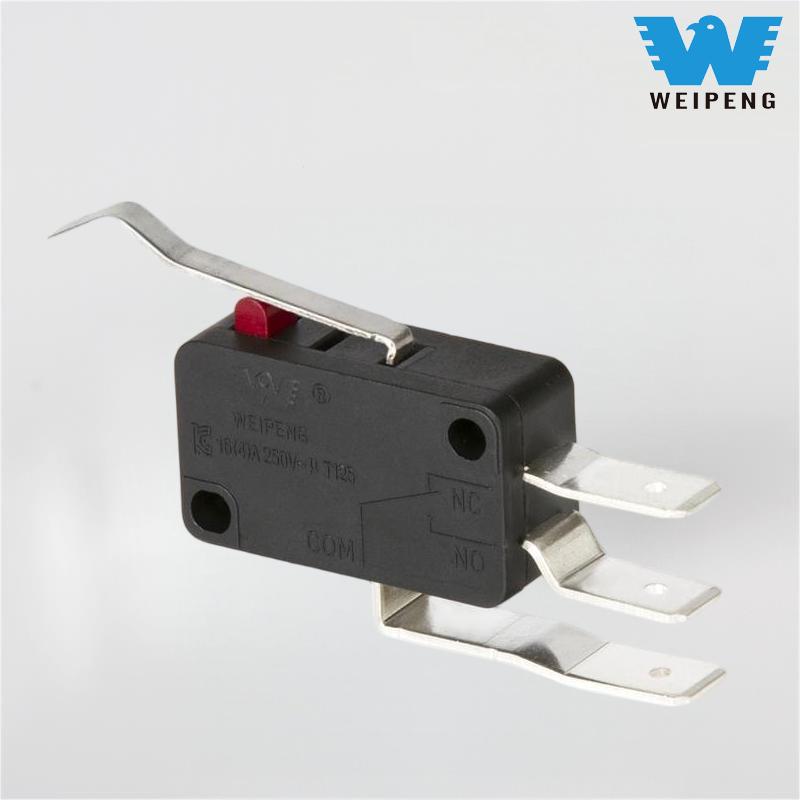

Weipeng HK-XIV parva Travel Limit Micro Switch

Ut accumsan exemplar de Yueqing Tongda Wire Electric Factory microform series, Weipeng HK-14 Small Travel Limit Microform features "alta sensibilitas, ultra-longam vitam, et multi-scenario aptabilitas" pro core utilitates. Integrata societas XXXV annorum peritia fabricandi, facta est clavis moderaminis componentis in adjumenta domestica, electronica automativa, automationis industriae, et in aliis agris, propter minimam contactum hiatum et celerem actionem mechanismum. Eius effectus et commendatio certificata est per multiplices Instituta auctoritativas per orbem terrarum, obtinens suam amet positionem in foro iussisti.

Model:HK-14-16AP-687

Mitte Inquisitionem

depictio producti

WEIPEG® est ducensWeipeng HK-XIV parva Travel Limit Micro Switch artifices, praebitores et exportatores.

Microform SWITCH PB

Product Overview

HK‑14 est minima minima parvarum rerum summarum operatio, valde responsiva et certa in contactibus faciendis et frangendis, ad insignem detectionem et temperantiam in adjumenta, potestate industriae, electronicis autocinetis, instrumentorum potentiarum aliisque instrumentis apta.

Key Features

- Foedus consilium, actio sensitiva, et operatio stabilis

- Stabilis electrica perficiendi cum fortis onus-afferentem facultatem

- Longae vitae mechanicae et electricae, diuturnitatis optimae

- Multiplex terminatio et vectis optiones, facilem institutionem

- Obsequium cum pluribus internationalibus salutis signis, qualitatem praestandi

Typical Applications

Late usus est in instrumento moderandi, limites industriae virgas, partes autocineticae, instrumenta potentiae, et in positione detectionis et salutis activae pro variis instrumentis et instrumentis.

Microform Parameter SWITCH PB (specification)

Technical Characteres switch:
ITEM	Technical Parameter		Precium
1	Electrical Rating		5(2)A/10A/16(3)A/21(8)A 250VAC
2	Contactus Resistentia		≤30mΩ valorem initial
3	Nulla Resistentia		≥100MΩ (500VDC)
4	Dielectric Voltage	inter non-connexa terminales	1000V/0.5mA/60S
		Inter terminals et metallum artus	3000V/0.5mA/60S
5	Vita electrica		≥50000 circuitus
6	Mechanica vitae		≥1000000 circuitus
7	Temperature operating		-25~ 125℃
8	Operating Frequency		electrica :15 circuitus Mechanica: LX circuitus
9	Vibratio Probatur		Vibratio Frequentia: 10~55HZ; Amplitude : 1.5 mm. Tres directiones: 1H
10	Facultates vendidit: Plus quam LXXX% de parte baptizati solida operietur		Temperature vendendi : 235± 5℃ Tempus baptizat: 2~3S
11	Solder Caloris Resistentia		Intingere solidamentum: 260±5℃ 5±1S Manuale solidamentum: 300±5℃ 2~3S
12	Salus Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Tempestas Test		Ambiens Temperature :20±5℃ Relativum Umor: 65±5% RH Pressura aeris: LXXXVI ~ 106KPa

Microform switch Feature et Application

1.Sate, certa basic switch
2. Pulchra species, stricta contiguatio. Charactenistica: parva contactus dlearance, actio velox, magna sensibilitas et parva 3. peregrinatio operans.
4.Long vitam, princeps reliablity
5.A varietate contactus terminales
6.A varnety temperatus gradus
7.A variis vectibus
8.Adopt themosetting plastic vel themoplastic
9. Late usus in home apliane elecroninc apparatusautomatic apparatus communicationis equioncar electron, apparatus et 10. instrumentum motus electrici etc.
