LACRYMIS Factory Direct Sale Micro Switch

WEIPEG Factory Direct Sale Micro Switch ut repraesentativum productum Tongda LAMENTATIO quae involvit integrationem core standardisationis et customizationis. Ut opificem et ocimi, nucleum designandi principium durabilis callidi appliance reset switch quae a nostra officina facta est "stabilitas, constantia, et compatibilitas missionis". Rating: 5A 250VAC Temperature Range: -40°C~+125°C IP Code: IP40 Dimensio: 19.8*10.6*6.4mm Approbatio UL, EEC, CSA, CE, VDE

Model:HK-04G-LT-230

Mitte Inquisitionem

depictio producti

WEIPEG® est ducensWEIPING Factory Direct Sale Micro Switch fabricatores, praebitores et exportatores.

Microform SWITCH PBIntroductio

Diversa a conventionali magna-currentis switch productio fluunt, eius fabricatio in micro-praecisione conventus tendit. Processus praecisionem adhibet pro vectibus componentibus, glutino vacuo pro punctis contactu, et multi-scaena senescentes ante partum experientes. Stricta patientia mechanica probatio cautiones super 1 decies centena milia cyclos mechanicos mutandi, humilis rate defectus et batch perficientur constantes, vexillum productionis massae congruens electronicarum congregationis componentis.

Yueqing Tongda praebet plenam seriem HK-04G-L variantes cum vecte customisable figuras, rationes terminales et figuras plumbeas. Omnes producti UL, CSA, VDE, Enec et CE certificationes globalis tutantur. Optimized pro stabili batch copia ac facile PCB solidatorium, quod perfecte congruit nativus parvis-electronicis componentibus, necessitates cum librato pretio et diuturnitate accedens.

Microform SWITCH PBApplicationem

Virgulae parvae late adhibitae et certae in effectu, maxime applicatae;

- Familiares adjumenta: armarium luminum, portae oven proin seras, machina lavatio virgas operculi, et timers toaster.

- Industriae instrumenti: gravia-officii exempla apta vectoriis cingulis, machinis, et tabulatis moderandis (dustproof et humoris-probationis).

- Automotivum campus: windshield wipers, ostio-ajar indicibus - potest sustineri tremor et extremae temperaturae.

- Electronic machinis: minimae permutationes pro remotis dominiis et lusus moderatoris (responsivum et diuturnum).

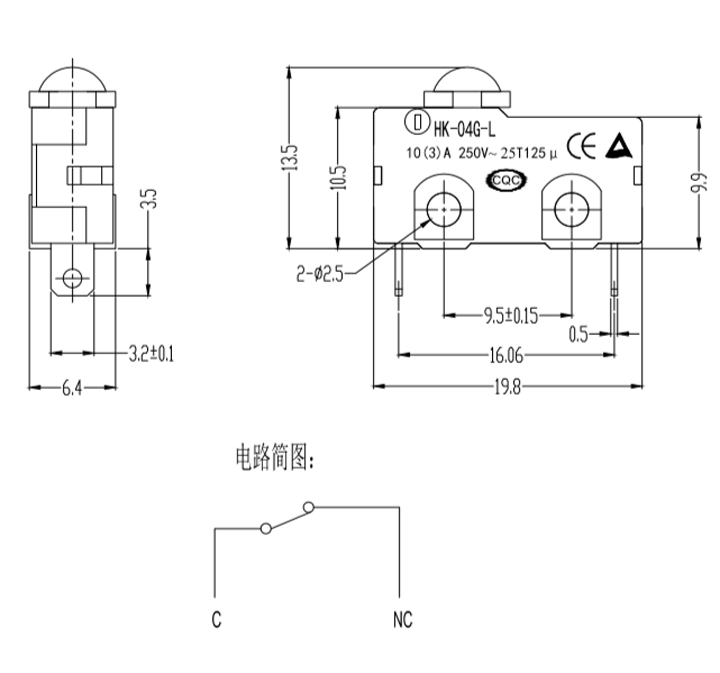

Microform SWITCH PB Specification

Technical Characteres switch:
ITEM	Technical Parameter		Precium
1	Electrical Rating		5(2)A 125V/250VAC 10(3)125V/250VAC
2	Contactus Resistentia		≤50mΩ valorem initialem
3	Nulla Resistentia		≥100MΩ (500VDC)
4	Dielectric Voltage	inter non-connexa terminales	500V/0.5mA/60S
		Inter terminals et metallum artus	1500V/0.5mA/60S
5	Vita electrica		≥10000 circuitus
6	Mechanica Vita		≥100000 circuitus
7	Temperature operating		-25~ 125℃
8	Operating Frequency		Electrical: XV circuitus Mechanica: LX circuitus
9	Vibratio Probatur		Vibratio Frequency :10~55HZ; Amplitude : 1.5 mm. Tres directiones: 1H
10	Facultates vendidit: Plus quam LXXX% de parte baptizati solida operietur		Temperature : 235±5℃ Tempus baptizat: 2~3S
11	Solder Caloris Resistentia		Intingere solidamentum: 260±5℃ 5±1S Manuale solidamentum: 300±5℃ 2~3S
12	Salus Approvals		UL、CSA、VDE、ENEC、CE
13	Tempestas test		Ambiens Temperature :20±5℃ Relativum Umor: 65±5% RH Air Impetus: 86~ 106KPa
