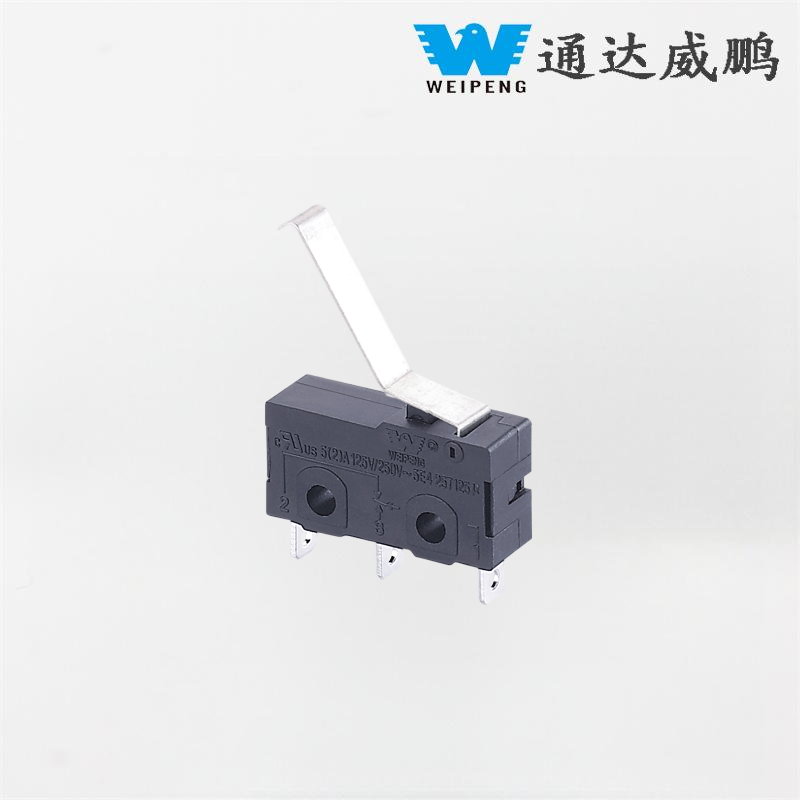

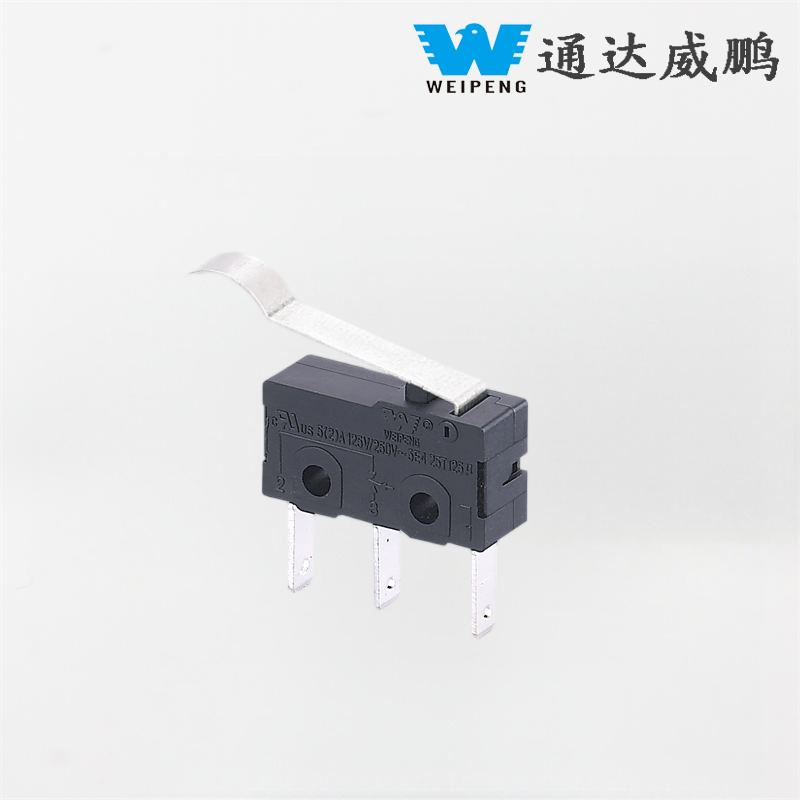

Weipeng 5A summus temperatus repugnans Micro Cie pro Parvus Appliances

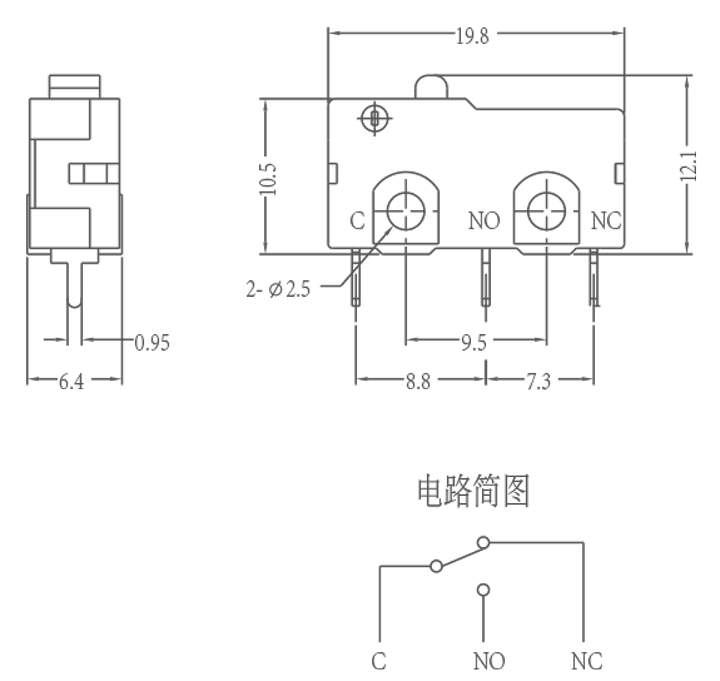

Weipeng 5A High-Temperature Resistant Micro Switch for Small Appliances as a representative product of Tongda WEIPENG that embodies the integration of core standardization and customization. Ut opificem et ocimi, nucleum designandi principium durabilis callidi appliance reset switch quae a nostra officina facta est "stabilitas, constantia, et compatibilitas missionis". Rating: 5A 250VAC Temperature Range: -40°C~+125°C IP Code: IP40 Dimensio: 19.8*10.6*6.4mm Approbatio UL, EEC, CSA, CE, VDE

Model:HK-04G-LZ-021

Mitte Inquisitionem

depictio producti

WEIPEG® est ducensWeipeng 5A Excelsus Temperature Repugnans Micro Switch pro parvis Adjumenta fabricantibus, praebitoribus et exportatoribus.

Microform SWITCH PBIntroductio

HK-04G-L medium-sensitivum practicum vectis microform in electronicis industriae componentibus late cognoscitur. Cum expolito consilio structurae ac stabili operatione perficiendi, ambitum diurnum solvens necessitates moderandi, ut neque virgas parvas ultra-sensitivas neque altae currentes virgas graves officiorum perfecte operire possint. Sumptus-efficax propositi componentis est communis emptoribus et instrumentis fabricarum mole faventium.

Adoptatione curvam vectis structuram integratam, lineamenta HK-04G-L moderata instantis peregrinationes et feedback mollis felis. Dissimiles nimis sensibiles virgas quae ex levi vibratione mendose trigger, hoc exemplum stabilem actionem servat cum responsionis mutationibus perspicuis. Eius altiore habitationi minuatur ordinatio ad institutionem inclusam intra casingas artas fabricandas destinatur, satis spatium internum relinquens aliis partibus ambitus et dispositionem wiring.

Microform SWITCH PBApplicationem

Virgulae parvae late adhibentur et certae in re ipsa, maxime applicatae;

- Familiares adjumenta: armarium luminum, portae oven proin seras, machina lavatio virgas operculi, et timers toaster.

- Industriae instrumenti: gravia-officii exempla apta vectoriis cingulis, machinis, et tabulatis moderandis (dustproof et humoris-probationis).

- Automotivum campus: windshield wipers, ostio-ajar indicibus - potest sustineri tremor et extremae temperaturae.

- Electronic machinis: minimae permutationes pro remotis dominiis et lusus moderatoris (responsivum et diuturnum).

Microform SWITCH PB Specification

Technical Characteres switch:
ITEM	Technical Parameter		Precium
1	Electrical Rating		5(2)A 125V/250VAC 10(3)125V/250VAC
2	Contactus Resistentia		≤50mΩ valorem initialem
3	Nulla Resistentia		≥100MΩ (500VDC)
4	Dielectric Voltage	inter non-connexa terminales	500V/0.5mA/60S
		Inter terminals et metallum artus	1500V/0.5mA/60S
5	Vita electrica		≥10000 circuitus
6	Mechanica Vita		≥100000 circuitus
7	Temperature operating		-25~ 125℃
8	Operating Frequency		Electrical: XV circuitus Mechanica: LX circuitus
9	Vibratio Probatur		Vibratio Frequentia :10~55HZ; Amplitude : 1.5 mm. Tres directiones: 1H
10	Facultates vendidit: Plus quam LXXX% de parte baptizati solida operietur		Temperature : 235±5℃ Tempus baptizat: 2~3S
11	Solarium Caloris Resistentia		Intingere solidamentum: 260±5℃ 5±1S Manuale solidamentum: 300±5℃ 2~3S
12	Salus Approvals		UL、CSA、VDE、ENEC、CE
13	Tempestas test		Ambiens Temperature :20±5℃ Relativum Umor: 65±5% RH Air Impetus: 86~ 106KPa
