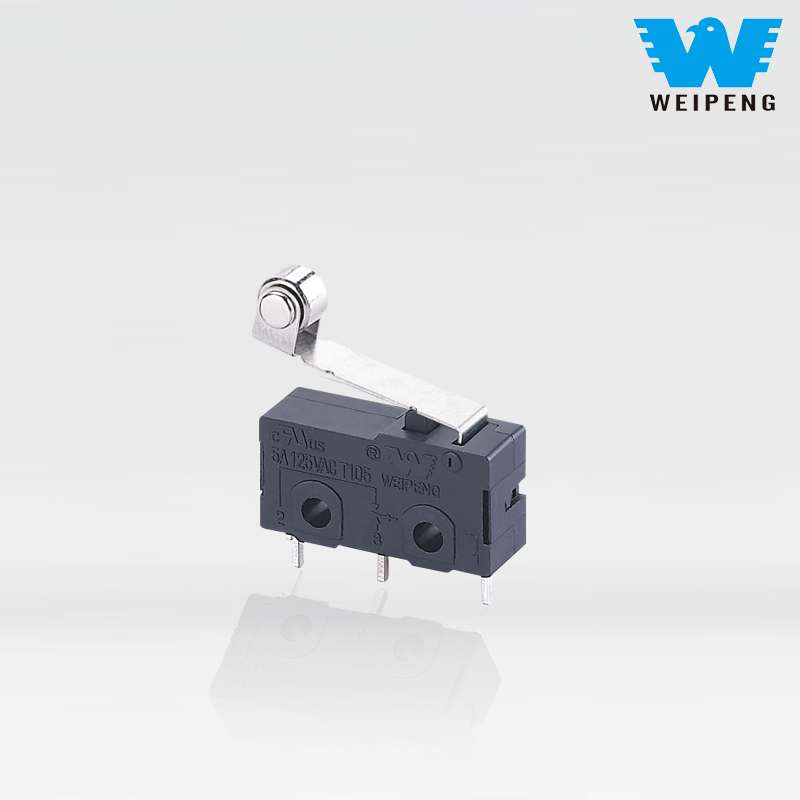

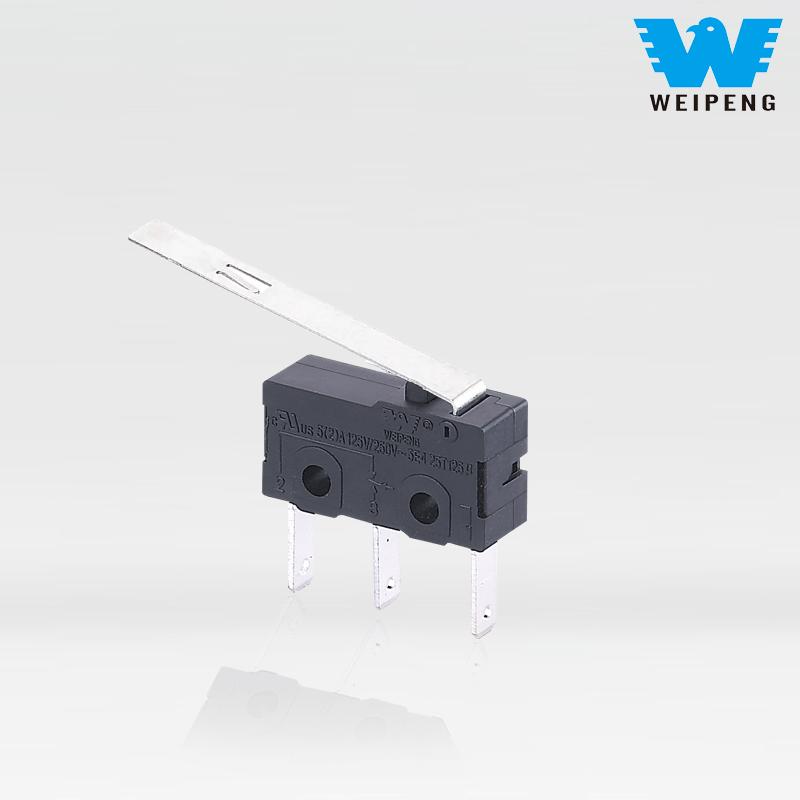

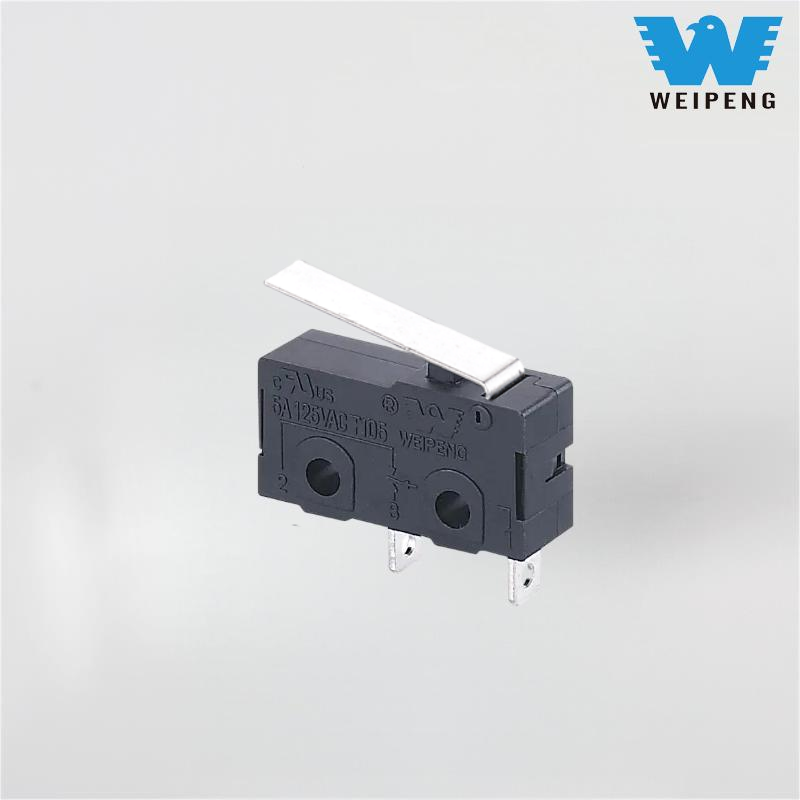

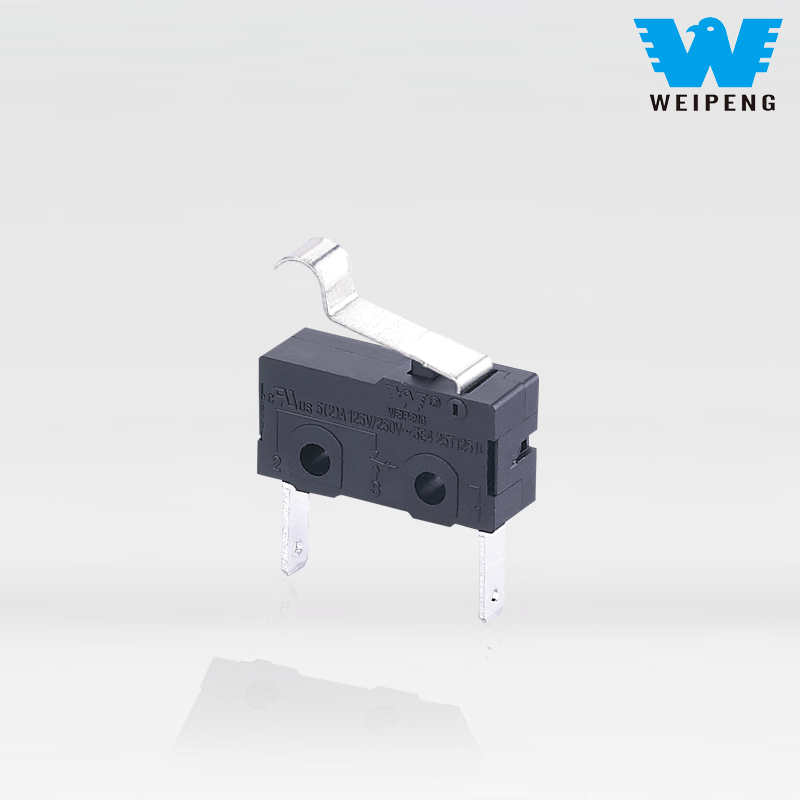

Weipeng 3-Leg Cibus Processor Soy Lac factoris Micro Switch 5A 125V

Weipeng 3-Leg Cibus Processus Soy Milk Factor Micro SWITCH 5A 125V tamquam productum repraesentativum Tongda LAMENTATIO quae integrationem core standardizationis et cssmationis involvit. Ut opificem et ocimi, nucleum designandi principium durabilis callidi appliance reset switch quae a nostra officina facta est "stabilitas, constantia, et compatibilitas missionis". Rating: 5A 250VAC Temperature Range: -40°C~+125°C IP Code: IP40 Dimensio: 19.8*10.6*6.4mm Approbatio UL, EEC, CSA, CE, VDE

Model:HK-04G-LZ-120

Mitte Inquisitionem

depictio producti

WEIPEG® est ducensWeipeng 3-Leg Cibus Processor Soy Milk Factor Micro Switch 5A 125V Fabricator, Praebitor et exportator.

Microform SWITCH PBIntroductio

HK-04G-Lcore utilitas in sua agendi mechanism frangeretur. Contactus lapsus dissimilis qui repercutit vel fatigare potest, haec commutatio vecte onusto utitur qui ab uno loco ad alterum ilico frangitur. Haec "snap" periculum arcendi (stellae) tollit et signum mundumque omni tempore efficit.

Applicationes typicas (Ubi eam reperies?)

Exemplar hoc intra 3D impressores invenies in fine deprehensionis finem, in globulis muribus pro gamers, et in portae autocineti pessuli. Eius humilis aestimatio currentis (plerumque sub 5A) perficit in circulis logicae gradus (PCBs) quam instrumenta potentia gravia.

Microform SWITCH PBApplicationem

Virgulae parvae late adhibentur et certae in re ipsa, maxime applicatae;

Domus Adjumentum: Door / modus sentiendi pro microwaves, machinis lavare, rice cookers

Industrial Equipment: Automated lineae, instrumenta potentia, actus sensoris

Electronic Devices: Instrumenta, potestas tabularum potestas, armorum securitas

Microform SWITCH PB Specification

Technical Characteres switch:
ITEM	Technical Parameter		Precium
1	Electrical Rating		5(2)A 125V/250VAC 10(3)125V/250VAC
2	Contactus Resistentia		≤50mΩ valorem initialem
3	Nulla Resistentia		≥100MΩ (500VDC)
4	Dielectric Voltage	inter non-connexa terminales	500V/0.5mA/60S
		Inter terminals et metallum artus	1500V/0.5mA/60S
5	Vita electrica		≥10000 circuitus
6	Mechanica Vita		≥100000 circuitus
7	Temperature operating		-25~ 125℃
8	Operating Frequency		Electrical: XV circuitus Mechanica: LX circuitus
9	Vibratio Probatur		Vibratio Frequentia :10~55HZ; Amplitude : 1.5 mm. Tres directiones: 1H
10	Facultates vendidit: Plus quam LXXX% de parte baptizati solida operietur		Temperature : 235±5℃ Tempus baptizat: 2~3S
11	Solarium Caloris Resistentia		Intingere solidamentum: 260±5℃ 5±1S Manuale solidamentum: 300±5℃ 2~3S
12	Salus Approvals		UL、CSA、VDE、ENEC、CE
13	Tempestas test		Ambiens Temperature :20±5℃ Relativum Umor: 65±5% RH Air Impetus: 86~ 106KPa
