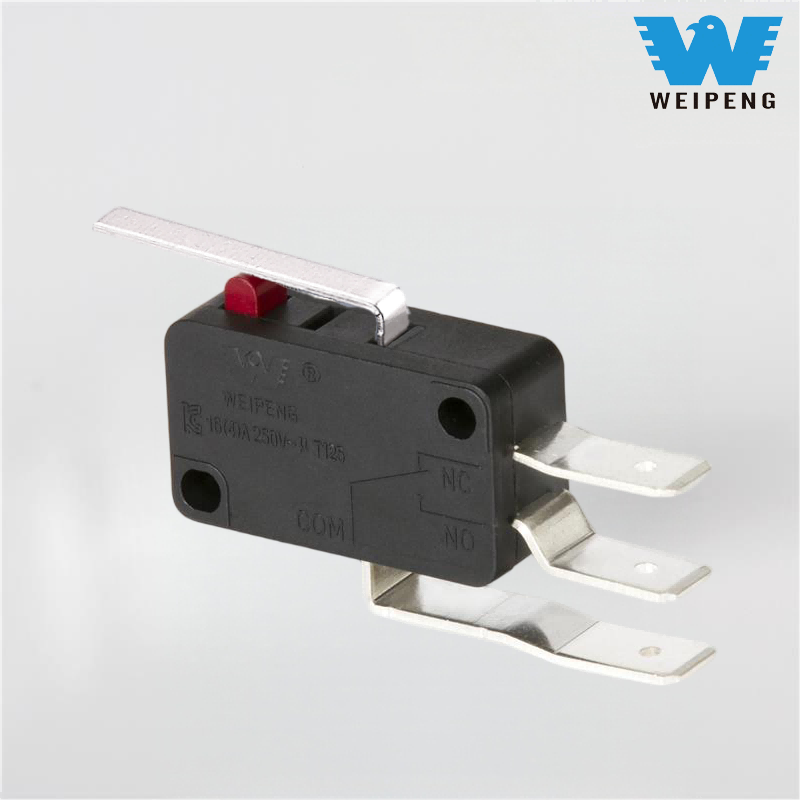

Weipeng 16A 250V Electronic Component Lever Micro Switch

Sicut Probatio exemplar of Yueqing Tongda Wire Electric Factory microform series, Weipeng 16A 250V Electronic Component Lever Microform Commutatio features "sensibilitas, ultra-longae vitae, et multi-scenario aptabilitas" pro nucleo suo commoda. Integrata societas XXXV annorum peritia fabricandi, facta est clavis moderaminis componentis in adjumenta domestica, electronica automativa, automationis industriae, et in aliis agris, propter minimam contactum hiatum et celerem actionem mechanismum. Eius effectus et commendatio certificata est per multiplices Instituta auctoritativas per orbem terrarum, obtinens suam amet positionem in foro iussisti.

Model:HK-14-16AP-686

Mitte Inquisitionem

depictio producti

WEIPEG® est ducensWeipeng 16A 250V Electronic Component Lever Micro Switch artifices, praebitores et exportatores.

Microform SWITCH PB

Typical Application missiones

Series HK-14, cum alta aptabilitate, late in nucleo machinarum per varios campos usus est;

Domum Adjumentum: Proin porta control, lavatio apparatus programmatis control, clibanus temperatus imperium triggers, aqua dispensator virgas;

Industriae Automation: Iter modus detectionis, TRADUCTOR positionis, machinae parvae subitis sistendi machinas, instrumenta experimenta triggers signum;

Automotive Electronics: Car ostium clausum detectio, sedes temperatio limites virgas, trunci virgas, potestas fenestra imperium;

Instrumenta potentia: Drill et angulus MOLARIS committitur/statur virgas, instrumentum onerare tutelae triggers;

Instrumenta et Metra: Instrumenta tesserae medicae, instrumentum mensurae virgas limites, instrumentum communicationis insigne mutandi.

Institutionem et Ritus pretium

Cum inaugurari debet, transitum in superficie plana conscendi debet et cum fullonibus vel vernis fullonibus alligatum ne malfunction aut damnum in superficiebus inaequalibus causatur. Exemplaria elige in ambitu nixa: ob condiciones humidas vel pulverulentas, commendatur versioni consueta signatae uti ad tutelam augendam. Noli applicare oleum lubricationis ad bullam vel actum ne contactum haerentem, defectionem functionis, vel etiam burnoutem adhibeas. In repositione, productum in sicco, ventilato in area, a pluviis vel nivibus custoditum, custodi, et caliditatem et humiditatem quae canus componentis causat, procurans fructus pristinam observantiam retinet.

Microform Parameter SWITCH PB (specification)

Technical Characteres switch:
ITEM	Technical Parameter		Precium
1	Electrical Rating		5(2)A/10A/16(3)A/21(8)A 250VAC
2	Contactus Resistentia		≤30mΩ valorem initial
3	Nulla Resistentia		≥100MΩ (500VDC)
4	Dielectric Voltage	inter non-connexa terminales	1000V/0.5mA/60S
		Inter terminals et metallum artus	3000V/0.5mA/60S
5	Vita electrica		≥50000 circuitus
6	Mechanica vitae		≥1000000 circuitus
7	Temperature operating		-25~ 125℃
8	Operating Frequency		electrica :15 circuitus Mechanica: LX circuitus
9	Vibratio Probatur		Vibratio Frequentia: 10~55HZ; Amplitude : 1.5 mm. Tres directiones: 1H
10	Facultates vendidit: Plus quam LXXX% de parte baptizati solida operietur		Temperature vendendi : 235± 5℃ Tempus baptizat: 2~3S
11	Solder Caloris Resistentia		Intingere solidamentum: 260±5℃ 5±1S Manuale solidamentum: 300±5℃ 2~3S
12	Salus Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Tempestas Test		Ambiens Temperature :20±5℃ Relativum Umor: 65±5% RH Pressura aeris: LXXXVI ~ 106KPa

Microform switch Feature et Application

1.Sate, certa basic switch
2. Pulchra species, stricta contiguatio. Charactenistica: parva contactus dlearance, actio velox, magna sensibilitas et parva 3. peregrinatio operans.
4.Long vitam, princeps reliablity
5.A varietate contactus terminales
6.A varnety temperatus gradus
7.A variis vectibus
8.Adopt themosetting plastic vel themoplastic
9. Late usus in home apliane elecroninc apparatusautomatic apparatus communicationis equioncar electron, apparatus et 10. instrumentum motus electrici etc.

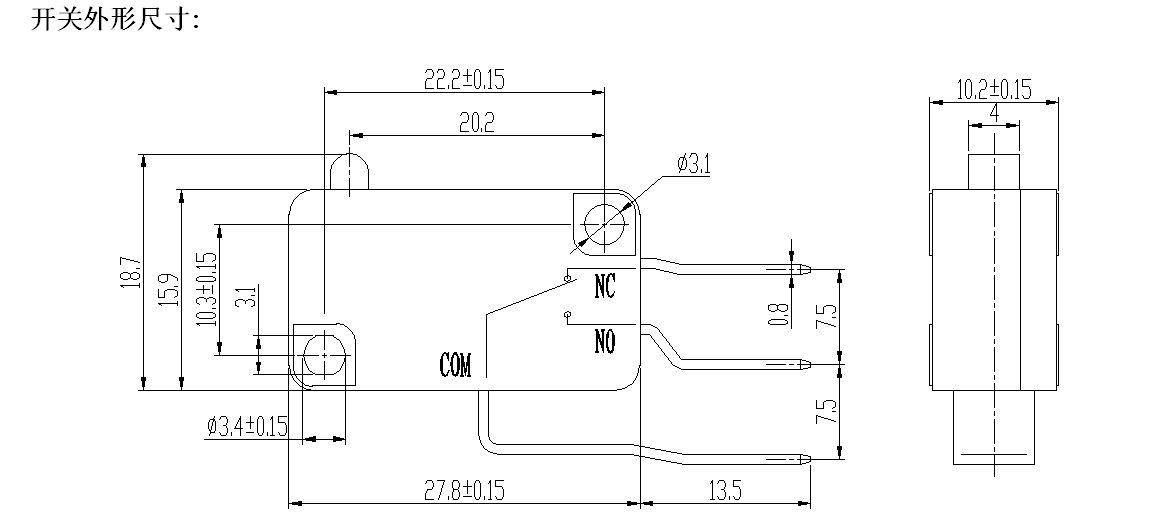

Microform SWITCH PB Details
