IMPERVIUS Pulvis-Probatur summus temperatus repugnans IP67 Micro SWITCH PB

Ut core producto per Yueqing Tongda Cable Factory evolvit pro specialibus ambitibus ut humiditas, pulvis, et condiciones velit, in FSK XVIII series IMPERVIUS virgas gloriantur 'IP67 princeps tutelae et stabilis electricae effectus' ut eorum commoda key. Loventes XXXV annos peritia fabricandi fabricandi, varias componunt modos excitatos, inclusos scopulorum et globulorum genera, et late utuntur in velitis accendendis, coquinae adjumenta, electronica autocineta, machinamenta emundandi industriales, aliosque missiones, quibus certam electionem faciunt in ambitu moderandi in asperis ambitibus.

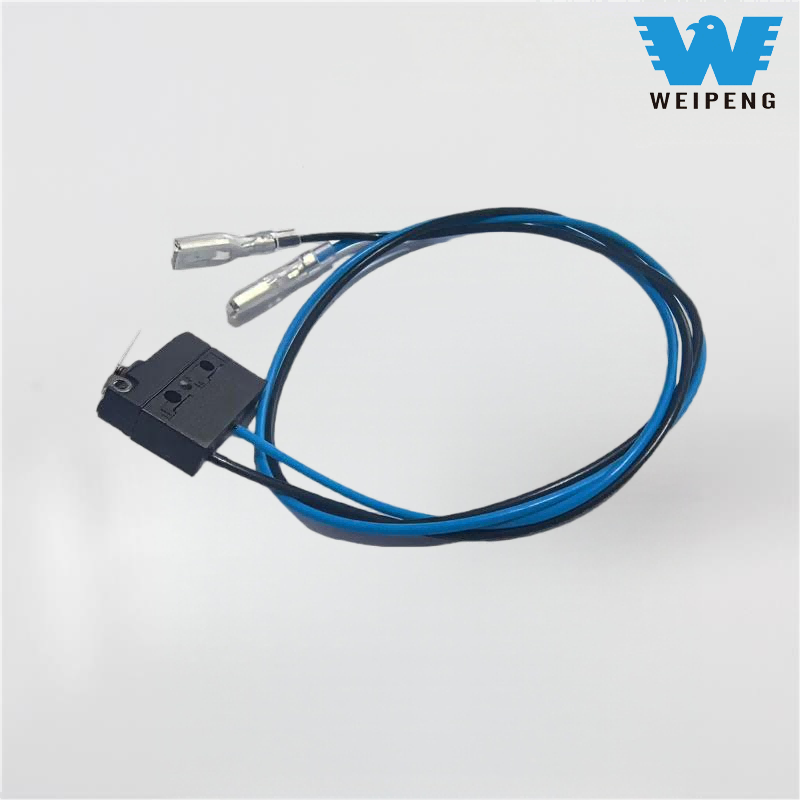

Model:FSK-18-D-002

Mitte Inquisitionem

depictio producti

WEIPENG®Est plumbuming IMPERVIUS Pulvis-Probatur summus temperatus repugnans IP67 Micro SWITCH PBoratrs et exportator.

IMPERVIUS Micro SWITCH PB Introduction

IMPERVIUS Micro SWITCH PBFeatureetApplicatio

Characteres IMPERVIUS switch maxime sequentes aspectus includunt:
IMPERVIUS effectus: IMPERVIUS switch consilium IMPERVIUS habet et intrusionem aquae et umoris sustinere potest. Solent speciali signatione structurae et materiae immediatae uti ad certas operationes in udo ambitu obtinendas.

Technical Characteres switch:
ITEM	Technical Parameter		Precium
1	Electrical Rating		0.1A 5(2)A 10(3)A 125/250VAC 0.1A 5A 36VDC
2	Operans Force		1.0~2.5N
3	Contactus Resistentia		≤300mΩ
4	Nulla Resistentia		≥100MΩ (500VDC)
5	Dielectric Voltage	inter non-connexa terminales	500V/0.5mA/60S
		Inter terminals et metallum artus	1500V/0.5mA/60S
6	Vita electrica		≥50000 circuitus
7	Mechanica Vita		≥100000 circuitus
8	Operating Temperature		-25~105℃
9	Operating Frequency		Electrical: XV circuitus Mechanica: LX circuitus
10	Vibratio Probatur		Vibratio Frequency :10~55HZ; Amplitude : 1.5 mm. Tres directiones: 1H
11	Facultates vendidit: Plus quam LXXX% de parte baptizati solida operietur		Temperature vendendi : 235± 5℃ Tempus baptizat: 2~3S
12	Solder Caloris Resistentia		Intingere solidamentum: 260±5℃ 5±1S Manuale solidamentum: 300±5℃ 2~3S
13	Tempestas test		Ambiens Temperature :20±5℃ Relativum Umor: 65±5% RH Pressura aeris: LXXXVI ~ 106KPa
