Aqua calefacientis Micro SWITCH V7-1Z29E9 Honeywell replacement

WEIPENG® se fundavit in summo ordine aquae calefacientis microform fabrica et supplementum in Sinis, praebens qualitatem Aquae Heater Micro Switch V7-1Z29E9 Honeywell solutiones per multos annos substituendi. Scias quiescere potes aquam nativus Heater Micro Cie a nobis emere.

Model:HK-14-1X-10A-502

Mitte Inquisitionem

depictio producti

WEIPENG® est aqua principalis Aquae Heater Micro Switch V7-1Z29E9 Honeywell Repositorum artifices, praebitores et exportatores.

Tongda Micro SWITCH PB

Aqua calefacientis microform switch est quaedam pressionis switch actuosae ieiunium, etiam ut sensitivum transitum notum. Eius principium operandi est quod vis mechanica externa vim exercet in actione calamo per elementum transmissionis (acum, puga, vectem, cylindrum, etc.), et actionem momentaneam generat post industriam ad punctum criticum, ita ut contactum movens in fine actionis calamus cito conexum vel disiungitur a contactu stationario. Cum vis elementi tradendi sublata, actio calamus vim contrariam actionis producit. Cum iter transmissionis elementum contrarium attingit actionem criticam calami, actio vicissim completur in instanti.

Microform Tongda SWITCH PB (specification)

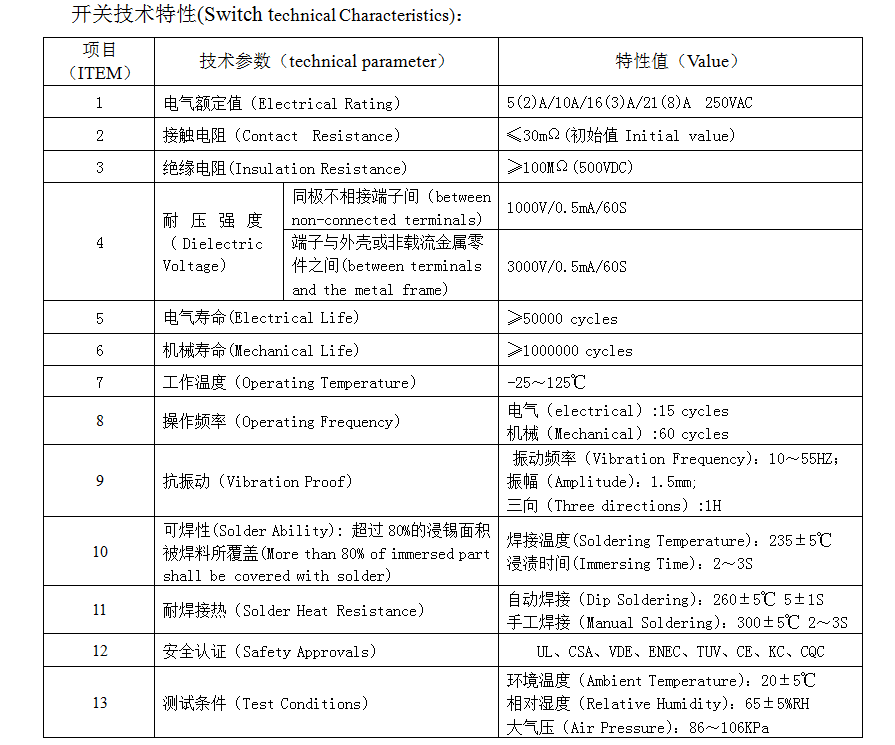

Technical Characteres switch:
ITEM	Technical Parameter		Precium
1	Electrical Rating		5（2)A/10A/16(3)A/21（8）A 250VAC
2	Contactus Resistentia		≤30mΩ valorem initial
3	Nulla Resistentia		≥100MΩ (500VDC)
4	Dielectric Voltage	inter non-connexa terminales	1000V/0.5mA/60S
		Inter terminals et metallum artus	3000V/0.5mA/60S
5	Vita electrica		≥50000 circuitus
6	Mechanica Vita		≥1000000 circuitus
7	Temperature operating		-25~ 125℃
8	Operating Frequency		electrica :15 circuitus Mechanica: LX circuitus
9	Vibratio Probatur		Vibratio Frequentia: 10~55HZ; Amplitude : 1.5 mm. Tres directiones: 1H
10	Facultates vendidit: Plus quam LXXX% de parte baptizati solida operietur		Temperature vendendi : 235± 5℃ Tempus baptizat: 2~3S
11	Solder Caloris Resistentia		Intingere solidamentum: 260±5℃ 5±1S Manuale solidamentum: 300±5℃ 2~3S
12	Salus Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Tempestas test		Ambiens Temperature :20±5℃ Relativum Umor: 65±5% RH Pressura aeris: LXXXVI ~ 106KPa

Tongda Micro SWITCH Feature ac Application

1.Sate, certa basic switch
2. Pulchra species, stricta contiguatio. Charactenistic: parva contactu dlearance, actio velox, magna sensibilitas et parva 3. peregrinatio operans.
4.Long vitam, princeps reliablity
5.A varietate contactus terminales
6.A varnety temperatus gradus
7.A variis vectibus
8.Adopt themosetting plastic vel themoplastic
9. Late usus in home apliane elecroninc apparatusautomatic apparatus communicationis equioncar electron, apparatus et 10. instrumentum motus electrici etc.

Tongda Micro SWITCH Details
