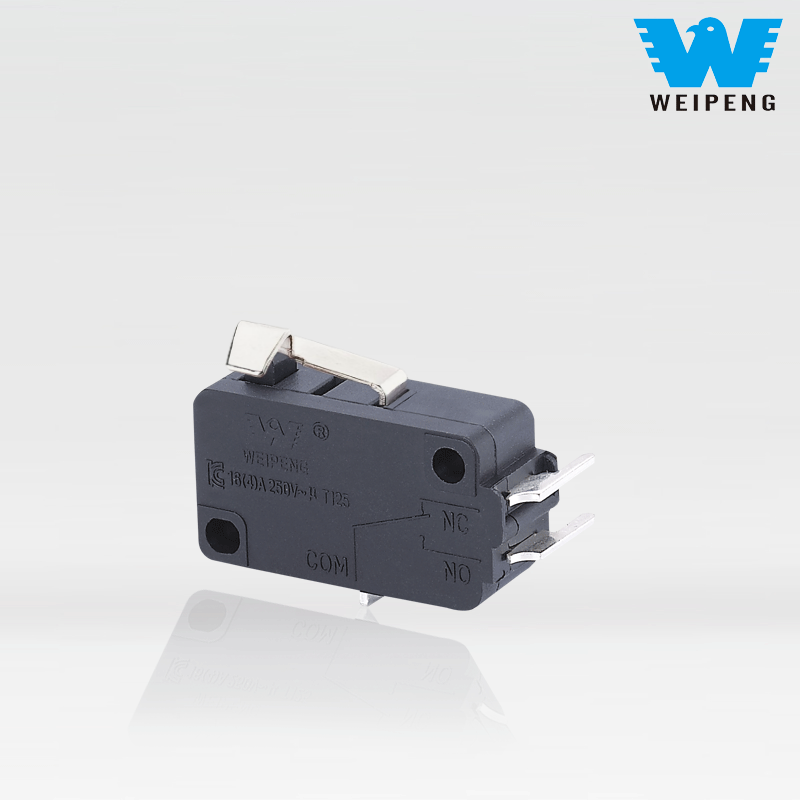

Tres acus magna Micro Cie cum manubrio

Ut accumsan exemplar de Yueqing Tongda Wire Electric Factory microform series, 1Tres acus ingentes Micro Cie cum features manubrium "alta sensibilitas, ultra-longam vitam, et multi-scenario aptabilitas" pro core utilitates eius. Integrata societas XXXV annorum peritia fabricandi, facta est clavis moderaminis componentis in adjumenta domestica, electronica automativa, automationis industriae, et in aliis agris, propter minimam contactum hiatum et celerem actionem mechanismum.

Model:HK-14-10A-304

Mitte Inquisitionem

depictio producti

WEIPEG® est ducensTres acus magna Micro Cie cum manubrio artifices, praebitores et exportatores.

Microform SWITCH PB

Commutatio HK-XIV, evolvit et producit independenter ab Yueqing Tongda Cable Factory sub notam WEIPENG, est magna parva commutatio pro medio foro medio ad summum finem posita. Propter subtilitatem sistens designationem, qualitatem strictam, et aptabilitatem versatilem, praecipuum munus agit in variis missionibus moderandis. Dissimiles conventionales commutationes productorum, singularem utilitatum competitive in stabilitate et aptabilitate elaboravit, faciens illud productum praelatum in industria quae practicam et professionalismum coniungit.

HK-XIV switch perfecit upgraded optimiizationis in contactu technologiae. Contactus stannum argenteum peculiari membrana tractatur, quae non solum conductivity et resistentiam auget, sed etiam efficaciter oxidationis et corrosioni resistit, quo minus communes quaestiones inter se cohaerent sicut contactus haerens et pauper. Consignatae structurae consilio coniuncta, pulverem, umorem, aliasque immunditias efficaciter obstruere potest, adhuc stabilitatem globorum in ambitibus implicatis et minuendo rate defectum procurans.

Microform Parameter SWITCH PB (specification)

Technical Characteres switch:
ITEM	Technical Parameter		Precium
1	Electrical Rating		5(2)A/10A/16(3)A/21(8)A 250VAC
2	Contactus Resistentia		≤30mΩ valorem initial
3	Nulla Resistentia		≥100MΩ (500VDC)
4	Dielectric Voltage	inter non-connexa terminales	1000V/0.5mA/60S
		Inter terminals et metallum artus	3000V/0.5mA/60S
5	Vita electrica		≥50000 circuitus
6	Mechanica Vita		≥1000000 circuitus
7	Temperature operating		-25~ 125℃
8	Operating Frequency		electrica :15 circuitus Mechanica: LX circuitus
9	Vibratio Probatur		Vibratio Frequentia: 10~55HZ; Amplitude : 1.5 mm. Tres directiones: 1H
10	Facultates vendidit: Plus quam LXXX% de parte baptizati solida operietur		Temperature vendendi : 235± 5℃ Tempus baptizat: 2~3S
11	Solder Caloris Resistentia		Intingere solidamentum: 260±5℃ 5±1S Manuale solidamentum: 300±5℃ 2~3S
12	Salus Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Tempestas test		Ambiens Temperature :20±5℃ Relativum Umor: 65±5% RH Pressura aeris: LXXXVI ~ 106KPa

Microform switch Feature et Application

1.Sate, certa basic switch
2. Pulchra species, stricta contiguatio. Charactenistic: parva contactu dlearance, actio velox, magna sensibilitas et parva 3. peregrinatio operans.
4.Long vitam, princeps reliablity
5.A varietate contactus terminales
6.A varnety temperatus gradus
7.A variis vectibus
8.Adopt themosetting plastic vel themoplastic
9. Late usus in home apliane elecroninc apparatusautomatic apparatus communicationis equioncar electron, apparatus et 10. instrumentum motus electrici etc.

Microform SWITCH PB Details
