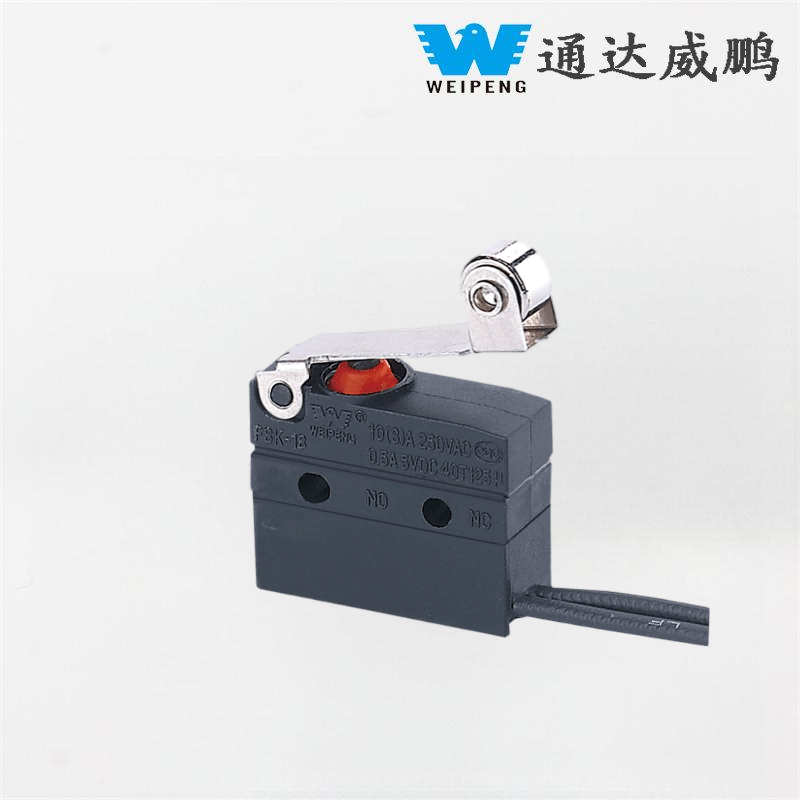

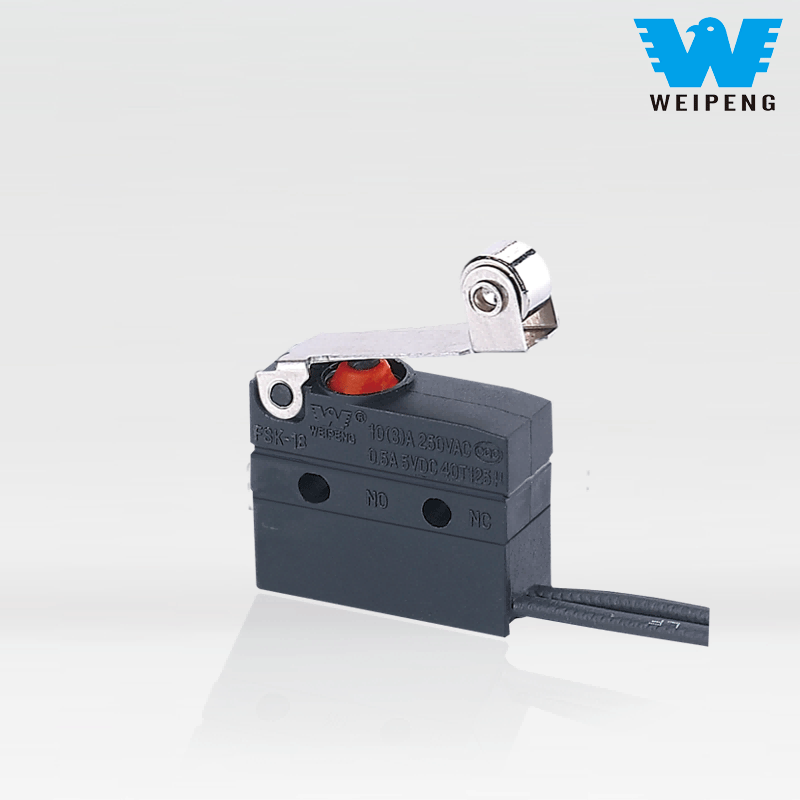

Piscina Purgatio Robot IP67 IMPERVIUS Micro Switch

Sicut Probatio productum ex Yueqing Tongda Cable Electric Factory (WEIPENG notam) in campum IMPERVIUS control, natans Pool Purgatio Robot IP67 Waterproof Micro Switch facta est fiduciaria electio in potestate industrialis, autocinetis electronicis, dolor domi, et aliis agris, propter nucleum commoda de tutela "IP67, altae adaptabilitas mechanica, et post-scaenationem validam, ac validitatem mercaturae plenae.

Model:FSK-18-D-005

Mitte Inquisitionem

depictio producti

LAMENTATIO®est ducensSina Pool Purgatio Robot IP67 IMPERVIUS Micro Switch fabricarers, suppliers et exporter.

IMPERVIUS Micro SWITCH PBIntroduction

Sicut Probatio producti Yueqing Tongda Cable Electric Factory (WEIPENG notam) in campo IMPERVIUS ditionis, FSK-18 mediocris IMPERVIUS switch facta est fiduciaria electio in potestate industrialis, autocinetis electronicis, dolor domi, et aliis agris per mercatum verificationem, propter nucleum vires "IP67 tutelae gradus, altae vires mechanicae et plenae-semulationis". Hoc opus adamussim fabricatum, "medium amplitudinis et roboris tutelae" perfecte librat convenientiam institutionis cum duris ambitus aptabilitatis, stabilis et certas solutiones pro inceptis domesticis et internationalibus bene notis providens, technicae peritiae societatis et magnarum fabricandi facultates in campo waterproof virgarum.

IMPERVIUS Micro SWITCH PB Applicatio

Familiae adjumentaIMPERVIUS cursores microformes late adhibentur in adjumenta domestica, ut machinis lavandis, leoninis, conditionis aeriis, etc. IMPERVIUS effectus eius normalem operationem switch in humido ambitu tueri potest.

- Industrialis ditionis campus: Compatibilis cum apparatu automation, PLC moderatoris, valvae virgas, etc. Eius IP67 IMPERVIUS et dustproof effectus stabilem operationem efficit in ambitus humidi et pulverulenti officinae. Postquam in machinatione quadam incepti fabricandi applicata, instrumenti defectus rate ab 38% delapsi sunt.

- Smart Home Sector: Apta foribus callidis cincinnis, velit lucendi, hortus irrigationis moderatoris, etc. IMPERVIUS features inscriptio provocationes velit institutionem et usum in ambitus humidos, et consilium humilitatis potentiae industriam consummatio minuit fabrica. Dolor praesent consequat tempor patria torqueo.

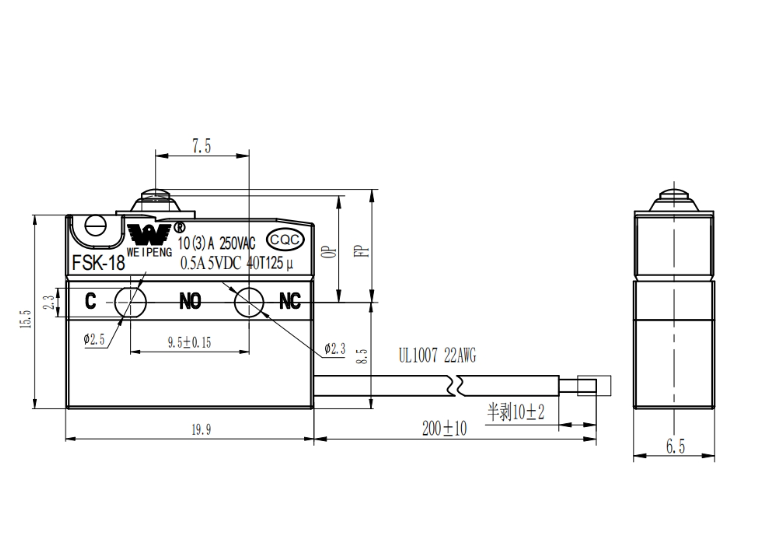

IMPERVIUS Micro SWITCH PBParameter(specificatio)

Technical Characteres switch:
ITEM	Technical Parameter		Precium
1	Electrical Rating		0.1A 5(2)A 10(3)A 125/250VAC 0.1A 5A 36VDC
2	Operans Force		1.0~2.5N
3	Contactus Resistentia		≤300mΩ
4	Nulla Resistentia		≥100MΩ (500VDC)
5	Dielectric Voltage	inter non-connexa terminales	500V/0.5mA/60S
		Inter terminals et metallum artus	1500V/0.5mA/60S
6	Vita electrica		≥50000 circuitus
7	Mechanica Vita		≥100000 circuitus
8	Operating Temperature		-25~105℃
9	Operating Frequency		Electrical: XV circuitus Mechanica: LX circuitus
10	Vibratio Probatur		Vibratio Frequency :10~55HZ; Amplitude : 1.5 mm. Tres directiones: 1H
11	Facultates vendidit: Plus quam LXXX% de parte baptizati solida operietur		Temperature vendendi : 235± 5℃ Tempus baptizat: 2~3S
12	Solder Caloris Resistentia		Intingere solidamentum: 260±5℃ 5±1S Manuale solidamentum: 300±5℃ 2~3S
13	Tempestas test		Ambiens Temperature :20±5℃ Relativum Umor: 65±5% RH Pressura aeris: LXXXVI ~ 106KPa
