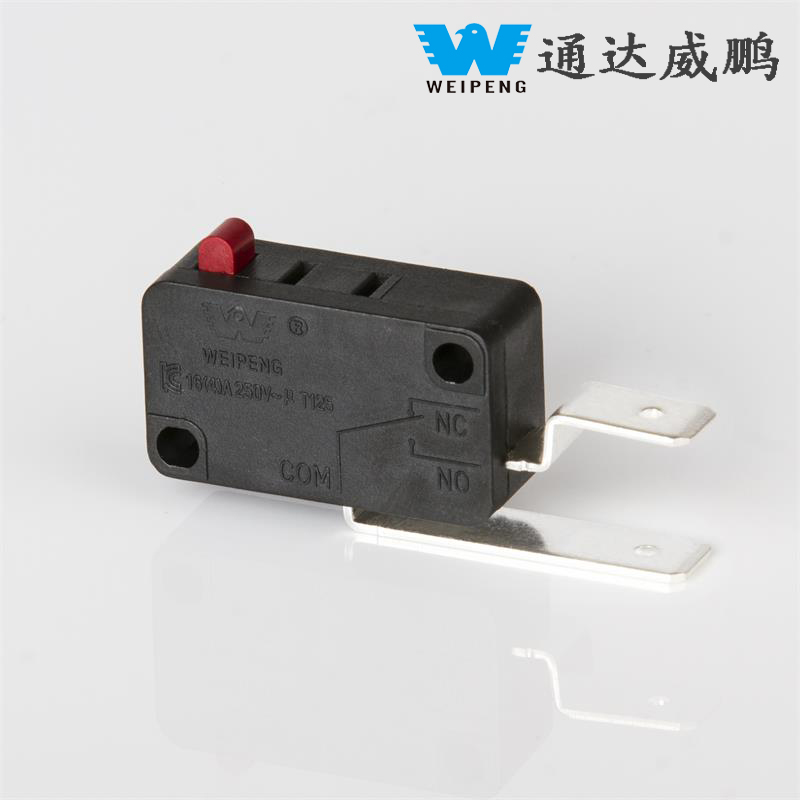

Supple Home Appliance Accessories SWITCH Duo-pin ac Tres-pin Micro Switch

Ut accumsan exemplar de Yueqing Tongda Wire Electric Factory microform series, Supple Domus Appliance Accessories Switches duae-pin et Tres-pin Micro Commutatio lineamenta "alta sensibilitas, ultra-longam vitam, et multi-scenario aptabilitas" pro nucleo suo commoda. Integrata societas XXXV annorum peritia fabricandi, facta est clavis moderaminis componentis in adjumenta domestica, electronica automativa, automationis industriae, et in aliis agris, propter minimam contactum hiatum et celerem actionem mechanismum. Eius effectus et commendatio certificata est per multiplices Instituta auctoritativas per orbem terrarum, obtinens suam amet positionem in foro iussisti.

Model:HK-14-1X-16AP-809

Mitte Inquisitionem

depictio producti

WEIPENG® est ducens Supple Domus Appliance Accessories Switches Duo-pin et Tres-pin Micro Switch fabricatores, praebitores et exportatores.

Microform SWITCH PB

HK-14 validam aemulationem demonstrat in specificationibus technicis et maxime aptus ad altum frequentiam, summus praecisio, requisita moderatio. Contactus e materiarum admixtionis valde conductivae fiunt, cum initiali contactu resistentiae ≤30mΩ, excursus ab 5A ad 25A stabiliter ferens, et cum multiplici intentione missionum AC 125V/250V et DC 12V/24V compatitur, varias potentias occurrens necessarias a parvis instrumentis ad industrialem apparatum.

Leqing Tongdae plenae processus qualitatis ratio temperantiae freti, HK-14 multa experimenta rigida patitur a materiis rudibus ad productos perfectos;

Rudis materialis probatio: Contactus materialis analysis spectris, fons elasticitas et lassitudo probat, et resistentia senescentis armamenta probat ut nuclei partes occurrant signa automotiva;

Productio probatio: Plene automated praecisio conventus lineae ad systemata inspectionis visivae instructae, key errores dimensionales intra ±0.01mm continentes ut accurate activitatem congruentem curent;

Productum perfectum probatio: C% passum rate pro 10 probat, inter alta et humilis temperatura cyclica (-40℃ ad 120℃), 48-hora salsurae corrosio, decies centena cyclorum urgentium, tremor et impetus probat.

Microform Parameter SWITCH PB (specification)

Technical Characteres switch:
ITEM	Technical Parameter		Precium
1	Electrical Rating		5(2)A/10A/16(3)A/21(8)A 250VAC
2	Contactus Resistentia		≤30mΩ valorem initial
3	Nulla Resistentia		≥100MΩ (500VDC)
4	Dielectric Voltage	inter non-connexa terminales	1000V/0.5mA/60S
		Inter terminals et metallum artus	3000V/0.5mA/60S
5	Vita electrica		≥50000 circuitus
6	Mechanica vitae		≥1000000 circuitus
7	Temperature operating		-25~ 125℃
8	Operating Frequency		electrica :15 circuitus Mechanica: LX circuitus
9	Vibratio Probatur		Vibratio Frequentia: 10~55HZ; Amplitude : 1.5 mm. Tres directiones: 1H
10	Facultates vendidit: Plus quam LXXX% de parte baptizati solida operietur		Temperature vendendi : 235± 5℃ Tempus baptizat: 2~3S
11	Solder Caloris Resistentia		Intingere solidamentum: 260±5℃ 5±1S Manuale solidamentum: 300±5℃ 2~3S
12	Salus Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Tempestas Test		Ambiens Temperature :20±5℃ Relativum Umor: 65±5% RH Pressura aeris: LXXXVI ~ 106KPa

Microform switch Feature et Application

1.Sate, certa basic switch
2. Pulchra species, stricta contiguatio. Charactenistica: parva contactus dlearance, actio velox, magna sensibilitas et parva 3. peregrinatio operans.
4.Long vitam, princeps reliablity
5.A varietate contactus terminales
6.A varnety temperatus gradus
7.A variis vectibus
8.Adopt themosetting plastic vel themoplastic
9. Late usus in home apliane elecroninc apparatusautomatic apparatus communicationis equioncar electron, apparatus et 10. instrumentum motus electrici etc.

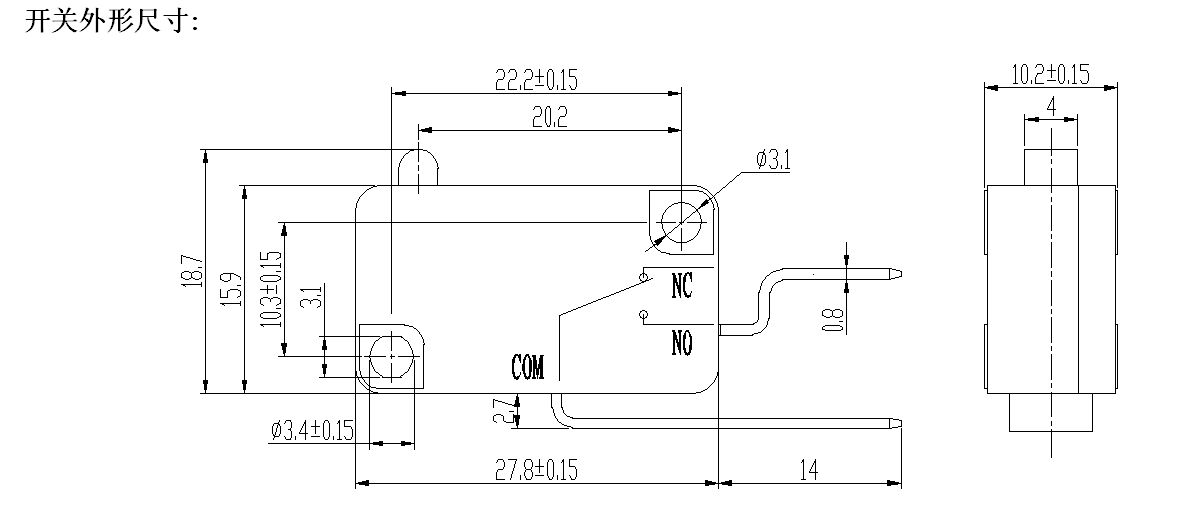

Microform SWITCH PB Details
