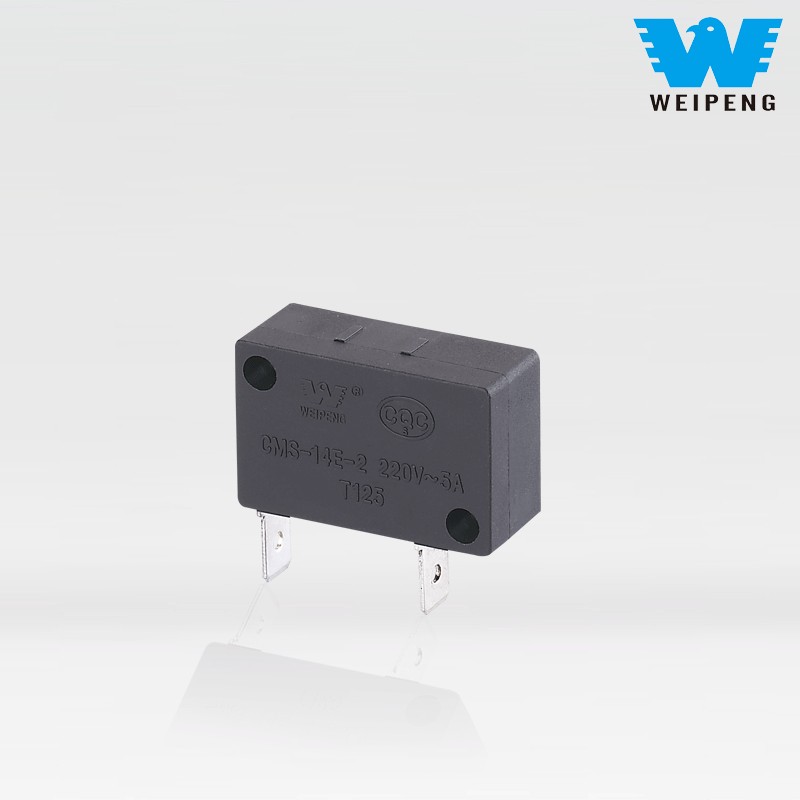

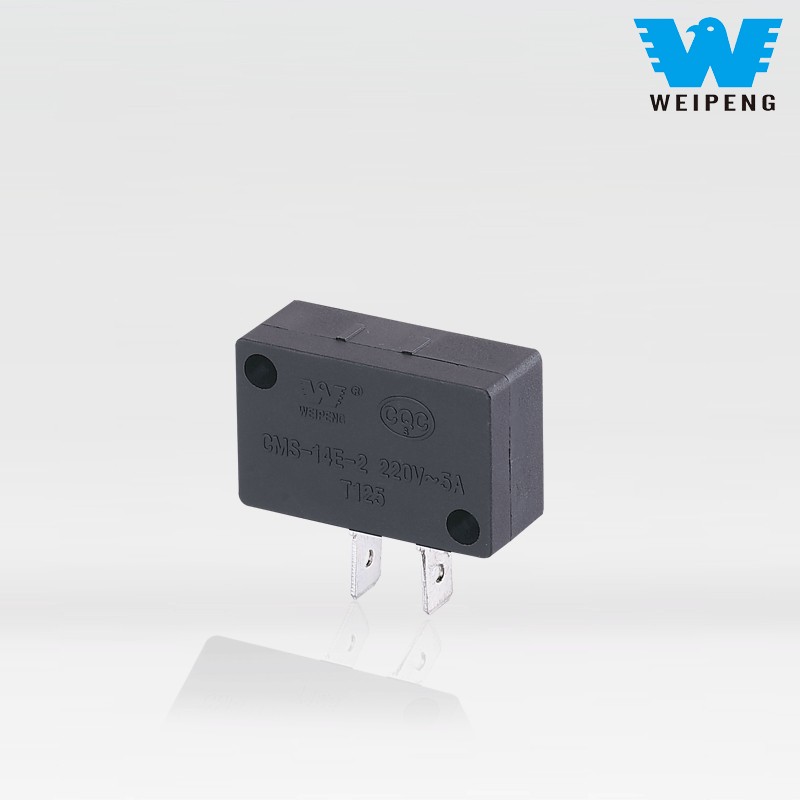

Plastic Magnetic Micro Switch

Plastic Magnetic Micro Switch est fabrica switch fabrica quae in-offs circuli per signa campi magnetici moderatur. Medium eius lineamentum non-contactum est, unde commoda celeritatis responsionis, vitae longae servitii, et magnae constantiae habet, et late in automatione industriali, securitate, autocineta, et agris domesticis captiosus est.

Model:HK-14E-2T-003

Mitte Inquisitionem

depictio producti

WEIPEG® est ducensCopia Plastic Magnetic Micro Switch artifices, praebitores et exportatores.

Microform SWITCH PB

Transitus magneticus fabrica switch est quae in-offs circuli per signa campi magnetici moderatur. Medium eius lineamentum non-contactum est, unde commoda celeritatis responsionis, vitae longae servitii, et magnae constantiae habet, et late in automatione industriali, securitate, autocineta, et agris domesticis captiosus est.

Microform Parameter SWITCH PB (specification)

Technical Characteres switch:
ITEM	Technical Parameter		Precium
1	Electrical Rating		5(2)A/10A/16(3)A/21(8)A 250VAC
2	Contactus Resistentia		≤30mΩ valorem initial
3	Nulla Resistentia		≥100MΩ (500VDC)
4	Dielectric Voltage	inter non-connexa terminales	1000V/0.5mA/60S
		Inter terminals et metallum artus	3000V/0.5mA/60S
5	Vita electrica		≥50000 circuitus
6	Mechanica vitae		≥1000000 circuitus
7	Temperature operating		-25~ 125℃
8	Operating Frequency		electrica :15 circuitus Mechanica: LX circuitus
9	Vibratio Probatur		Vibratio Frequentia: 10~55HZ; Amplitude : 1.5 mm. Tres directiones: 1H
10	Facultates vendidit: Plus quam LXXX% de parte baptizati solida operietur		Temperature vendendi : 235± 5℃ Tempus baptizat: 2~3S
11	Solder Caloris Resistentia		Intingere solidamentum: 260±5℃ 5±1S Manuale solidamentum: 300±5℃ 2~3S
12	Salus Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Tempestas Test		Ambiens Temperature :20±5℃ Relativum Umor: 65±5% RH Pressura aeris: LXXXVI ~ 106KPa

Microform switch Feature et Application

1.Sate, certa basic switch
2. Pulchra species, stricta contiguatio. Charactenistica: parva contactus dlearance, actio velox, magna sensibilitas et parva 3. peregrinatio operans.
4.Long vitam, princeps reliablity
5.A varietate contactus terminales
6.A varnety temperatus gradus
7.A variis vectibus
8.Adopt themosetting plastic vel themoplastic
9. Late usus in home apliane elecroninc apparatusautomatic apparatus communicationis equioncar electron, apparatus et 10. instrumentum motus electrici etc.

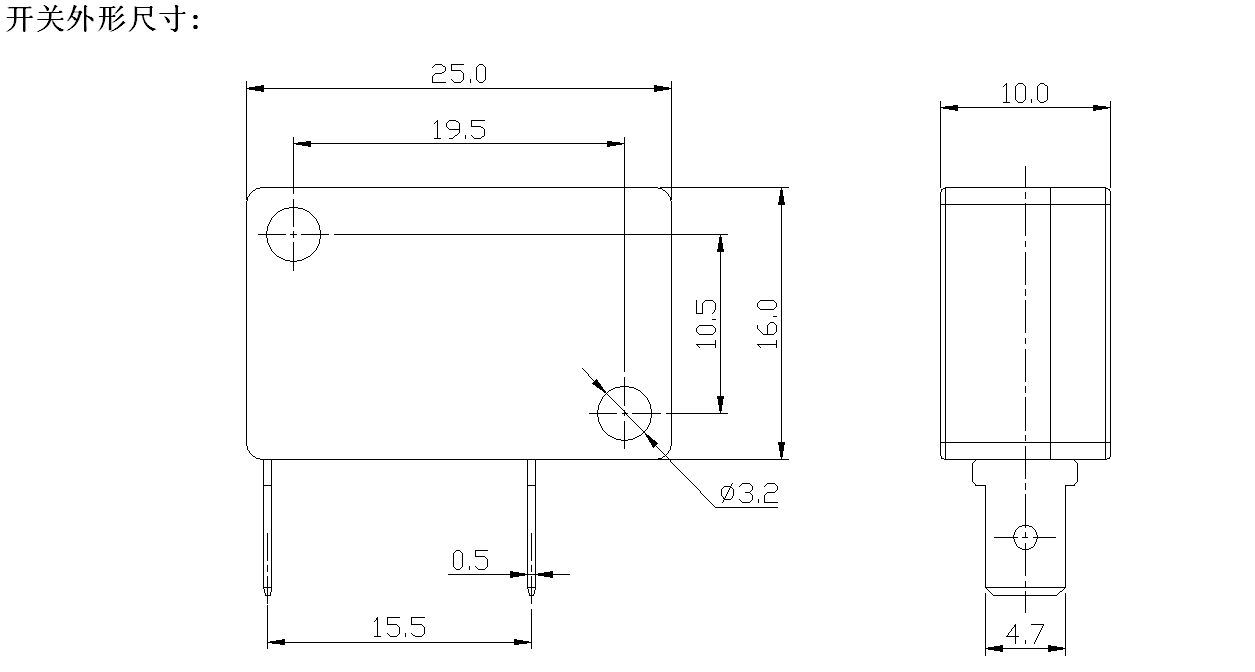

Microform SWITCH PB Details
