Northmanni Open High-caliditas repugnans Dustproof Appliance Low Micro Switch

Sicut Probatio exemplar of Yueqing Tongda Wire Electric Factory microform series, normaliter Open High-Temperate resistens Dustproof Appliance Limit Micro-Privation features "altae sensibilitatis, ultra-longae vitae, et multi-sca- natio aptabilitas" pro core utilitates eius. Integrata societas XXXV annorum peritia fabricandi, facta est clavis moderaminis componentis in adjumenta domestica, electronica automativa, automationis industriae, et in aliis agris, propter minimam contactum hiatum et celerem actionem mechanismum. Eius effectus et commendatio certificata est per multiplices Instituta auctoritativas per orbem terrarum, obtinens suam amet positionem in foro iussisti.

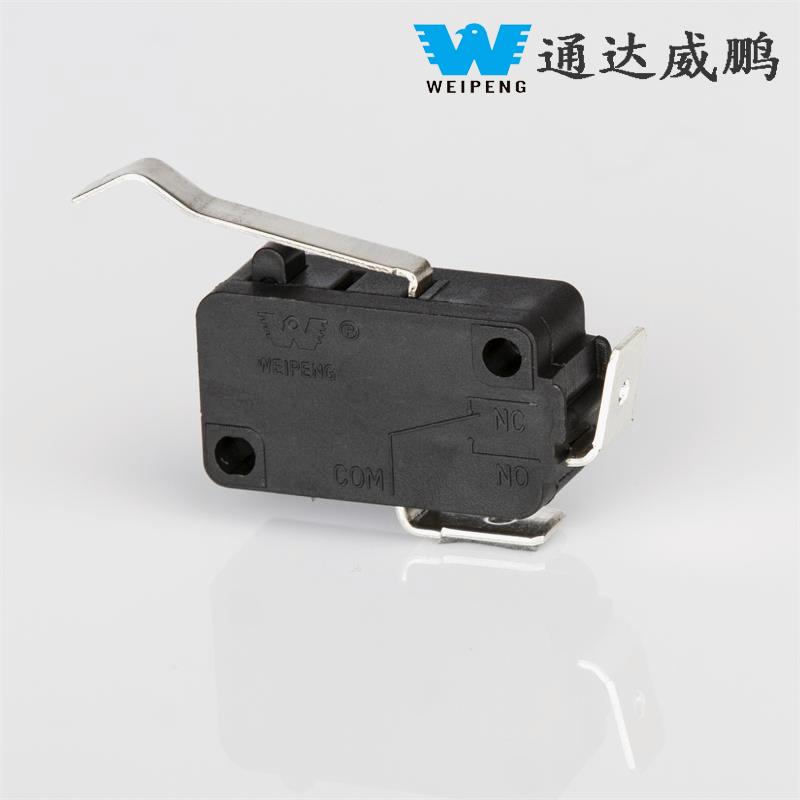

Model:HK-14-1X-16A-261

Mitte Inquisitionem

depictio producti

WEIPEG® est ducensNorthmanni Open High-caliditas repugnans Dustproof Appliance Low Micro Switch artifices, praebitores et exportatores.

Microform SWITCH PB

Cum stabilis et certa observantia, summa cost-efficacia, et certitudinis qualitas comprehensiva, HK‑14 microform in coquinis adjumenta late adhibentur, calentium aqua, actus electrici, automationis machinis moderatio, partium automotivarum, instrumentorum officii, et aliorum agrorum. Optima est electio utentium stabilitatem, firmitatem, et aptabilitatem quae- rentem, et etiam plene refert nucleum valorem Factory Yueqing Tongda Wired Electric: "Integritas in operatione, qualitas fundamentum, et innovatio pragmatica."

Certification Status

Salutem plurimas internationales et domesticas certificationes consecuta est ut UL, CSA, VDE, EEC, TUV, CE, KC, CQC, atque etiam ISO9001 qualitatem administrationis systematis certificationis, qualitatis uber procurandae.

Microform Parameter SWITCH PB (specification)

Technical Characteres switch:
ITEM	Technical Parameter		Precium
1	Electrical Rating		5(2)A/10A/16(3)A/21(8)A 250VAC
2	Contactus Resistentia		≤30mΩ valorem initial
3	Nulla Resistentia		≥100MΩ (500VDC)
4	Dielectric Voltage	inter non-connexa terminales	1000V/0.5mA/60S
		Inter terminals et metallum artus	3000V/0.5mA/60S
5	Vita electrica		≥50000 circuitus
6	Mechanica vitae		≥1000000 circuitus
7	Temperature operating		-25~ 125℃
8	Operating Frequency		electrica :15 circuitus Mechanica: LX circuitus
9	Vibratio Probatur		Vibratio Frequentia: 10~55HZ; Amplitude : 1.5 mm. Tres directiones: 1H
10	Facultates vendidit: Plus quam LXXX% de parte baptizati solida operietur		Temperature vendendi : 235± 5℃ Tempus baptizat: 2~3S
11	Solder Caloris Resistentia		Intingere solidamentum: 260±5℃ 5±1S Manuale solidamentum: 300±5℃ 2~3S
12	Salus Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Tempestas Test		Ambiens Temperature :20±5℃ Relativum Umor: 65±5% RH Pressura aeris: LXXXVI ~ 106KPa

Microform switch Feature et Application

1.Sate, certa basic switch
2. Pulchra species, stricta contiguatio. Charactenistica: parva contactus dlearance, actio velox, magna sensibilitas et parva 3. peregrinatio operans.
4.Long vitam, princeps reliablity
5.A varietate contactus terminales
6.A varnety temperatus gradus
7.A variis vectibus
8.Adopt themosetting plastic vel themoplastic
9. Late usus in home apliane elecroninc apparatusautomatic apparatus communicationis equioncar electron, apparatus et 10. instrumentum motus electrici etc.

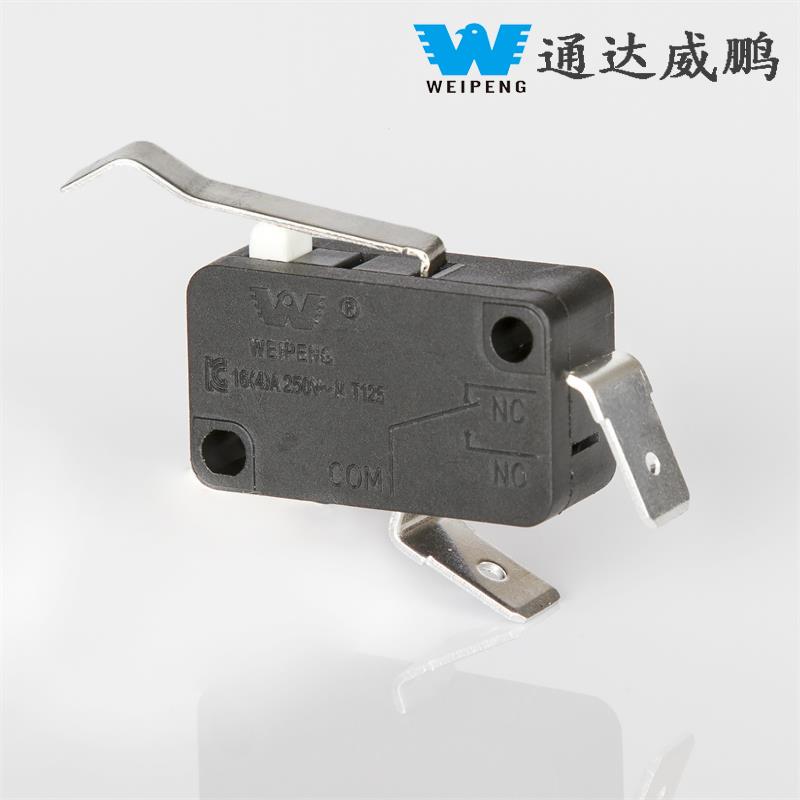

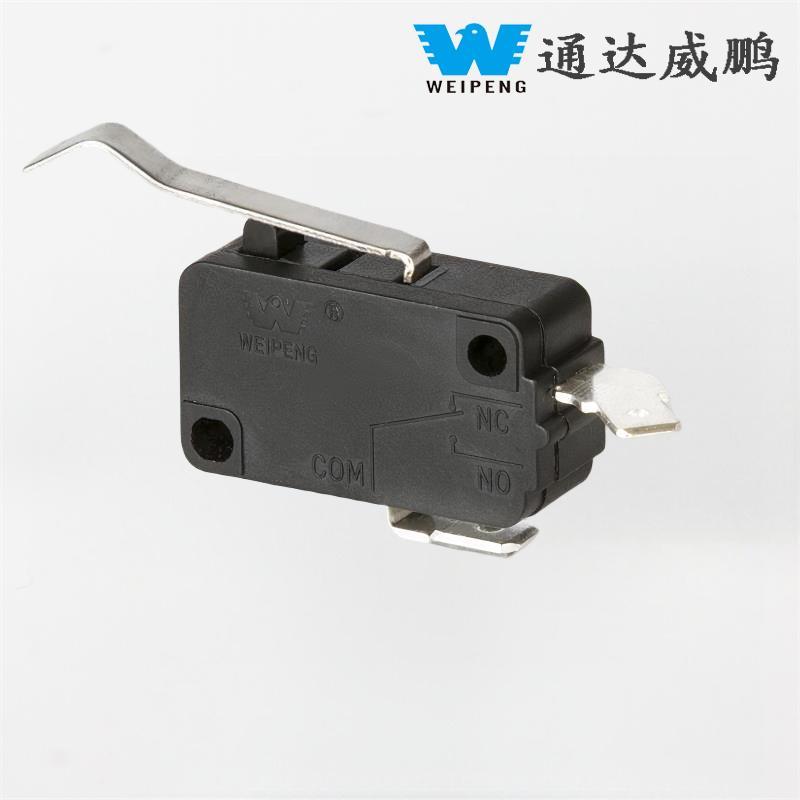

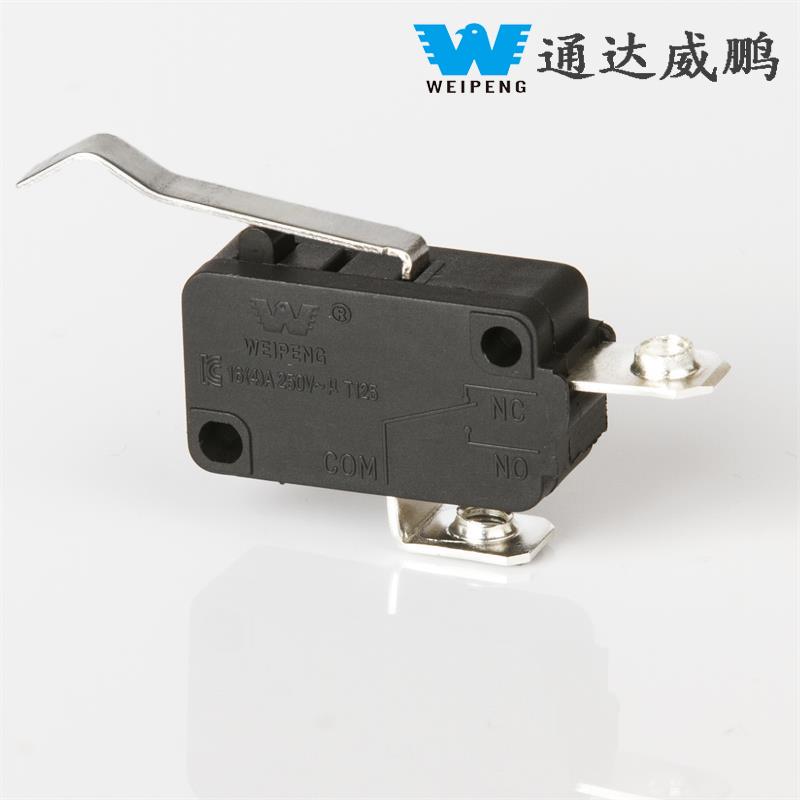

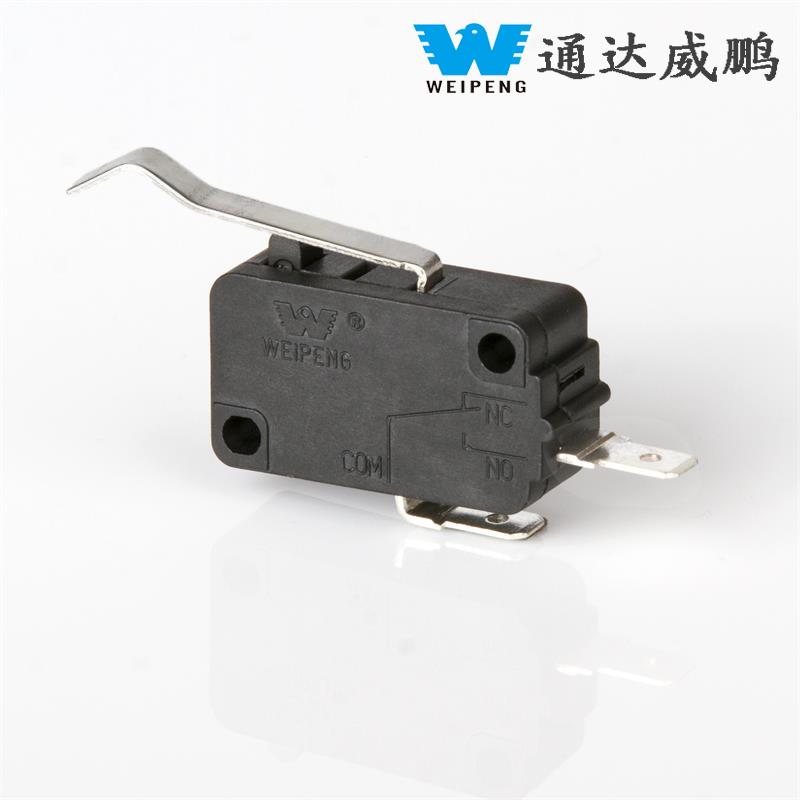

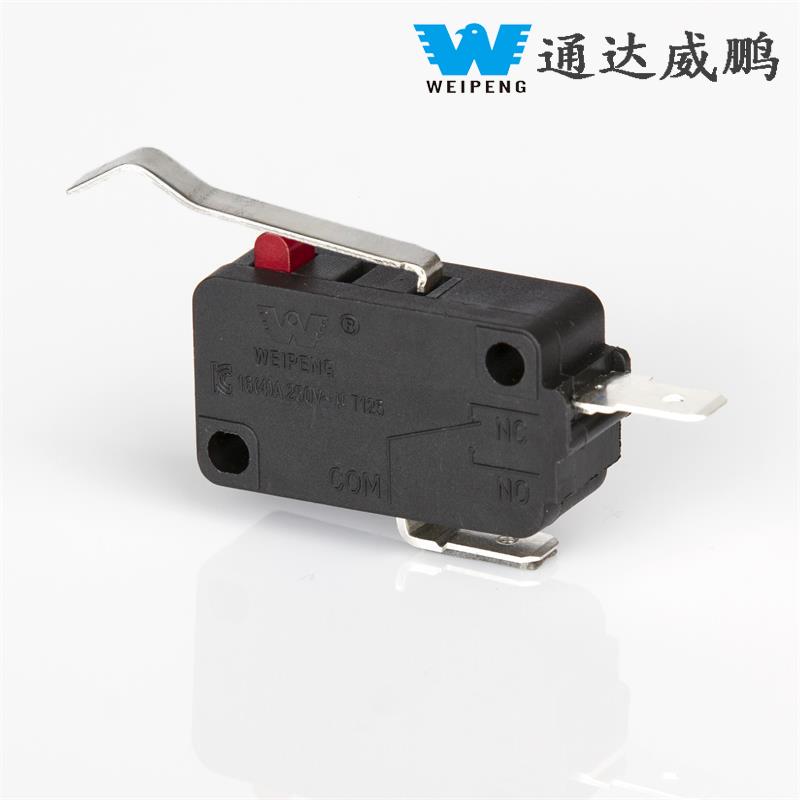

Microform SWITCH PB Details
