Northmanni Open 16A High Current Certified Low Micro SWITCH PB

Sicut Probatio exemplar of Yueqing Tongda Wire Electric Factory microform series, normaliter Open 16A High Current Certified Limit Micro Switch features "alta sensibilitas, ultra-longam vitam, et multi-scenario aptabilitas" pro core utilitates. Integrata societas XXXV annorum peritia fabricandi, facta est clavis moderaminis componentis in adjumenta domestica, electronica automativa, automationis industriae, et in aliis agris, propter minimam contactum hiatum et celerem actionem mechanismum. Eius effectus et commendatio certificata est per multiplices Instituta auctoritativas per orbem terrarum, obtinens suam amet positionem in foro iussisti.

Model:HK-14-1X-16AP-811

Mitte Inquisitionem

depictio producti

WEIPEG® est ducensNorthmanni Open 16A High Current Certified Low Micro SWITCH PB artifices, praebitores et exportatores.

Microform SWITCH PB

Series HK-XIV valde flexibilium consuetudinum praebet optiones ad differentias applicationis requisita. Vis operativa potest nativus (minus quam 5.0 N in statu libero vecte, vexillum 30±15 gf), cum ictu operante range 0.6-1.5 mm, ad varias felis vis et obsessio missionum apta. Vectis styli sunt customizabiles, incluso rectis, curvis, vectibus cylindro, qui variis structurae tradendae mechanicae possunt aequare. Contactus formae tegunt plenam extensionem SPDT (1NO 1NC), NO, NC.

Productum salutem certificationum maioris globalis consecutus inter UL, C-UL, Enec, VDE, CE, CB, TUV, CQC, KC, cum vexillo IEC 61058 obsecutus est, et mercatus accessus requisitis in regionibus ut Europa, America Septentrionalis et Asia-Pacific occurrit. Societas ISO9001 et IATF 16949 qualitatem administrationis certificationum systematis consecutus est, stricte instrumenta RoHS et regulas environmentales ADVENIS, et per totum processum productionis accuratum imperium conservat. Cum VI diplomatis nationalis inventionis et 48 utilitatis exemplar diplomatis, series HK-14 gradus industriae in fide et constantia consequitur.

Microform Parameter SWITCH PB (specification)

Technical Characteres switch:
ITEM	Technical Parameter		Precium
1	Electrical Rating		5(2)A/10A/16(3)A/21(8)A 250VAC
2	Contactus Resistentia		≤30mΩ valorem initial
3	Nulla Resistentia		≥100MΩ (500VDC)
4	Dielectric Voltage	inter non-connexa terminales	1000V/0.5mA/60S
		Inter terminals et metallum artus	3000V/0.5mA/60S
5	Vita electrica		≥50000 circuitus
6	Mechanica vitae		≥1000000 circuitus
7	Temperature operating		-25~ 125℃
8	Operating Frequency		electrica :15 circuitus Mechanica: LX circuitus
9	Vibratio Probatur		Vibratio Frequentia: 10~55HZ; Amplitude : 1.5 mm. Tres directiones: 1H
10	Facultates vendidit: Plus quam LXXX% de parte baptizati solida operietur		Temperature vendendi : 235± 5℃ Tempus baptizat: 2~3S
11	Solder Caloris Resistentia		Intingere solidamentum: 260±5℃ 5±1S Manuale solidamentum: 300±5℃ 2~3S
12	Salus Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Tempestas Test		Ambiens Temperature :20±5℃ Relativum Umor: 65±5% RH Pressura aeris: LXXXVI ~ 106KPa

Microform switch Feature et Application

1.Sate, certa basic switch
2. Pulchra species, stricta contiguatio. Charactenistica: parva contactus dlearance, actio velox, magna sensibilitas et parva 3. peregrinatio operans.
4.Long vitam, princeps reliablity
5.A varietate contactus terminales
6.A varnety temperatus gradus
7.A variis vectibus
8.Adopt themosetting plastic vel themoplastic
9. Late usus in home apliane elecroninc apparatusautomatic apparatus communicationis equioncar electron, apparatus et 10. instrumentum motus electrici etc.

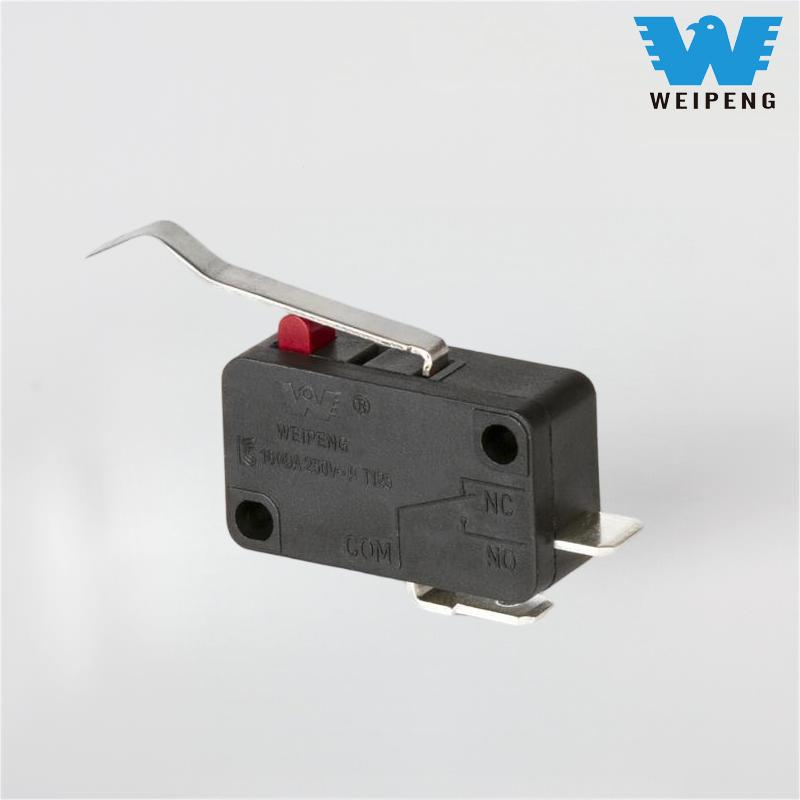

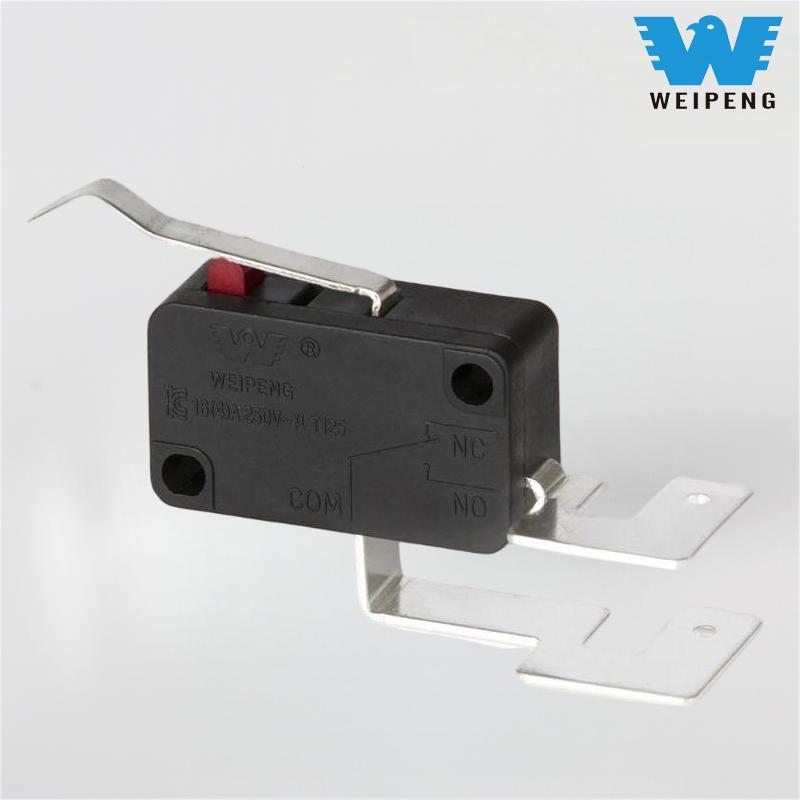

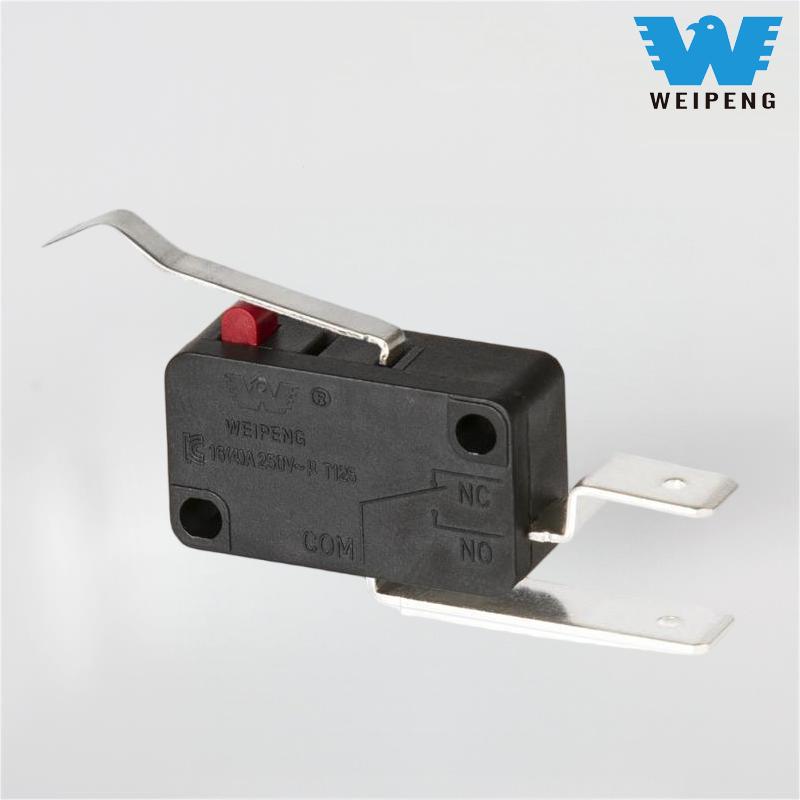

Microform SWITCH PB Details
