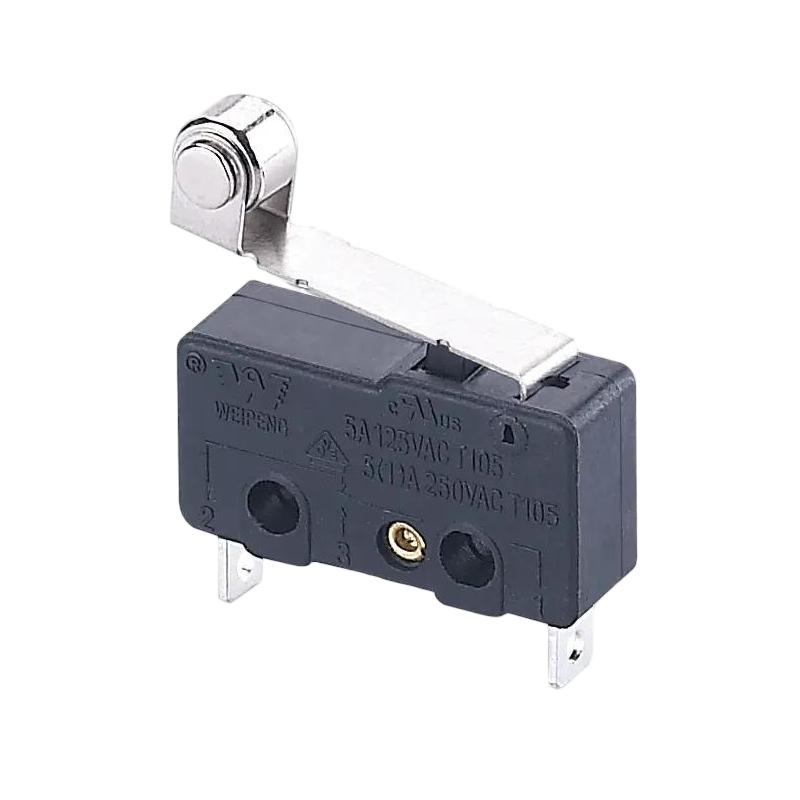

Micro SWITCH for Juicers Vacuum Cleaners Printers and Other Ddevices

Sicut repraesentativum productum of Yueqing Tongda Wire Electric Factory quod involvit integrationem core standardizationis et customizationis, Micro SWITCH pro succisivis vacui impressoribus et aliis Ddevicibus designatus est cum nucleo principiorum "stabilitatis, fidei et scenae compatibilitatis". Incorporat XXXV annos societatis switch fabricandi peritia, multiplices optimizations in electricae operationis, tutelae gradus et experientiae usoris assequendis. Transitus late applicabilis est missionibus sicut dolor domi potentiae distributionis, instrumentorum auxiliariorum industrialium et instrumentorum medicorum minorum, quod facit praelatum ambitum temperationis componentis quae universalitatem cum potentia customization librat.

Model:HK-04G-1AT-009

Mitte Inquisitionem

depictio producti

WEIPENG® praecipuas virgas Micro pro succisis Vacuum tersorum impressores et Aliae Ddevices fabricatores, praebitores et exportatores.

Microform SWITCH PBIntroductio

Gradus productionis praecipuae sunt quae emptores intellegere debent qualitatem productam aestimare;

1. Vestibulum Component: Ipsum contactus metallorum et fontium machinatorum; durabile tegumentum (plastic/metallum).

2. Conventus: Accurate colligens fontes, contactus et actus ad vitandum afficiens effectum.

3. Testis: Strictioris probatio (mille diurnariorum testium, continuitatis electricae probat) ad firmitatem obtinendam.

4. Packaging: Protective packaging for easy transportation, with clearification of specifications.

Microform SWITCH PBApplicationem

Virgulae parvae late adhibentur et certae in re ipsa, maxime applicatae;

- Familiares adjumenta: armarium luminum, portae oven proin seras, machina lavatio virgas operculi, et timers toaster.

- Industriae instrumenti: gravia-officii exempla apta vectoriis cingulis, machinis, et tabulatis moderandis (dustproof et humoris-probationis).

- Automotivum campus: windshield wipers, ostio-ajar indicibus - potest sustineri tremor et extremae temperaturae.

- Electronic machinis: minimae permutationes pro remotis dominiis et lusus moderatoris (responsivum et diuturnum).

Microform SWITCH PB Specification

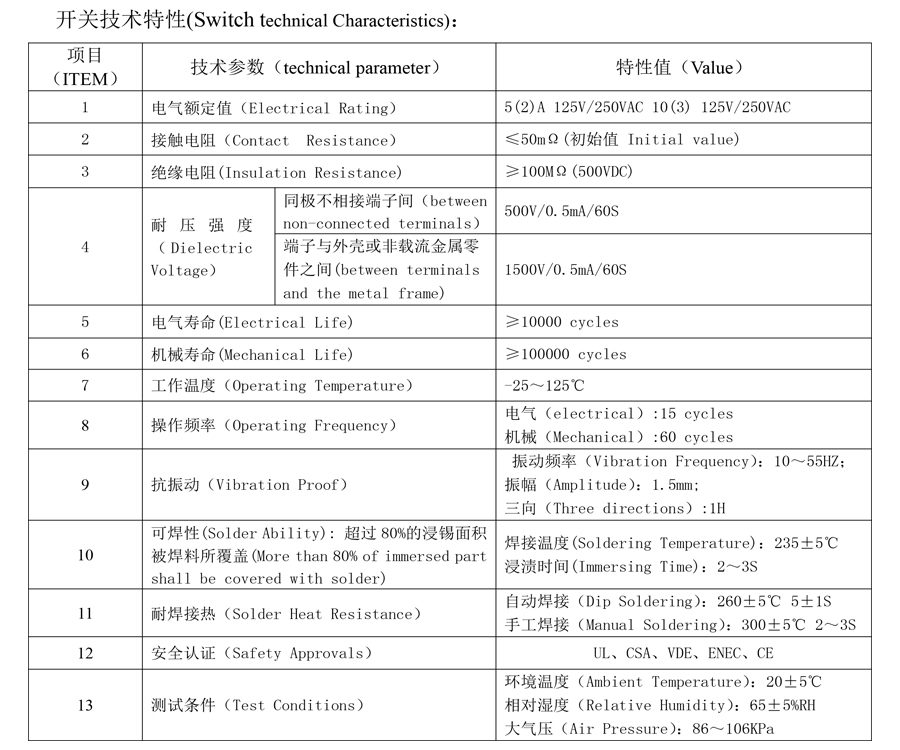

Technical Characteres switch:
ITEM	Technical Parameter		Precium
1	Electrical Rating		5(2)A 125V/250VAC 10(3)125V/250VAC
2	Contactus Resistentia		≤50mΩ valorem initialem
3	Nulla Resistentia		≥100MΩ (500VDC)
4	Dielectric Voltage	inter non-connexa terminales	500V/0.5mA/60S
		Inter terminals et metallum artus	1500V/0.5mA/60S
5	Vita electrica		≥10000 circuitus
6	Mechanica Vita		≥100000 circuitus
7	Operating Temperature		-25~ 125℃
8	Operating Frequency		Electrical: XV circuitus Mechanica: LX circuitus
9	Vibratio Probatur		Vibratio Frequency :10~55HZ; Amplitude : 1.5 mm. Tres directiones: 1H
10	Facultates vendidit: Plus quam LXXX% de parte baptizati solida operietur		Temperature : 235±5℃ Tempus baptizat: 2~3S
11	Solder Caloris Resistentia		Intingere solidamentum: 260±5℃ 5±1S Manuale solidamentum: 300±5℃ 2~3S
12	Salus Approvals		UL、CSA、VDE、ENEC、CE
13	Tempestas test		Ambiens Temperature :20±5℃ Relativum Umor: 65±5% RH Air Impetus: 86~ 106KPa
