Macro-Micro Switch Domus Appliance Universalis Switch


VIDEO

Macro-Micro Switch Domus Appliance Universalis Switch

Ut accumsan exemplar de Yueqing Tongda Wire Electric Factory microform series, Macro-Micro Switch Domus Appliance Universalis Switch Resistant Micro SWITCH Resistant Micro SWITCH Resistant Micro Switch features "alta sensibilitas, ultra longam vitam, et multi-scenario aptabilitas" pro core utilitates eius. Integrata societas XXXV annorum peritia fabricandi, facta est clavis moderaminis componentis in adjumenta domestica, electronica automativa, automationis industriae, et in aliis agris, propter minimam contactum hiatum et celerem actionem mechanismum.

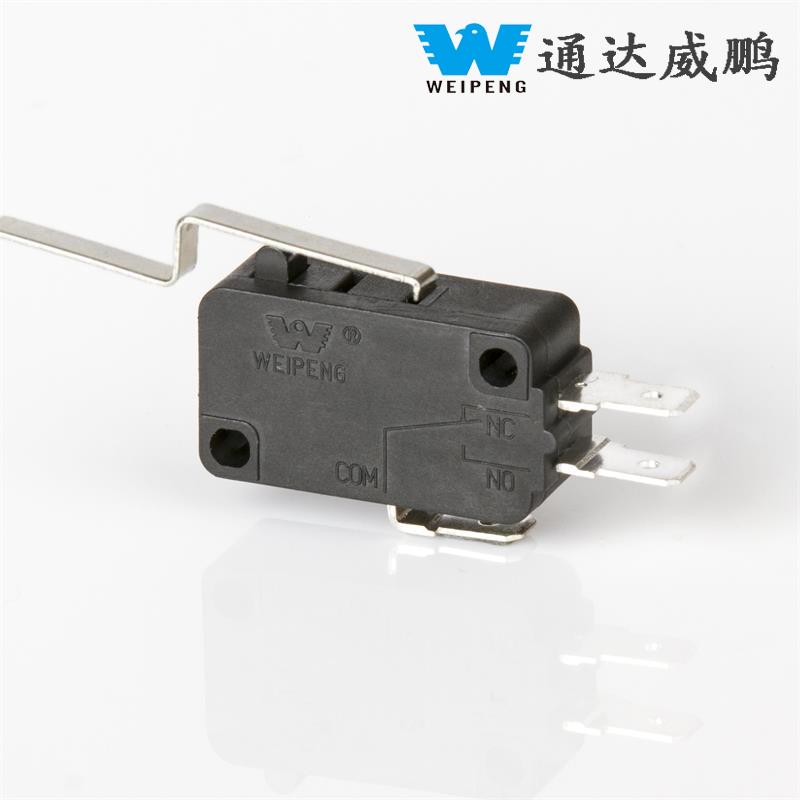

Model:HK-14-10A-309

Mitte Inquisitionem

depictio producti

WEIPEG® est ducensMacro-Micro Switch Domus Appliance Universalis Switch artifices, praebitores et exportatores.

Microform SWITCH PB

HK-14 summus current, gravis officium, vexillum microswitch efficiens robustam unam partem habitationi et actionis disrumpensorum contactus mechanismi. Figuras acubus 2/3/4/6 sustinet et vectibus cussodis amplis, cum capacitate mutandi usque ad 21A@250VAC. Imperium amet switch ad instrumenta domus, instrumenta industriae et instrumenta potentiae est.

Generales IP40 microswitches pulverem limitatum et resistentiam fundent. In coquinis, thermarum et ambitibus humidis velit, humor et oleum fumus facile intus penetrant, contactum rubiginem causantes, ambitum brevem et malfunctionem. Commendatur ad upgrade ad IP41 vel altiores microswitches muniendas et ad confirmandum apparatum signandum ne humorem et oleum fumi intrusionem.

Microform Parameter SWITCH PB (specification)

Technical Characteres switch:
ITEM	Technical Parameter		Precium
1	Electrical Rating		5(2)A/10A/16(3)A/21(8)A 250VAC
2	Contactus Resistentia		≤30mΩ valorem initial
3	Nulla Resistentia		≥100MΩ (500VDC)
4	Dielectric Voltage	inter non-connexa terminales	1000V/0.5mA/60S
		Inter terminals et metallum artus	3000V/0.5mA/60S
5	Vita electrica		≥50000 circuitus
6	Mechanica Vita		≥1000000 circuitus
7	Temperature operating		-25~ 125℃
8	Operating Frequency		electrica :15 circuitus Mechanica: LX circuitus
9	Vibratio Probatur		Vibratio Frequentia: 10~55HZ; Amplitude : 1.5 mm. Tres directiones: 1H
10	Facultates vendidit: Plus quam LXXX% de parte baptizati solida operietur		Temperature vendendi : 235± 5℃ Tempus baptizat: 2~3S
11	Solarium Caloris Resistentia		Intingere solidamentum: 260±5℃ 5±1S Manuale solidamentum: 300±5℃ 2~3S
12	Salus Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Tempestas test		Ambiens Temperature :20±5℃ Relativum Umor: 65±5% RH Pressura aeris: LXXXVI ~ 106KPa

Microform switch Feature et Application

1.Sate, certa basic switch
2. Pulchra species, stricta contiguatio. Charactenistic: parva contactu dlearance, actio velox, magna sensibilitas et parva 3. peregrinatio operans.
4.Long vitam, princeps reliablity
5.A varietate contactus terminales
6.A varnety temperatus gradus
7.A variis vectibus
8.Adopt themosetting plastic vel themoplastic
9. Late usus in home apliane elecroninc apparatusautomatic apparatus communicationis equioncar electron, apparatus et 10. instrumentum motus electrici etc.

Microform SWITCH PB Details
