Magna Current Micro SWITCH PB lavandi Machines

Ut accumsan exemplar de Yueqing Tongda Cable potentiae Plantae microform seriei switch, HK-14 lineamenta "sensibilitas altae, ultra-longae vitae spatium, et multi-scenario aptabilitas" pro core utilitates eius. Integrata societas XXXV annorum peritia fabricandi, facta est clavis moderaminis componentis in adjumenta domestica, electronica automativa, automationis industriae, et in aliis agris, propter minimam contactum hiatum et celerem actionem mechanismum. Eius effectus et commendatio certificata est per multiplices Instituta auctoritativas per orbem terrarum, obtinens suam amet positionem in foro iussisti.

Model:HK-14-16AP-004

Mitte Inquisitionem

depictio producti

WEIPENG® ducens Large Current Micro Switch ad lavationem machinarum fabricatores, praebitores et exportatores.

Microform SWITCH PB

Millisecond-Precise Triggering: Mechanismum velocis actionis disrumpensum cum brevi peregrinatione 0.5-1.6mm et vim operandi 0.25-4N aptabilem praebens, celeri et mora libera responsioni efficaciter praecavendi "falsas triggers" providens. Apta ad altum praecisionem missiones quales sunt proin clibanum ostium moderantis et sensoriis industrialis.

Qualitas ultra-Durable: Summus conductivity stannum contactus iunctorum cum structura firmatis praebent vitae mechanicae spatium 1 decies cyclos excedentes et electricum spatium vitae super 50.000 cyclos. Specimen operationis diuturnae stabilitatis in ambitus magno frequentiae usui sicut electronici autocineti et instrumenta virtutis.

Adaptabilitas ampla Environmentalis: Operatur sub ampla temperatura extensionis -25℃ ad 125℃, altum frequentiam vibrationum resistit 10-55Hz, ≥100MΩ ≥100MΩ lineamenta insulationis resistentiae, et terminales resistentiae 1000V AC. Certus effectus in asperis conditionibus, ut officinae vibrationes industriae et temperaturas in cellula autocineti engine.

Microform Parameter SWITCH PB (specification)

Technical Characteres switch:
ITEM	Technical Parameter		Precium
1	Electrical Rating		5（2)A/10A/16(3)A/21（8）A 250VAC
2	Contactus Resistentia		≤30mΩ valorem initial
3	Nulla Resistentia		≥100MΩ (500VDC)
4	Dielectric Voltage	inter non-connexa terminales	1000V/0.5mA/60S
		Inter terminals et metallum artus	3000V/0.5mA/60S
5	Vita electrica		≥50000 circuitus
6	Mechanica Vita		≥1000000 circuitus
7	Operating Temperature		-25~ 125℃
8	Operating Frequency		electrica :15 circuitus Mechanica: LX circuitus
9	Vibratio Probatur		Vibratio Frequentia: 10~55HZ; Amplitude : 1.5 mm. Tres directiones: 1H
10	Facultates vendidit: Plus quam LXXX% de parte baptizati solida operietur		Temperature vendendi : 235± 5℃ Tempus baptizat: 2~3S
11	Solder Caloris Resistentia		Intingere solidamentum: 260±5℃ 5±1S Manuale solidamentum: 300±5℃ 2~3S
12	Salus Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Tempestas test		Ambiens Temperature :20±5℃ Relativum Umor: 65±5% RH Pressura aeris: LXXXVI ~ 106KPa

Microform switch Feature et Application

1.Sate, certa basic switch
2. Pulchra species, stricta contiguatio. Charactenistic: parva contactu dlearance, actio velox, magna sensibilitas et parva 3. peregrinatio operans.
4.Long vitam, princeps reliablity
5.A varietate contactus terminales
6.A varnety temperatus gradus
7.A variis vectibus
8.Adopt themosetting plastic vel themoplastic
9. Late usus in home apliane elecroninc apparatusautomatic apparatus communicationis equioncar electron, apparatus et 10. instrumentum motus electrici etc.

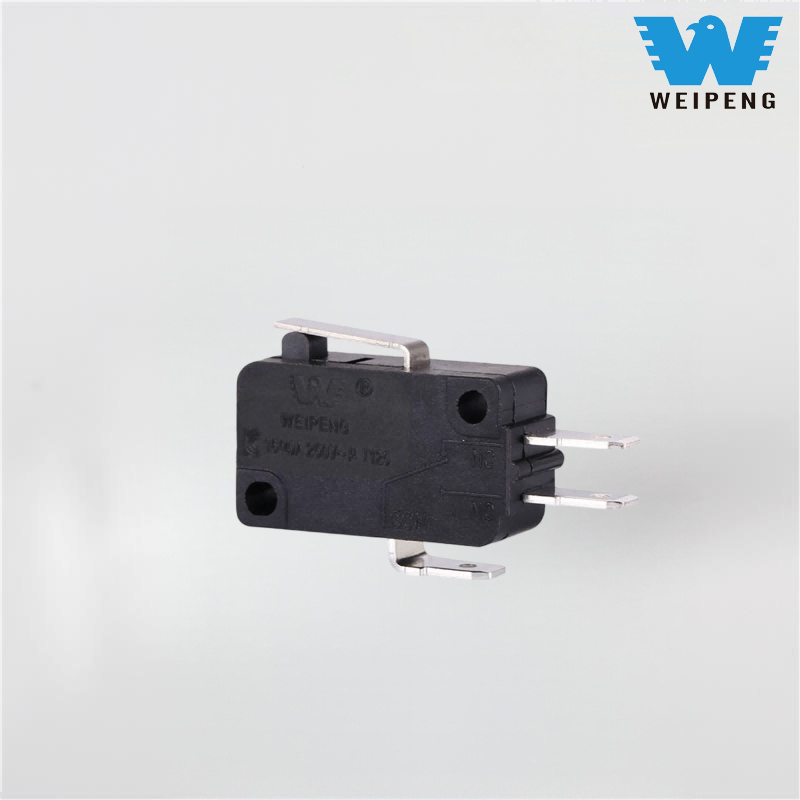

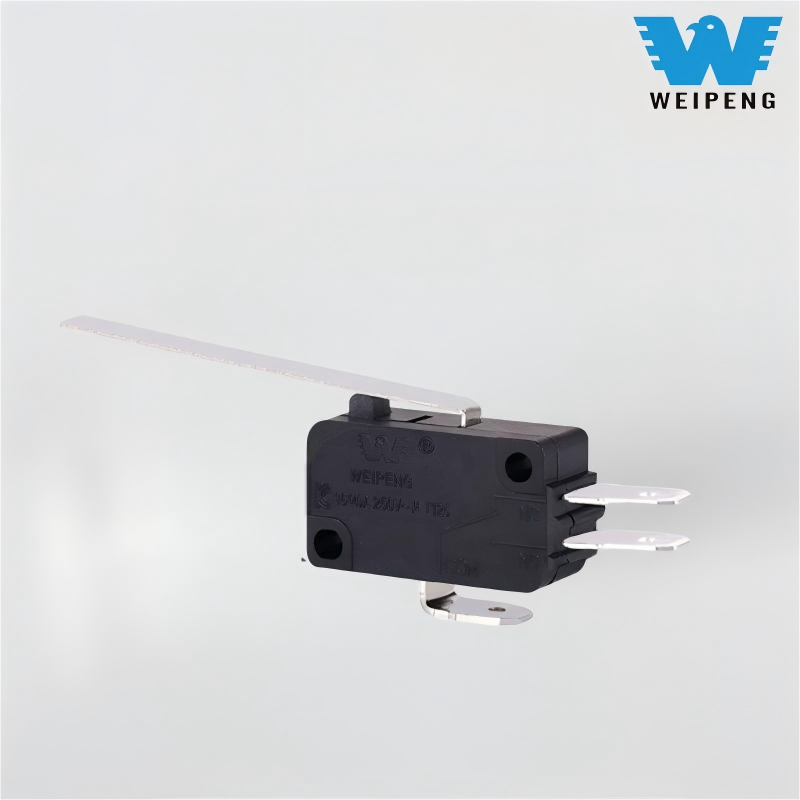

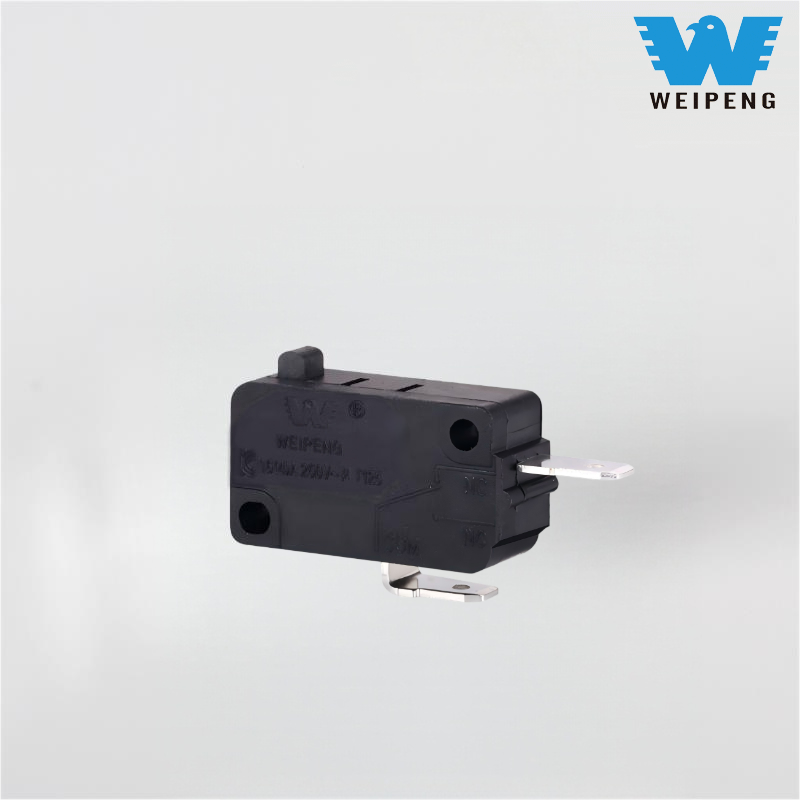

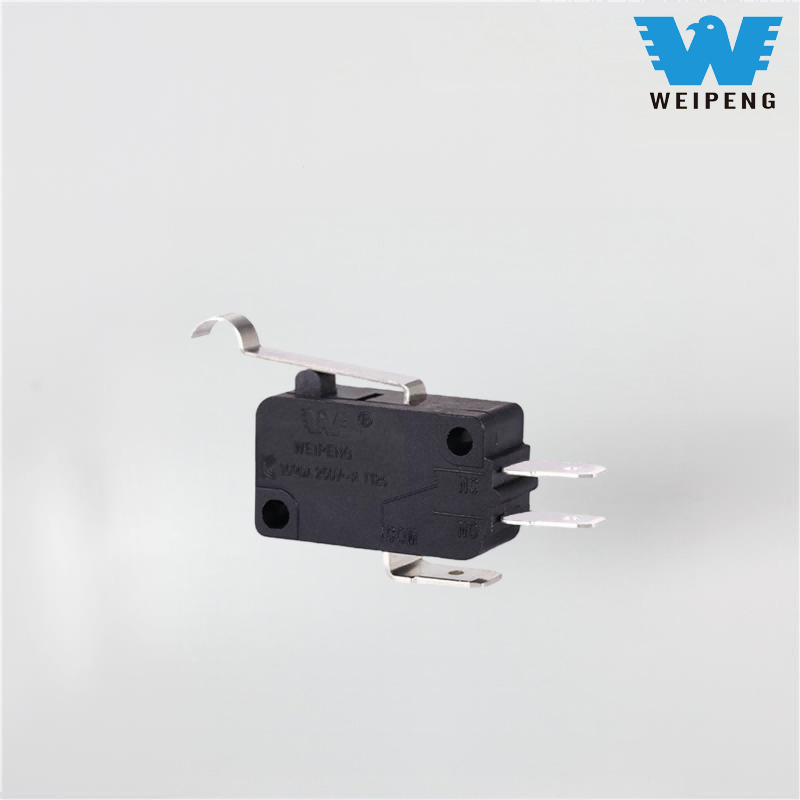

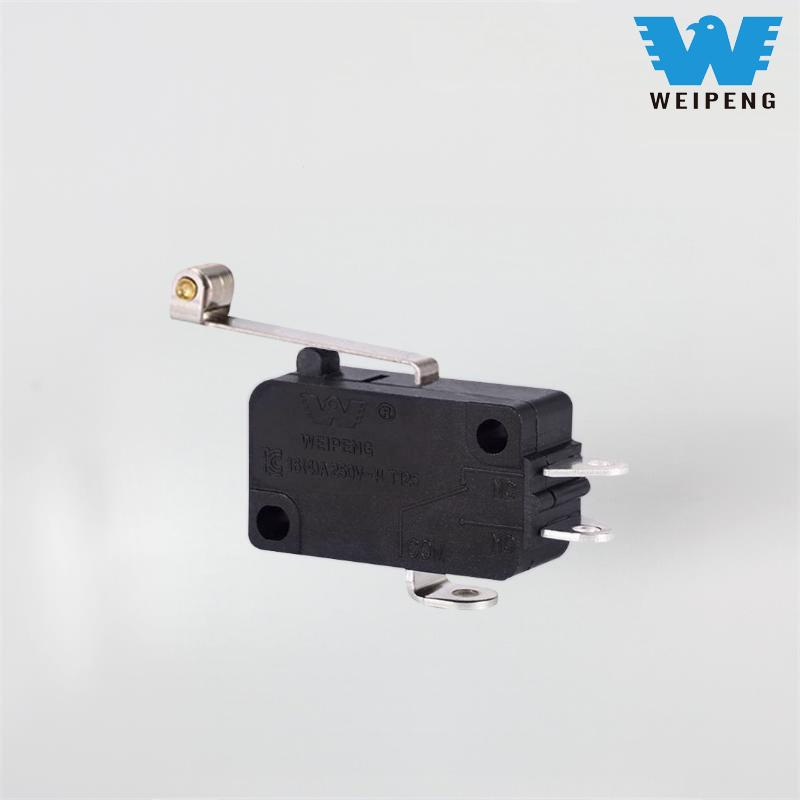

Microform SWITCH PB Details
