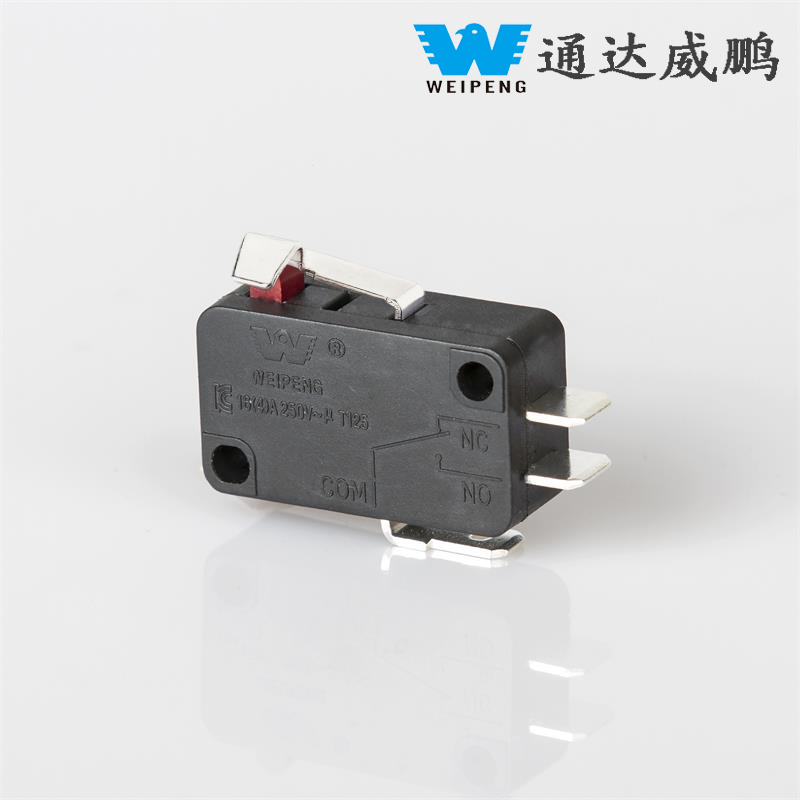

Kw7 magna Current Tres-pin Short manubrio hospitii Appliance Micro SWITCH PB

Ut accumsan exemplar de Yueqing Tongda Wire Electric Factory microform series, Kw7 Large Current Tres-pin Short Handle Household Appliance Microform features "alta sensibilitas, ultra-longam vitam, et multi-scaenarum aptabilitas" pro core utilitates. Integrata societas XXXV annorum peritia fabricandi, facta est clavis moderaminis componentis in adjumenta domestica, electronica automativa, automationis industriae, et in aliis agris, propter minimam contactum hiatum et celerem actionem mechanismum.

Model:HK-14-16A-610

Mitte Inquisitionem

depictio producti

WEIPEG® est ducensKw7 magna Current Tres-pin Short manubrio hospitii Appliance Micro SWITCH PB artifices, praebitores et exportatores.

Microform SWITCH PB

Transitus HK-14 percommodus operas customizationes valde utiles praebet, limitationes permutationum virgarum conventionalium normae solvens. Lorem ad exempla exclusiva cum diversis oneribus, variis formis felis, et diversis magnitudinibus secundum specificas clientium necessitates fieri potest. Eodem tempore parametris optimize potest ut in itineratione et commutatione felis vim facientis secundum apparatum accommodationis emptoris requisita, inconsutilem integrationem assequendum cum instrumento emptoris ac iussis occurrentibus et usu personali necessario.

Microform Parameter SWITCH PB (specification)

Technical Characteres switch:
ITEM	Technical Parameter		Precium
1	Electrical Rating		5(2)A/10A/16(3)A/21(8)A 250VAC
2	Contactus Resistentia		≤30mΩ valorem initial
3	Nulla Resistentia		≥100MΩ (500VDC)
4	Dielectric Voltage	inter non-connexa terminales	1000V/0.5mA/60S
		Inter terminals et metallum artus	3000V/0.5mA/60S
5	Vita electrica		≥50000 circuitus
6	Mechanica Vita		≥1000000 circuitus
7	Temperature operating		-25~ 125℃
8	Operating Frequency		electrica :15 circuitus Mechanica: LX circuitus
9	Vibratio Probatur		Vibratio Frequentia: 10~55HZ; Amplitude : 1.5 mm. Tres directiones: 1H
10	Facultates vendidit: Plus quam LXXX% de parte baptizati solida operietur		Temperature vendendi : 235± 5℃ Tempus baptizat: 2~3S
11	Solder Caloris Resistentia		Intingere solidamentum: 260±5℃ 5±1S Manuale solidamentum: 300±5℃ 2~3S
12	Salus Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Tempestas test		Ambiens Temperature :20±5℃ Relativum Umor: 65±5% RH Pressura aeris: LXXXVI ~ 106KPa

Microform switch Feature et Application

1.Sate, certa basic switch
2. Pulchra species, stricta contiguatio. Charactenistic: parva contactu dlearance, actio velox, magna sensibilitas et parva 3. peregrinatio operans.
4.Long vitam, princeps reliablity
5.A varietate contactus terminales
6.A varnety temperatus gradus
7.A variis vectibus
8.Adopt themosetting plastic vel themoplastic
9. Late usus in home apliane elecroninc apparatusautomatic apparatus communicationis equioncar electron, apparatus et 10. instrumentum motus electrici etc.

Microform SWITCH PB Details
