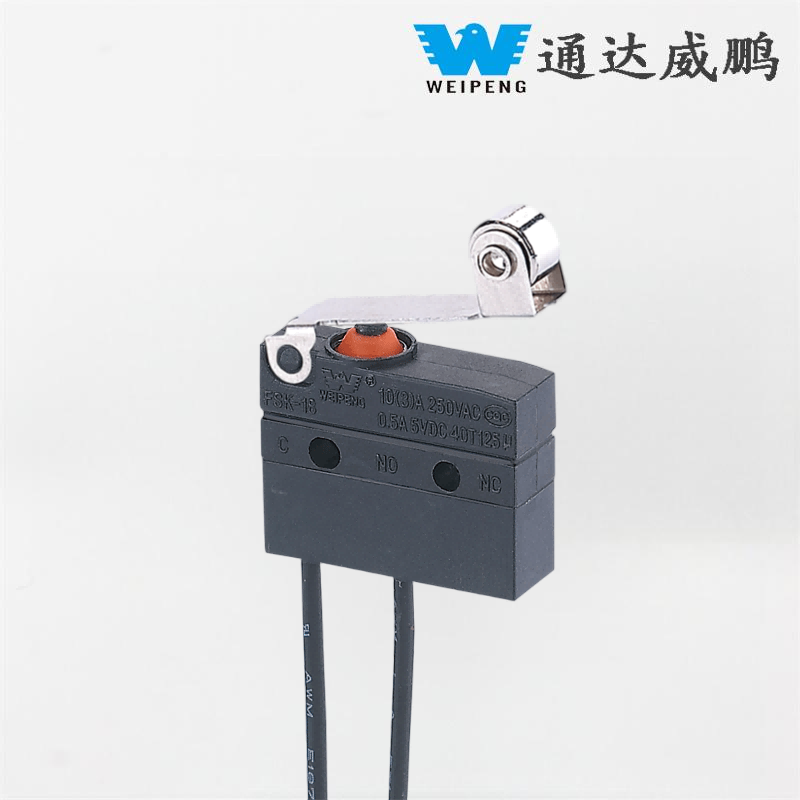

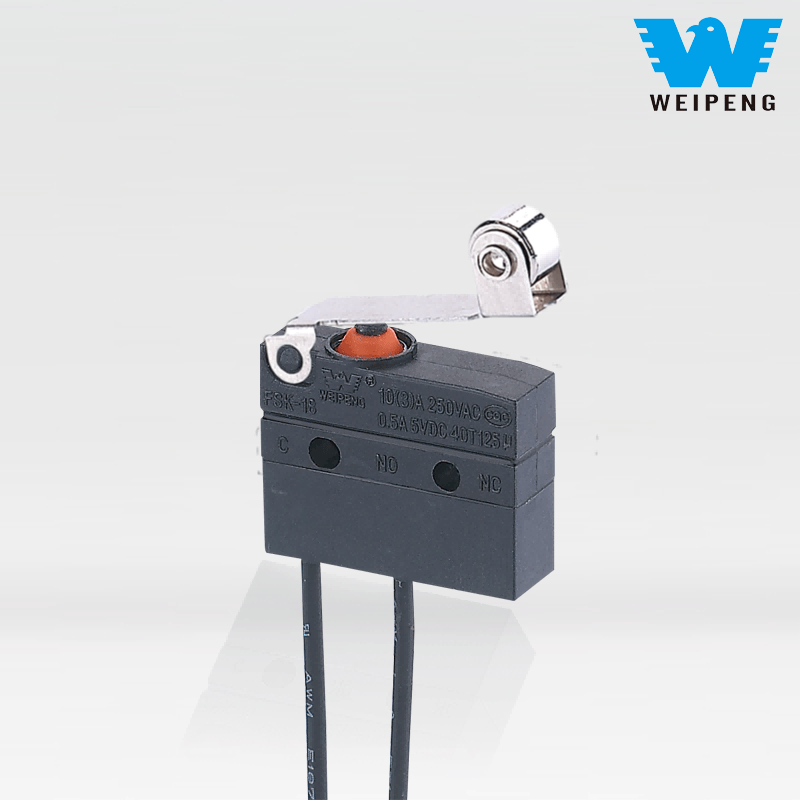

IP67 IMPERVIUS et Dustproof Micro Cie cum filis et variis vectibus

Sicut Probatio productum of Yueqing Tongda Cable Electric Factory (WEIPENG notam) in campo waterproof control, IP67 Waterproof et Dustproof Micro Switch cum filis et variis Levers facta est fiduciaria electio in potestate industriae, autocinetis electronicis, captiosis domo et aliis agris, ob nucleum suum commoda de 'IP67 protectione, alta vi mechanica et valida.

Model:FSK-18-D-004

Mitte Inquisitionem

depictio producti

LAMENTATIO®est ducensChina IP67 Waterproof and Dustproof Micro Switch with filis and Various Vevers fabricarers, suppliers et exporter.

IMPERVIUS Micro SWITCH PBIntroduction

Sicut Probatio producti Yueqing Tongda Cable Electric Factory (WEIPENG notam) in campo IMPERVIUS ditionis, FSK-18 mediocris IMPERVIUS switch facta est fiduciaria electio in potestate industrialis, autocinetis electronicis, dolor domi, et aliis agris per mercatum verificationem, propter nucleum vires "IP67 tutelae gradus, altae vires mechanicae et plenae-semulationis". Hoc opus adamussim fabricatum, "medium amplitudinis et roboris tutelae" perfecte librat convenientiam institutionis cum duris ambitus aptabilitatis, stabilis et certas solutiones pro inceptis domesticis et internationalibus bene notis providens, technicae peritiae societatis et magnarum fabricandi facultates in campo waterproof virgarum.

IMPERVIUS Micro SWITCH PB Applicatio

Familiae adjumentaIMPERVIUS cursores microformes late adhibentur in adjumenta domestica, ut machinis lavandis, leoninis, conditionis aeriis, etc. IMPERVIUS effectus eius normalem operationem switch in humido ambitu tueri potest.

IMPERVIUS Micro SWITCH PBParameter(specificatio)

Technical Characteres switch:
ITEM	Technical Parameter		Precium
1	Electrical Rating		0.1A 5(2)A 10(3)A 125/250VAC 0.1A 5A 36VDC
2	Operans Force		1.0~2.5N
3	Contactus Resistentia		≤300mΩ
4	Nulla Resistentia		≥100MΩ (500VDC)
5	Dielectric Voltage	inter non-connexa terminales	500V/0.5mA/60S
		Inter terminals et metallum artus	1500V/0.5mA/60S
6	Vita electrica		≥50000 circuitus
7	Mechanica Vita		≥100000 circuitus
8	Operating Temperature		-25~105℃
9	Operating Frequency		Electrical: XV circuitus Mechanica: LX circuitus
10	Vibratio Probatur		Vibratio Frequency :10~55HZ; Amplitude : 1.5 mm. Tres directiones: 1H
11	Facultates vendidit: Plus quam LXXX% de parte baptizati solida operietur		Temperature vendendi : 235± 5℃ Tempus baptizat: 2~3S
12	Solder Caloris Resistentia		Intingere solidamentum: 260±5℃ 5±1S Manuale solidamentum: 300±5℃ 2~3S
13	Tempestas test		Ambiens Temperature :20±5℃ Relativum Umor: 65±5% RH Pressura aeris: LXXXVI ~ 106KPa
