HK-XIV summus Temperature repugnans 16A 250V High-Current Micro SWITCH PB

Ut Probatio exemplar of Yueqing Tongda Wire Electric Factory Micro switch series, HK-14 High-Temperate resistens 16A 250V High-Current Proin Micro switch features "alta sensibilitas, ultra-longam vitam, et multi-sca- natio aptabilitas" pro core utilitates eius. Integrata societas XXXV annorum peritia fabricandi, facta est clavis moderaminis componentis in adjumenta domestica, electronica automativa, automationis industriae, et in aliis agris, propter minimam contactum hiatum et celerem actionem mechanismum. Eius effectus et commendatio certificata est per multiplices Instituta auctoritativas per orbem terrarum, obtinens suam amet positionem in foro iussisti.

Model:HK-14-16AP-606

Mitte Inquisitionem

depictio producti

WEIPEG® est ducensHK-XIV summus Temperature repugnans 16A 250V High-Current Micro SWITCH PB artifices, praebitores et exportatores.

Microform SWITCH PB

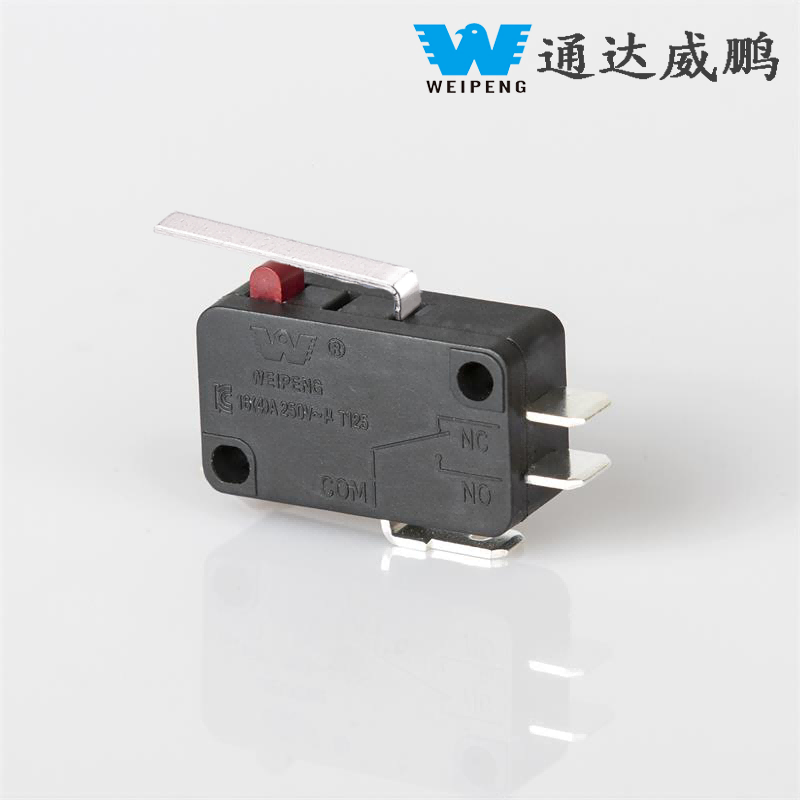

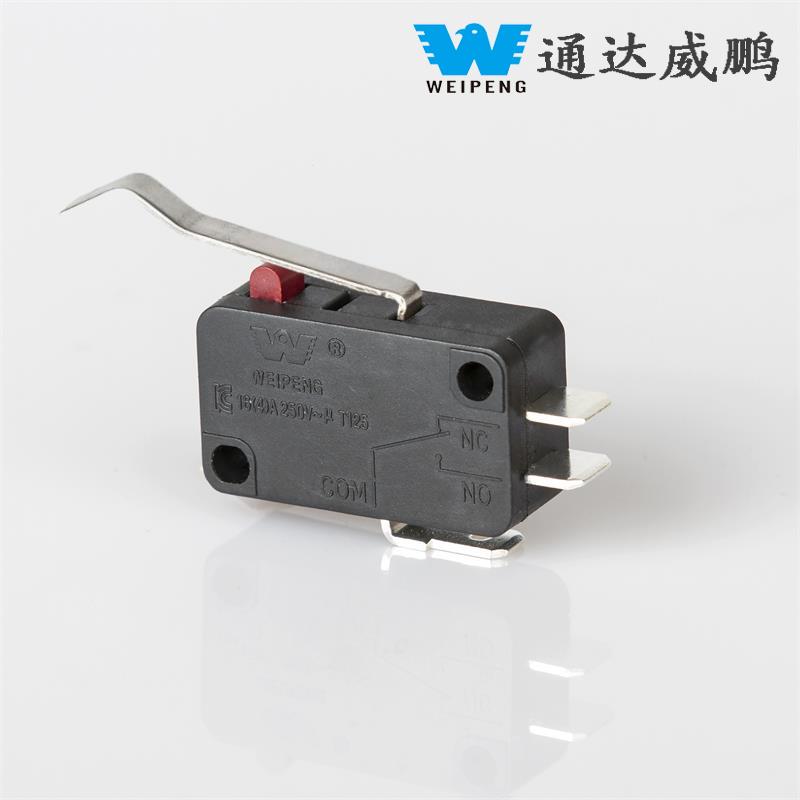

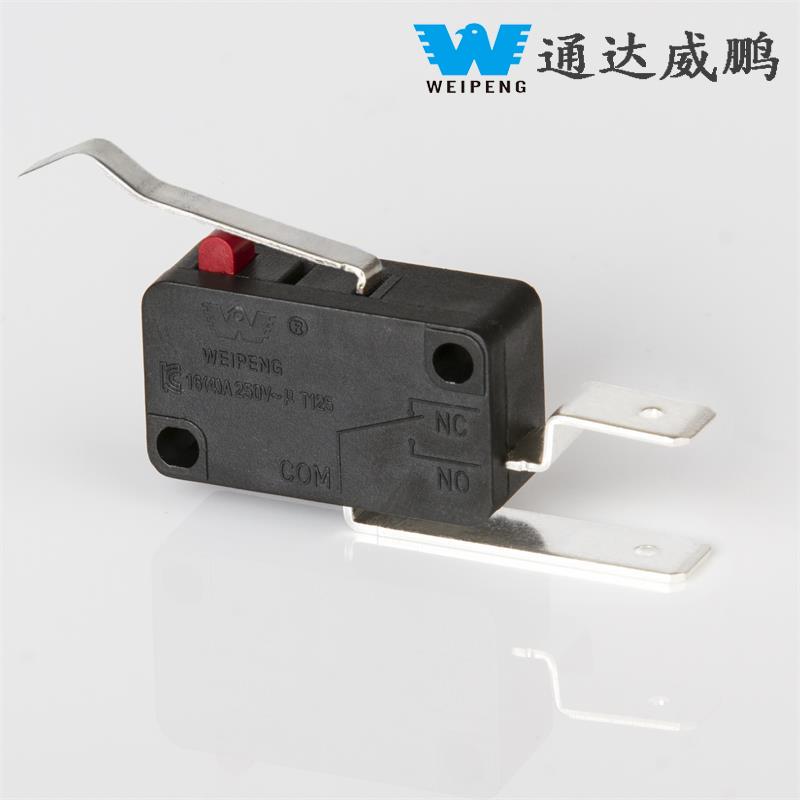

Series HK-XIV praebet optiones maxime flexibiles customizationes ut cum requisitis applicationum differentiarum. Vis operativa est customisabilis (minus quam 5.0N in statu leve sine 30±15gf, normaliter 30±15gf), cum ictu operante range 0.6 ad 1.5mm, varias vim felis et missiones obsessio accommodans. Vectis styli sunt customizabiles, vectibus rectis, vectibus inflexis, vectibus cylindrus, ad varias structuras mechanicas tradendas aptandas. Contactus typi includunt SPDT (1NO+1NC), NO, et NC plenam ambitum obtegentes, ad requisita unius ditionis, interlock, et alia circumscriptionis necessitates.

Institutionem et Ritus pretium

Cum inaugurari debet, transitum in superficie plana conscendi debet et cum fullonibus vel vernis fullonibus alligatum ne malfunction aut damnum in superficiebus inaequalibus causatur. Exemplaria elige in ambitu nixa: ob condiciones humidas vel pulverulentas, commendatur versioni consueta signatae uti ad tutelam augendam. Noli applicare oleum lubricationis ad bullam vel actum ne contactum haerentem, defectionem functionis, vel etiam burnoutem adhibeas. In repositione, productum in sicco, ventilato in area, a pluviis vel nivibus custoditum, custodi, et caliditatem et humiditatem quae canus componentis causat, procurans fructus pristinam observantiam retinet.

Microform Parameter SWITCH PB (specification)

Technical Characteres switch:
ITEM	Technical Parameter		Precium
1	Electrical Rating		5(2)A/10A/16(3)A/21(8)A 250VAC
2	Contactus Resistentia		≤30mΩ valorem initial
3	Nulla Resistentia		≥100MΩ (500VDC)
4	Dielectric Voltage	inter non-connexa terminales	1000V/0.5mA/60S
		Inter terminals et metallum artus	3000V/0.5mA/60S
5	Vita electrica		≥50000 circuitus
6	Mechanica vitae		≥1000000 circuitus
7	Temperature operating		-25~ 125℃
8	Operating Frequency		electrica :15 circuitus Mechanica: LX circuitus
9	Vibratio Probatur		Vibratio Frequentia: 10~55HZ; Amplitude : 1.5 mm. Tres directiones: 1H
10	Facultates vendidit: Plus quam LXXX% de parte baptizati solida operietur		Temperature vendendi : 235± 5℃ Tempus baptizat: 2~3S
11	Solder Caloris Resistentia		Intingere solidamentum: 260±5℃ 5±1S Manuale solidamentum: 300±5℃ 2~3S
12	Salus Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Tempestas Test		Ambiens Temperature :20±5℃ Relativum Umor: 65±5% RH Pressura aeris: LXXXVI ~ 106KPa

Microform switch Feature et Application

1.Sate, certa basic switch
2. Pulchra species, stricta contiguatio. Charactenistica: parva contactus dlearance, actio velox, magna sensibilitas et parva 3. peregrinatio operans.
4.Long vitam, princeps reliablity
5.A varietate contactus terminales
6.A varnety temperatus gradus
7.A variis vectibus
8.Adopt themosetting plastic vel themoplastic
9. Late usus in home apliane elecroninc apparatusautomatic apparatus communicationis equioncar electron, apparatus et 10. instrumentum motus electrici etc.

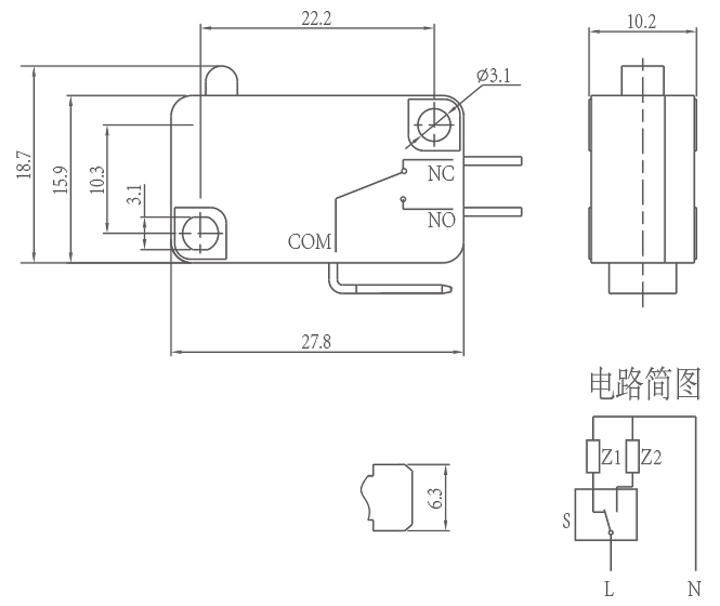

Microform SWITCH PB Details
