HK-XIV summus potentiae Micro SWITCH PB

Ut accumsan exemplar de Yueqing Tongda Wire Electric Factory microform series, HK-14 High-Power Micro Switch with Handle features "alta sensibilitas, ultra-longam vitam, et multi-scenario aptabilitas" pro core utilitates. Integrata societas XXXV annorum peritia fabricandi, facta est clavis moderaminis componentis in adjumenta domestica, electronica automativa, automationis industriae, et in aliis agris, propter minimam contactum hiatum et celerem actionem mechanismum.

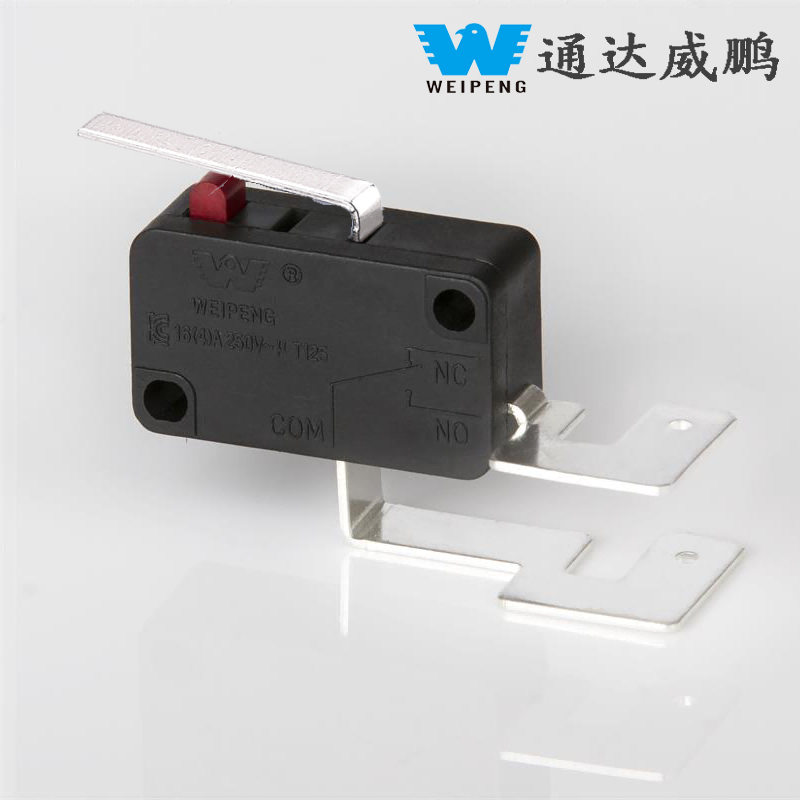

Model:HK-14-1X-16AP-814

Mitte Inquisitionem

depictio producti

WEIPEG® est ducensHK-XIV summus potentiae Micro SWITCH PB artifices, praebitores et exportatores. Societas duas bases majores productionis habet: eius praetorium in Yueqing et facilitatem in Qidong, Jiangsu, totam aream plus 40,000 metrorum quadratarum obtegens. Annua productio capacitatis seriei HK-14 10 decies centena millia unitates attingit, exigentiis magnae molis emit.

Microform SWITCH PB

Yueqing Tongda comprehensivam qualitatem administrationis systematis comprehendens totum processum ab 'rebus rudibus confectis productis confectis stabilivit'. Series HK-14 series 16 nucleum patitur experimentum e materia rudis mercimonia ad productum sit amet, inter contactum resistentiae probatio, Nulla persecutio probatio, intentione resistentia probatio, cyclus temperatus altus et humilis probatio, durabilitas premens probatio, aspergine probatio, vibratio probatio, et magis. Pro unaquaque massa productorum, 3% passim electae sunt ad limitem perniciosam probantes ut efficerent 100 officinam rate pass. Societas 20 plene automated praecisione linearum productionis instructa est, et internationalia probatio instrumenti provectus (qualia sunt Zeiss machinae mensurae coordinatae ex Germania et Dente electricae probator ab USA) ad stabilitatem operis curandam et perficiendam.

Application missiones

Domum Appliances: Proin porta imperium, machina programmata lavatio imperium, aer Conditioner fan celeritas temperatio, tuta operatio armorum procuranda

Industrialis Automatio: productio lineae positionis, finis imperium robot, TRADUCTOR initium-stium imperium, effectio efficientiae ex 35% meliore

Automotiva Electronics: fenestra elevatio, sedes temperatio, truncus sentiendi, curriculis in-vehiculis duris idoneus

Medicinae machinae: armorum chirurgicam potestatem, instrumentum deprehendendi signum excitato, signa salutis medicinae-gradus occurrens

Industry militaris: telum armorum imperium, ratio communicationis mutandi accommodans ad extremas operationes condiciones ac summas fidem requisita

Microform Parameter SWITCH PB (specification)

Technical Characteres switch:
ITEM	Technical Parameter		Precium
1	Electrical Rating		5(2)A/10A/16(3)A/21(8)A 250VAC
2	Contactus Resistentia		≤30mΩ valorem initial
3	Nulla Resistentia		≥100MΩ (500VDC)
4	Dielectric Voltage	inter non-connexa terminales	1000V/0.5mA/60S
		Inter terminals et metallum artus	3000V/0.5mA/60S
5	Vita electrica		≥50000 circuitus
6	Mechanica Vita		≥1000000 circuitus
7	Operating Temperature		-25~ 125℃
8	Operating Frequency		electrica :15 circuitus Mechanica: LX circuitus
9	Vibratio Probatur		Vibratio Frequentia: 10~55HZ; Amplitude : 1.5 mm. Tres directiones: 1H
10	Facultates vendidit: Plus quam LXXX% de parte baptizati solida operietur		Temperature vendendi : 235± 5℃ Tempus baptizat: 2~3S
11	Solarium Caloris Resistentia		Intingere solidamentum: 260±5℃ 5±1S Manuale solidamentum: 300±5℃ 2~3S
12	Salus Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Tempestas test		Ambiens Temperature :20±5℃ Relativum Umor: 65±5% RH Pressura aeris: LXXXVI ~ 106KPa

Microform switch Feature et Application

1.Sate, certa basic switch
2. Pulchra species, stricta contiguatio. Charactenistic: parva contactu dlearance, actio velox, magna sensibilitas et parva 3. peregrinatio operans.
4.Long vitam, princeps reliablity
5.A varietate contactus terminales
6.A varnety temperatus gradus
7.A variis vectibus
8.Adopt themosetting plastic vel themoplastic
9. Late usus in home apliane elecroninc apparatusautomatic apparatus communicationis equioncar electron, apparatus et 10. instrumentum motus electrici etc.

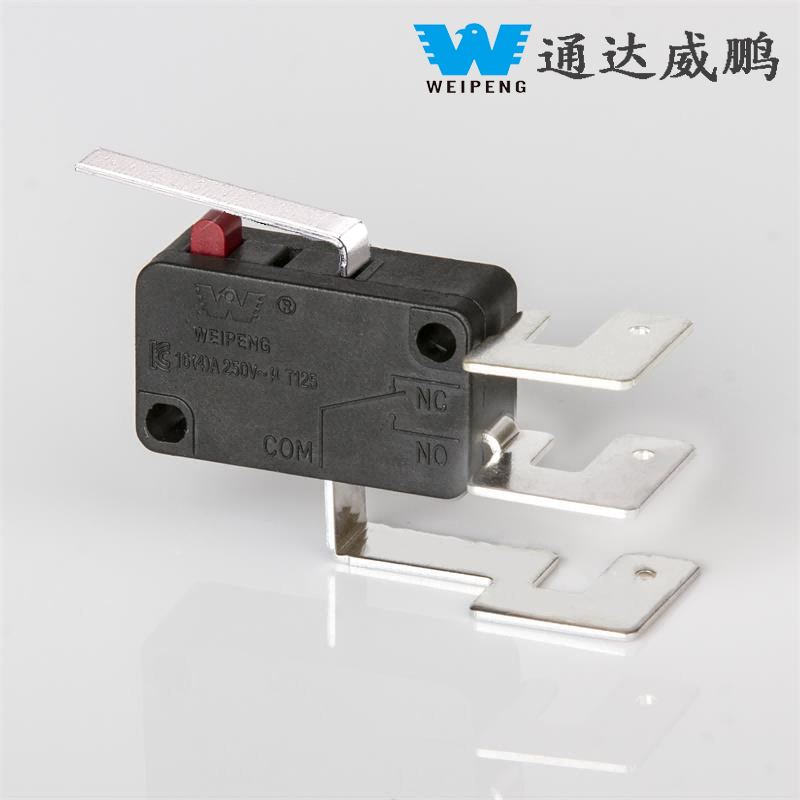

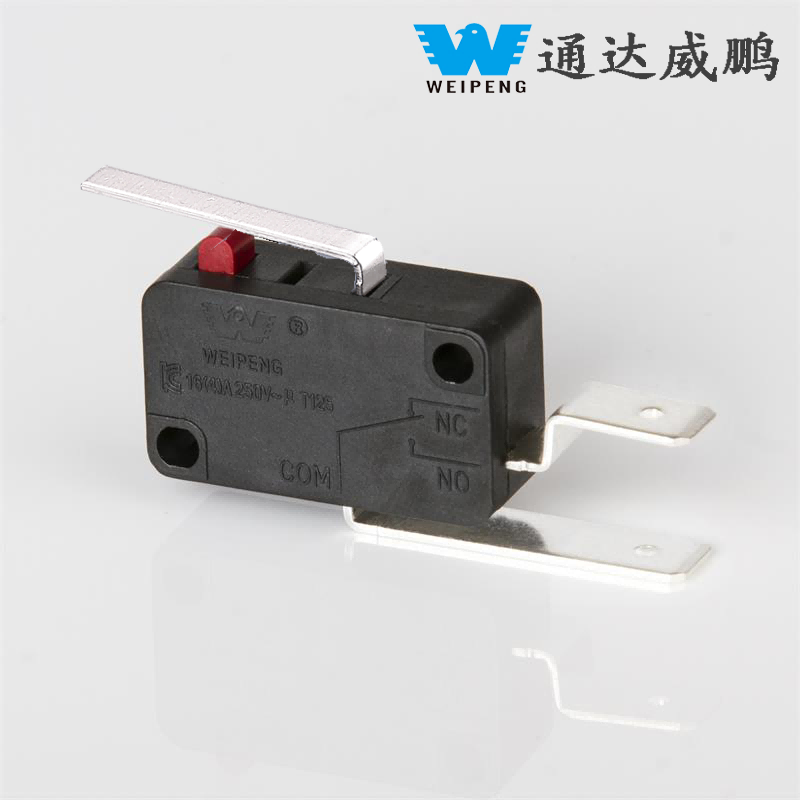

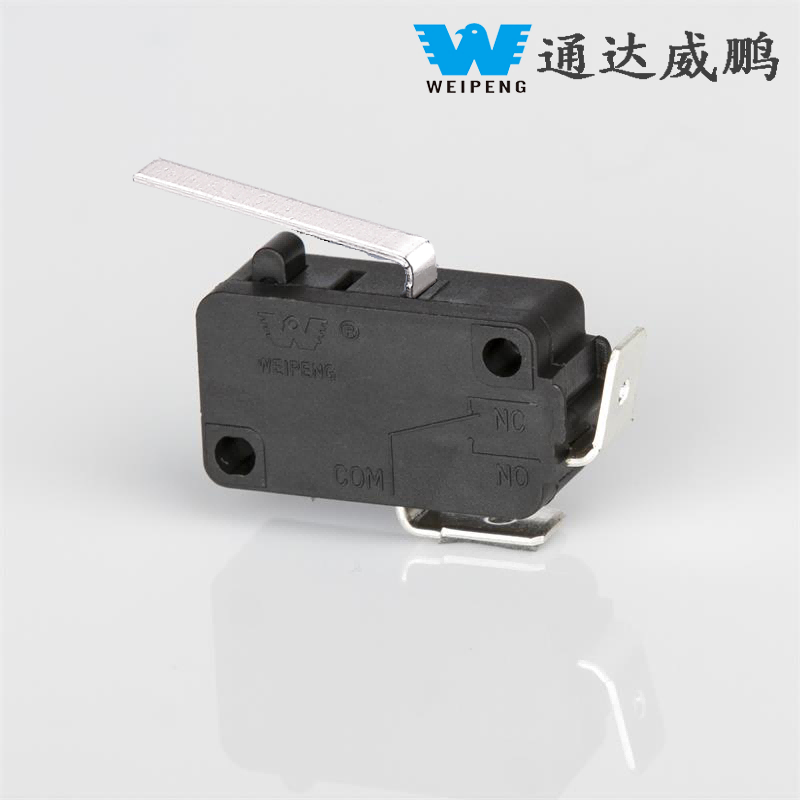

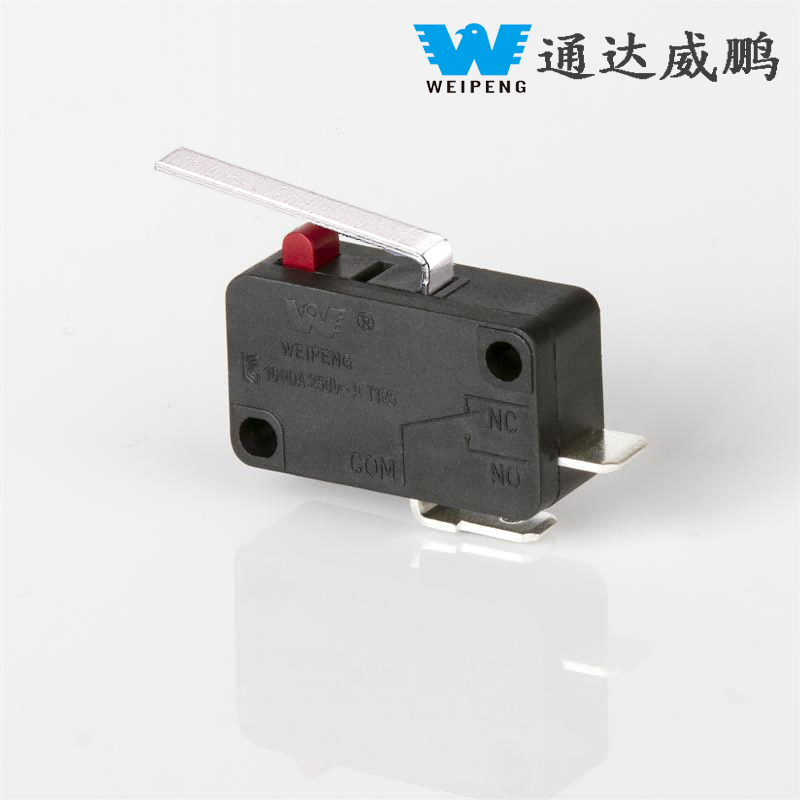

Microform SWITCH PB Details
