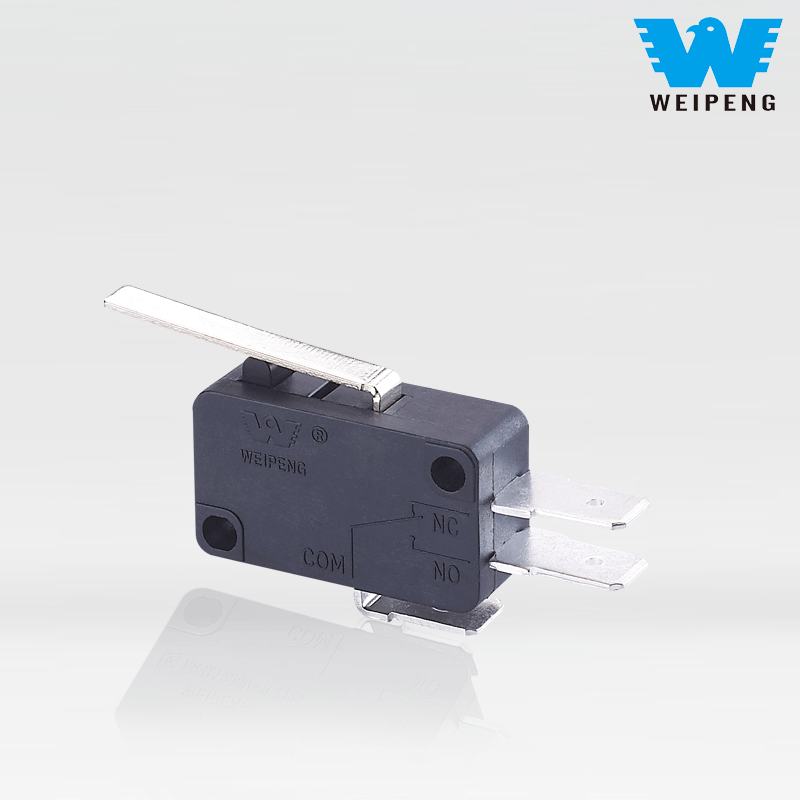

HK-XIV 21A summus Power Fail-tutus summus temperatus Micro SWITCH PB

Ut accumsan exemplar de Yueqing Tongda Wire Electric Factory microform series series, HK-14 21A High-Power Fail-Tutus summus Temperature Micro Commutatio features "sensibilitas altae, ultra-longae vitae, et multi-sca- nationis adaptabilitas" pro core utilitates eius. Integrata societas XXXV annorum peritia fabricandi, facta est clavis moderaminis componentis in adjumenta domestica, electronica automativa, automationis industriae, et in aliis agris, propter minimam contactum hiatum et celerem actionem mechanismum. Eius effectus et commendatio certificata est per multiplices Instituta auctoritativas per orbem terrarum, obtinens suam amet positionem in foro iussisti.

Model:HK-14-21AP-354

Mitte Inquisitionem

depictio producti

WEIPENG® princeps HK-14 21A summus potentiae Fail-tutus summus Temperaturae Micro Switch fabricatores, praebitores et exportatores.

Microform SWITCH PB

Mechanismum classicum actionum frangentium utens, responsio trigger tempus est ≤6ms, cum peregrinatione felis pressius inter 0.2-0.8mm moderata est. Vim operativam e 2-5N vagatur, providens pressionem rigidam et nitidam pressionem sentiendi sine ulla hysteresi vel haerente, permittens ad accuratam potestatem "tactus connectendi, dimissionem disiungendi". Contactus ex magno indumento obsistens argenteo stannum fiunt et cum processu tunicae vacuo tractantur. Contactus initialis resistentiae est ≤25mΩ et onus aestimatum sustinet 1A/250V AC vel 3A/125V AC, efficaciter resistens arcui exesi et contactum tus ex usu magno frequentiae causatum prohibens.

Aptabilitas environmental aeque gravis est. Productum in amplitudine temperatura ab -25℃ ad 125 operate operari potest, tres axis vibrationis experimentum ad 10-55Hz cum amplitudine 1.5mm transire, velitam resistentiam ≥100MΩ (500VDC), sustinere et intentionem 1000V AC inter terminales efficere, stabilis effectus etiam in officina vibrationis culturae industriae vel condiciones machinis altae temperaturae.

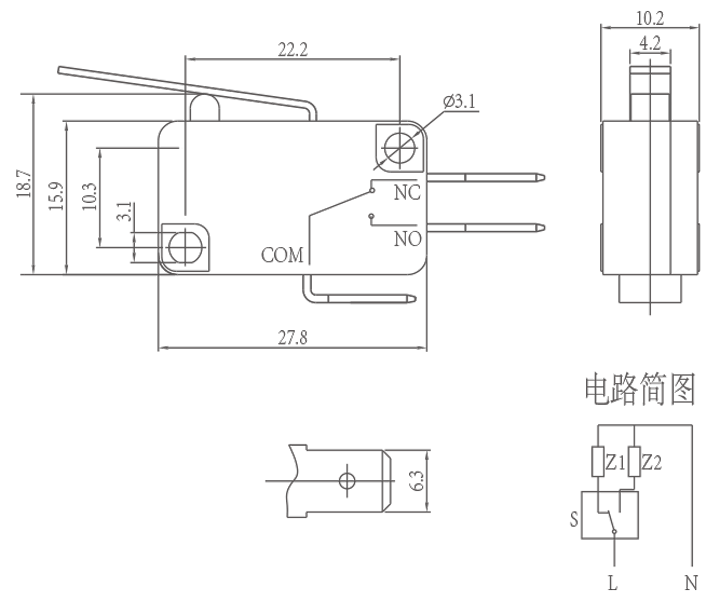

Microform Parameter SWITCH PB (specification)

Technical Characteres switch:
ITEM	Technical Parameter		Precium
1	Electrical Rating		5(2)A/10A/16(3)A/21(8)A 250VAC
2	Contactus Resistentia		≤30mΩ valorem initial
3	Nulla Resistentia		≥100MΩ (500VDC)
4	Dielectric Voltage	inter non-connexa terminales	1000V/0.5mA/60S
		Inter terminals et metallum artus	3000V/0.5mA/60S
5	Vita electrica		≥50000 circuitus
6	Mechanica Vita		≥1000000 circuitus
7	Temperature operating		-25~ 125℃
8	Operating Frequency		electrica :15 circuitus Mechanica: LX circuitus
9	Vibratio Probatur		Vibratio Frequentia: 10~55HZ; Amplitude : 1.5 mm. Tres directiones: 1H *
10	Facultates vendidit: Plus quam LXXX% de parte baptizati solida operietur		Temperature vendendi : 235± 5℃ Tempus baptizat: 2~3S
11	Solder Caloris Resistentia		Intingere solidamentum: 260±5℃ 5±1S Manuale solidamentum: 300±5℃ 2~3S
12	Salus Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Tempestas Test		Ambiens Temperature :20±5℃ Relativum Umor: 65±5% RH Pressura aeris: LXXXVI ~ 106KPa

Microform switch Feature et Application

1.Sate, certa basic switch
2. Pulchra species, stricta contiguatio. Charactenistic: parva contactu dlearance, actio velox, magna sensibilitas et parva 3. peregrinatio operans.
4.Long vitam, princeps reliablity
5.A varietate contactus terminales
6.A varnety temperatus gradus

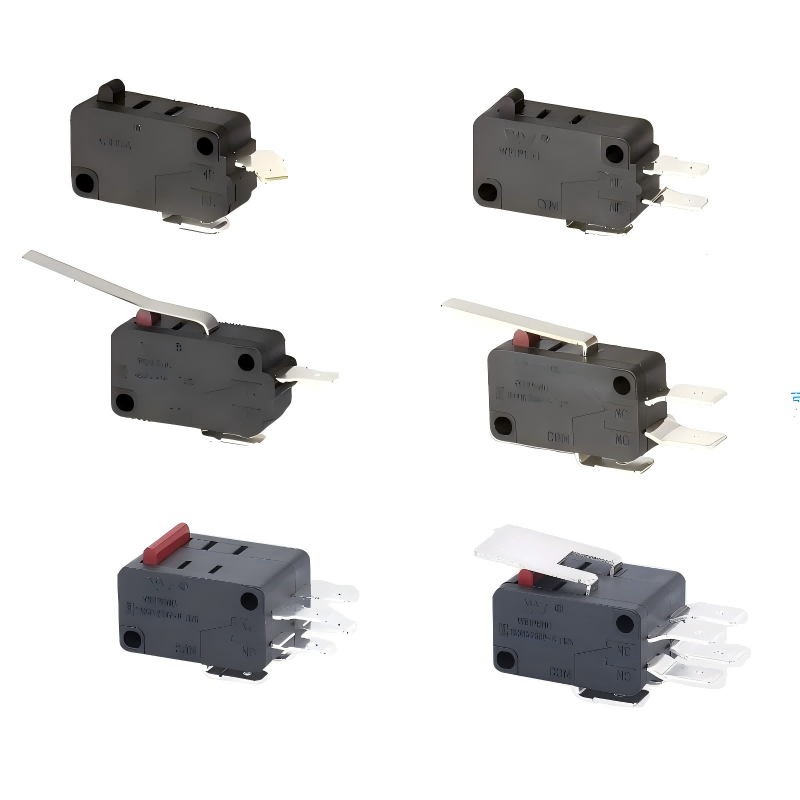

7.A variis vectibus
8.Adopt themosetting plastic vel themoplastic
9. Late usus in home apliane elecroninc apparatusautomatic apparatus communicationis equioncar electron, apparatus et 10. instrumentum motus electrici etc.

Microform SWITCH PB Details
