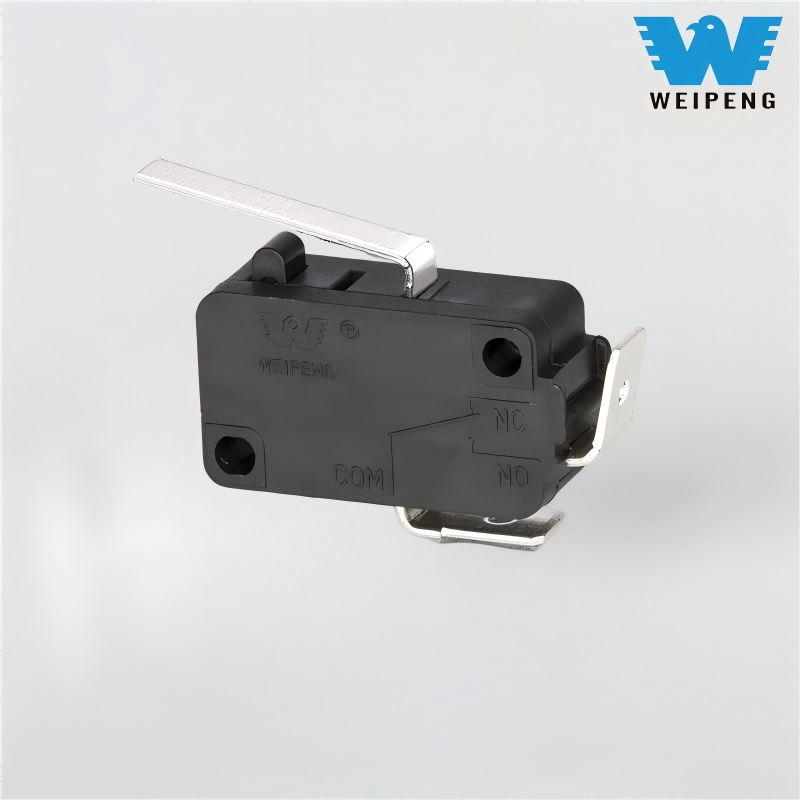

Summus sensus magna Micro Cie cum Lever

Sicut Probatio exemplar of Yueqing Tongda Wire Electric Factory microform series, summus Sensibilitas Magnae Micro Switch cum Lever features "alta sensibilitas, ultra-longam vitam, et multi-scenario aptabilitas" pro core utilitates eius. Integrata societas XXXV annorum peritia fabricandi, facta est clavis moderaminis componentis in adjumenta domestica, electronica automativa, automationis industriae, et in aliis agris, propter minimam contactum hiatum et celerem actionem mechanismum. Eius effectus et commendatio certificata est per multiplices Instituta auctoritativas per orbem terrarum, obtinens suam amet positionem in foro iussisti.

Model:HK-14-1X-16A-260

Mitte Inquisitionem

depictio producti

WEIPEG® est ducensSummus sensus magna Micro Cie cum Lever artifices, praebitores et exportatores.

Microform SWITCH PB

Series HK-14 nuclei adhibita featuring "argentum mixturae contactus cum mechanismo celeri-actionis patented". Contactus ex AgSnO₂ oxydatum argenteum stannum materiale efficiunt et processus tunicae vacuum subeunt, cum contactu resistentiae ≤50mΩ fiunt, stabilis currentis transmissio sine diminutione procurans et efficaciter praeveniens moras vel pauperes contactus per contactum oxidationis causans. Responsorium trigger tempus est ≤5ms, et plaga deviationis operans intra ±0.05mm moderatur, cum sensibilitate felis signa industriae longe excedens. Ad varias felis mechanicas requisitiones, series praebet comprehensivam extensionem actuatoris vectis iuncturas, inclusa 8 genera vectium: breve brachium, longum bracchium, cylindrus (praesto in nylon vel metallo), pyga, furca, etc., praecise adaptans varias conditiones ut machinationes gyratoriae, motus lineares machinis ac dis-typus moderantia.

Typical Popular Models and Application Missiones:

HK-14-1X-16A-P-200: Communiter aperta, 16A 250VAC, cylindrus actuator virga metalli - aptus ad limitandum imperium in lineas productionis automationis industrialis, cylindrus consilium redigit ad usum mechanicum

HK-14-1-16AP-715: Communiter occlusus 16A 250VAC, brevis cardo cylindrus actuator baculi - in instrumento experimenti medici apto ad accuratam excitato, normaliter clausus designans securitatem praebet cum powered off

HK-14-16AP-605: Changeover type, 16A 250VAC, magnae temperaturae consilium — aptae ad temperaturas magnas virgas in nova industria vehiculorum altilium sarcinas, -40°C~ 125°C ampla temperatura range aptat extremae ferendum ambitus

HK-14-1X-5A-320: Communiter aperta, 5A 250VAC, pyga-typus actuator virgae - aptae ad Proin fores osseas virgas, responsurum instans, summus gradus praesidium salutis

Application missiones

Domum Appliances: Proin porta imperium, machina programmata lavatio imperium, aer Conditioner fan celeritas temperatio, tuta operatio armorum procuranda

Industrialis Automatio: productio lineae positionis, finis imperium robot, TRADUCTOR initium-stium imperium, effectio efficientiae ex 35% meliore

Automotiva Electronics: fenestra elevatio, sedes temperatio, truncus sentiendi, curriculis in-vehiculis duris idoneus

Medicinae machinae: armorum chirurgicam potestatem, instrumentum deprehendendi signum excitato, signa salutis medicinae-gradus occurrens

Industry militaris: telum armorum imperium, fabrica commercium communicationis, accommodans ad extremas operationes condiciones ac summas fidem requisita

Microform Parameter SWITCH PB (specification)

Technical Characteres switch:
ITEM	Technical Parameter		Precium
1	Electrical Rating		5(2)A/10A/16(3)A/21(8)A 250VAC
2	Contactus Resistentia		≤30mΩ valorem initial
3	Nulla Resistentia		≥100MΩ (500VDC)
4	Dielectric Voltage	inter non-connexa terminales	1000V/0.5mA/60S
		Inter terminals et metallum artus	3000V/0.5mA/60S
5	Vita electrica		≥50000 circuitus
6	Mechanica Vita		≥1000000 circuitus
7	Operating Temperature		-25~ 125℃
8	Operating Frequency		electrica :15 circuitus Mechanica: LX circuitus
9	Vibratio Probatur		Vibratio Frequentia: 10~55HZ; Amplitude : 1.5 mm. Tres directiones: 1H
10	Facultates vendidit: Plus quam LXXX% de parte baptizati solida operietur		Temperature vendendi : 235± 5℃ Tempus baptizat: 2~3S
11	Solder Caloris Resistentia		Intingere solidamentum: 260±5℃ 5±1S Manuale solidamentum: 300±5℃ 2~3S
12	Salus Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Tempestas test		Ambiens Temperature :20±5℃ Relativum Umor: 65±5% RH Pressura aeris: LXXXVI ~ 106KPa

Microform switch Feature et Application

1.Sate, certa basic switch
2. Pulchra species, stricta contiguatio. Charactenistic: parva contactu dlearance, actio velox, magna sensibilitas et parva 3. peregrinatio operans.
4.Long vitam, princeps reliablity
5.A varietate contactus terminales
6.A varnety temperatus gradus
7.A variis vectibus
8.Adopt themosetting plastic vel themoplastic
9. Late usus in home apliane elecroninc apparatusautomatic apparatus communicationis equioncar electron, apparatus et 10. instrumentum motus electrici etc.

Microform SWITCH PB Details
