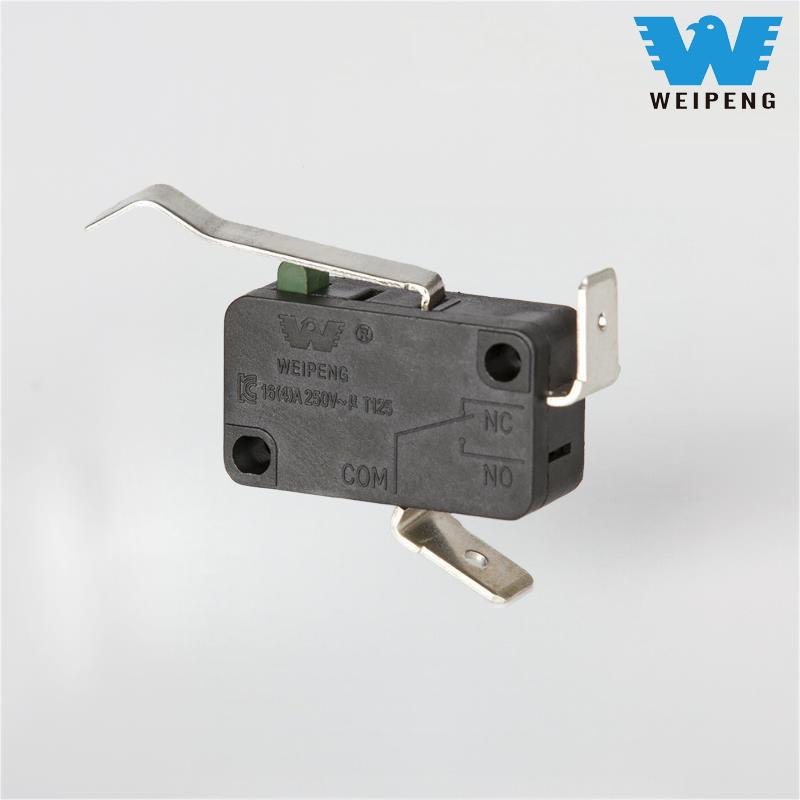

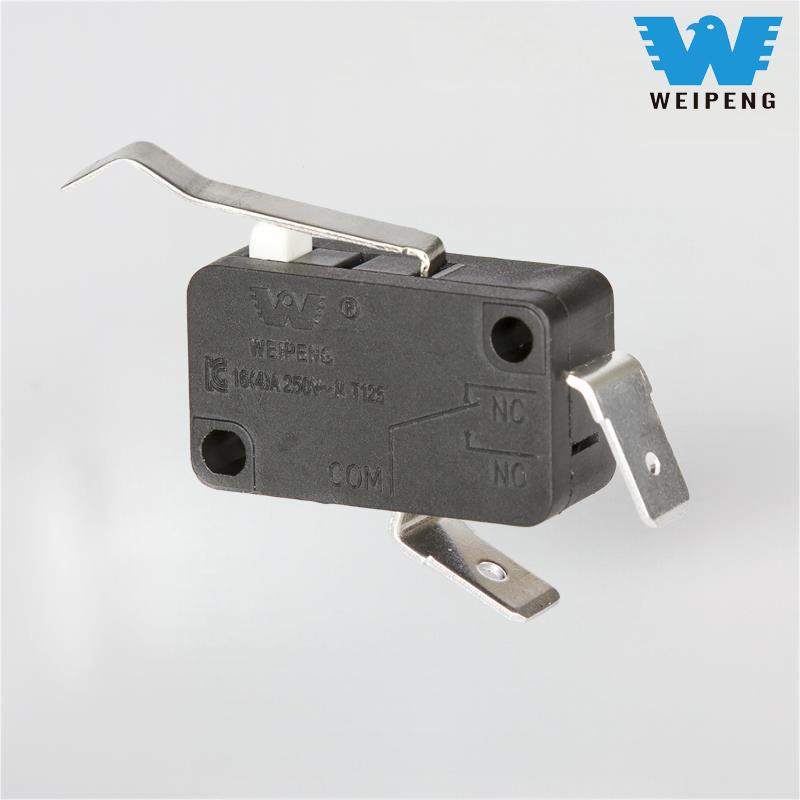

Summus Current Duo Terminal Micro Cie ad Familiares Appliances

Ut accumsan exemplar de Yueqing Tongda Wire Electric Factory microform series, princeps Current Duo-Terminal Micro Switch ad domestici Adjumentum features "alta sensibilitas, ultra-longam vitam, et multi-sca- natio aptabilitas" pro core utilitates eius. Integrata societas XXXV annorum peritia fabricandi, facta est clavis moderaminis componentis in adjumenta domestica, electronica automativa, automationis industriae, et in aliis agris, propter minimam contactum hiatum et celerem actionem mechanismum. Eius effectus et commendatio certificata est per multiplices Instituta auctoritativas per orbem terrarum, obtinens suam amet positionem in foro iussisti.

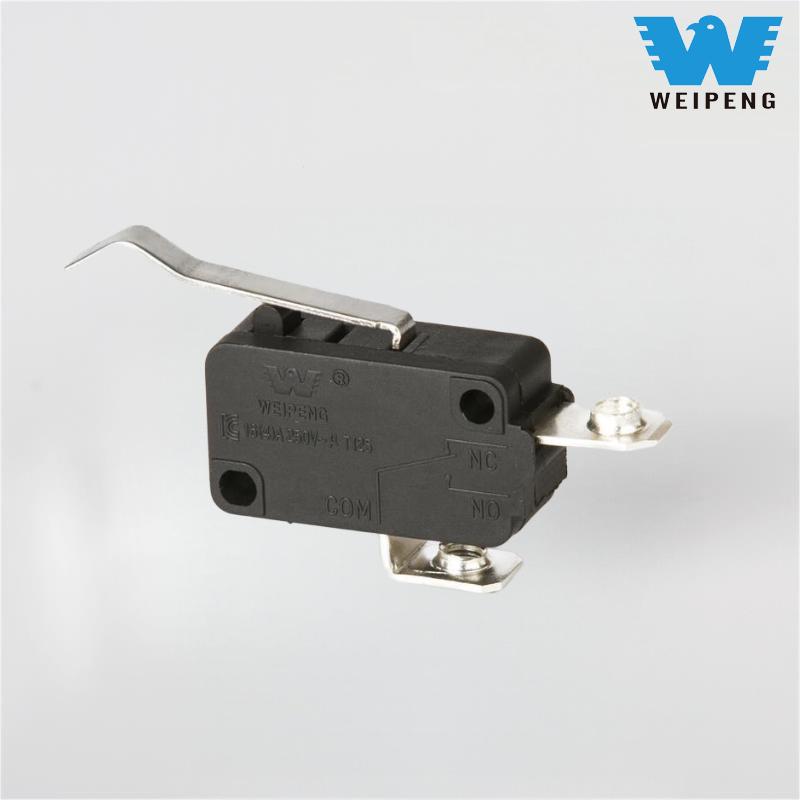

Model:HK-14-1-16A-122

Mitte Inquisitionem

depictio producti

WEIPEG® est ducensSummus Current Duo Terminal Micro Cie ad Familiares Appliancesartifices, praebitores et exportatores.

Microform SWITCH PB

Core Technology Commoda

1. Precise Trigger Mechanismum

Contactus stannum argenteum utitur cum mechanismo celeri actionis, contactus resistentiae ≤50mΩ, stabili et accurato signo transmissionis procurando.

Plaga operationis minimalis erroris et sensibilitatis felis altae, apta ad praecisionem missionum ditionis.

Variis vectibus coegi praesto (brachium breve, brachium longum, cylindrum, globulum, etc.) ad diversas necessitates mechanicas excitandas.

2. ultra-Long Service Vita

Mechanica vitae spatium 1 decies cyclos excedit, vitae electricae usque ad 50.000 cyclos; nuclei nuclei efficiuntur altae temperaturae-repugnantes machinarum materiarum materiarum et metallorum nobilissimi roboris, obtemperans signis internationalibus EN 61058-1

Electrical operating frequentatio XV vicibus / min potest pervenire, mechanica frequentia operandi usque ad LX tempora/min, apta ad operationes frequentiae summus.

Certification Status

Salutis internationalis et domestica multa certificationes ut UL, CSA, VDE, EEC, TUV, CE, KC, CQC consecuta est, et etiam ISO9001 qualitatem administrationis certificationis systematis acquisivit, quale productum procurans.

Applicationem Areas

Late adhibentur in adjumenta domestica, machinas electronicas, machinas automationes, instrumenta communicationis, electronics automotives, instrumenta et metra, instrumenta potentiae, et in aliis campis. Exempli gratia, late in parvis adjumentis familia usus est sicut oryzae coqui.

Microform Parameter SWITCH PB (specification)

Technical Characteres switch:
ITEM	Technical Parameter		Precium
1	Electrical Rating		5（2)A/10A/16(3)A/21（8）A 250VAC
2	Contactus Resistentia		≤30mΩ valorem initial
3	Nulla Resistentia		≥100MΩ (500VDC)
4	Dielectric Voltage	inter non-connexa terminales	1000V/0.5mA/60S
		Inter terminals et metallum artus	3000V/0.5mA/60S
5	Vita electrica		≥50000 circuitus
6	Mechanica Vita		≥1000000 circuitus
7	Operating Temperature		-25~ 125℃
8	Operating Frequency		electrica :15 circuitus Mechanica: LX circuitus
9	Vibratio Probatur		Vibratio Frequentia: 10~55HZ; Amplitude : 1.5 mm. Tres directiones: 1H
10	Facultates vendidit: Plus quam LXXX% de parte baptizati solida operietur		Temperature vendendi : 235± 5℃ Tempus baptizat: 2~3S
11	Solder Caloris Resistentia		Intingere solidamentum: 260±5℃ 5±1S Manuale solidamentum: 300±5℃ 2~3S
12	Salus Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Tempestas test		Ambiens Temperature :20±5℃ Relativum Umor: 65±5% RH Pressura aeris: LXXXVI ~ 106KPa

Microform switch Feature et Application

1.Sate, certa basic switch
2. Pulchra species, stricta contiguatio. Charactenistic: parva contactu dlearance, actio velox, magna sensibilitas et parva 3. peregrinatio operans.
4.Long vitam, princeps reliablity
5.A varietate contactus terminales
6.A varnety temperatus gradus
7.A variis vectibus
8.Adopt themosetting plastic vel themoplastic
9. Late usus in home apliane elecroninc apparatusautomatic apparatus communicationis equioncar electron, apparatus et 10. instrumentum motus electrici etc.
