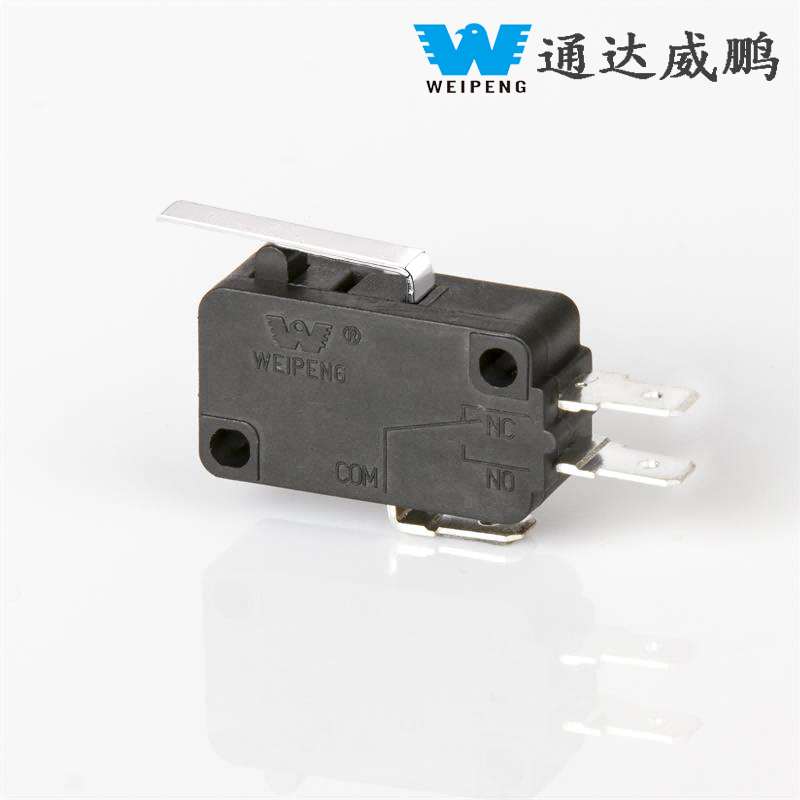

Summus Current Tres-Terminal Proin Clibano Micro SWITCH

Ut accumsan exemplar de Yueqing Tongda Wire Electric Factory microform series, princeps-Current Tres-Terminal Proin Oven Microform features "Sensibilitas altae, ultra-longae vitae, et multi-scenario aptabilitas" pro core utilitates eius. Integrata societas XXXV annorum peritia fabricandi, facta est clavis moderaminis componentis in adjumenta domestica, electronica automativa, automationis industriae, et in aliis agris, propter minimam contactum hiatum et celerem actionem mechanismum. Eius effectus et commendatio certificata est per multiplices Instituta auctoritativas per orbem terrarum, obtinens suam amet positionem in foro iussisti.

Model:HK-14-10A-307

Mitte Inquisitionem

depictio producti

WEIPEG® est ducensSummus Current Tres-Terminal Proin Clibano Micro SWITCH artifices, praebitores et exportatores.

Microform SWITCH PB

Series HK-14 multiplex onera aestimata comprehendit cum specificationibus amet 5A/10A/16A ad 125/250V inclusis AC potentia requisita pro variis missionibus occurrens. Core electricae effectus est optimum: contactus initialis resistentiae ≤25mΩ, conductionis low-demissionis procurans; Nulla resistentia ≥100MΩ (DC 500V), cum resistentia intentionis 1500V AC (inter terminales), efficaciter periculum lacus praeveniens. Vita mechanica usque ad 1 decies cyclos attingit, et vitalium electricae usui magno frequentiae diuturno convenit, cum frequentia operativa usque ad 600 cyclos mechanicos per minutos et 30 cyclos electricas per minutos, diuturnitatem et celeritatem responsionis aequans.

Typical Application missiones

Propter summam aptabilitatem, series HK-14 late adhibetur in instrumento nucleo per multiplices agros;

Domum Adjumentum: Proin porta control, lavatio apparatus programmatis control, clibanus tortor felis, aqua dispensator switch;

Industriae Automation: Peregrinatio limitis, TRADUCTOR positionis, machinae parvae subitis sistendi fabrica, instrumenta test signum felis;

Automotive Electronics: Car ostium clausum detectio, sedes moderatio limitis, truncus switch, potestas fenestra imperium;

Potestas instrumenta: potentia terebra, angulus MOLARIS committitur/statur switch, instrumentum oneris tutelae felis;

Instrumenta et Apparatus: Bullae medicae fabricae, instrumenti mensurae virgas peregrinationes, instrumentum communicationis insigne mutandi.

Microform Parameter SWITCH PB (specification)

Technical Characteres switch:
ITEM	Technical Parameter		Precium
1	Electrical Rating		5(2)A/10A/16(3)A/21(8)A 250VAC
2	Contactus Resistentia		≤30mΩ valorem initial
3	Nulla Resistentia		≥100MΩ (500VDC)
4	Dielectric Voltage	inter non-connexa terminales	1000V/0.5mA/60S
		Inter terminals et metallum artus	3000V/0.5mA/60S
5	Vita electrica		≥50000 circuitus
6	Mechanica vitae		≥1000000 circuitus
7	Temperature operating		-25~ 125℃
8	Operating Frequency		electrica :15 circuitus Mechanica: LX circuitus
9	Vibratio Probatur		Vibratio Frequentia: 10~55HZ; Amplitude : 1.5 mm. Tres directiones: 1H
10	Facultates vendidit: Plus quam LXXX% de parte baptizati solida operietur		Temperature vendendi : 235± 5℃ Tempus baptizat: 2~3S
11	Solder Caloris Resistentia		Intingere solidamentum: 260±5℃ 5±1S Manuale solidamentum: 300±5℃ 2~3S
12	Salus Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Tempestas Test		Ambiens Temperature :20±5℃ Relativum Umor: 65±5% RH Pressura aeris: LXXXVI ~ 106KPa

Microform switch Feature et Application

1.Sate, certa basic switch
2. Pulchra species, stricta contiguatio. Charactenistica: parva contactus dlearance, actio velox, magna sensibilitas et parva 3. peregrinatio operans.
4.Long vitam, princeps reliablity
5.A varietate contactus terminales
6.A varnety temperatus gradus
7.A variis vectibus
8.Adopt themosetting plastic vel themoplastic
9. Late usus in home apliane elecroninc apparatusautomatic apparatus communicationis equioncar electron, apparatus et 10. instrumentum motus electrici etc.

Microform SWITCH PB Details
