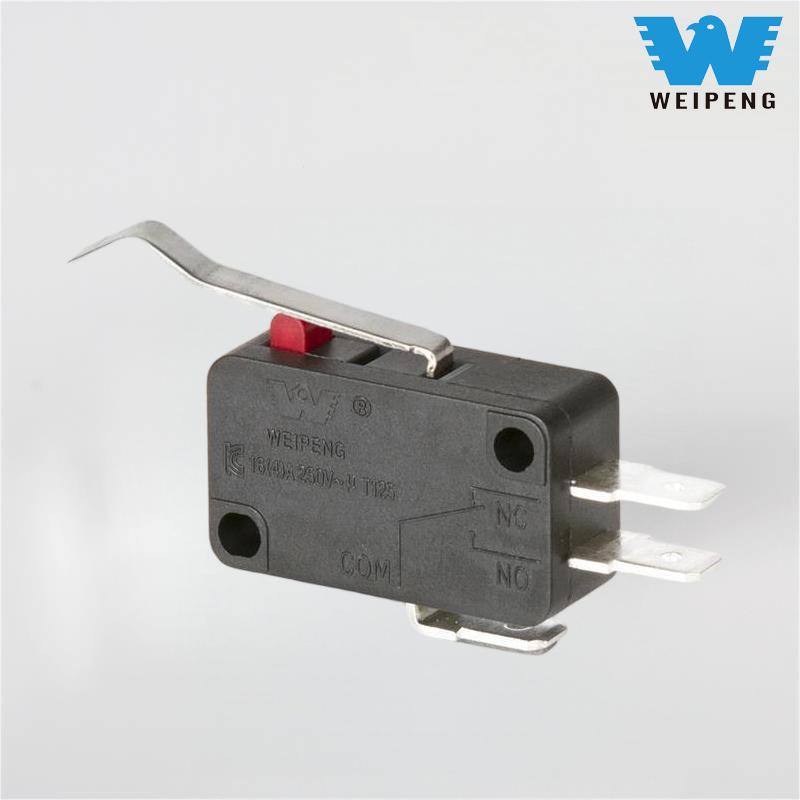

Summus Current Tres-pin Electro Magnetic Stove Micro SWITCH PB

Ut accumsan exemplar de Yueqing Tongda Wire Electric Factory microform series, summus Current Tres-pin Electromagneticus Stove Micro Cie features "alta sensibilitas, ultra-longam vitam, et multi-scaenarum aptabilitas" pro core utilitates. Integrata societas XXXV annorum peritia fabricandi, facta est clavis moderaminis componentis in adjumenta domestica, electronica automativa, automationis industriae, et in aliis agris, propter minimam contactum hiatum et celerem actionem mechanismum. Eius effectus et commendatio certificata est per multiplices Instituta auctoritativas per orbem terrarum, obtinens suam amet positionem in foro iussisti.

Model:HK-14-16A-599

Mitte Inquisitionem

depictio producti

WEIPEG® est ducensSummus Current Tres-pin Electro Magnetic Stove Micro SWITCH PB artifices, praebitores et exportatores.

Microform SWITCH PB

Series HK-14 multiplex onera aestimata comprehendit cum specificationibus amet 5A/10A/16A ad 125/250V inclusis AC potentia requisita pro variis missionibus occurrens. Core electricae effectus est optimum: contactus initialis resistentiae ≤25mΩ, conductionis low-demissionis procurans; Nulla resistentia ≥100MΩ (DC 500V), cum resistentia intentionis 1500V AC (inter terminales), efficaciter periculum lacus praeveniens. Vita mechanica usque ad 1 decies cyclos attingit, et vitalium electricae usui magno frequentiae diuturno convenit, cum frequentia operativa usque ad 600 cyclos mechanicos per minutos et 30 cyclos electricas per minutos, diuturnitatem et celeritatem responsionis aequans.

Institutionem et Ritus pretium

Cum inaugurari debet, transitum in superficie plana conscendi debet et cum fullonibus vel vernis fullonibus alligatum ne malfunction aut damnum in superficiebus inaequalibus causatur. Exemplaria elige in ambitu nixa: ob condiciones humidas vel pulverulentas, commendatur versioni consueta signatae uti ad tutelam augendam. Noli applicare oleum lubricationis ad bullam vel actum ne contactum haerentem, defectionem functionis, vel etiam burnoutem adhibeas. In repositione, productum in sicco, ventilato in area, a pluviis vel nivibus custoditum, custodi, et caliditatem et humiditatem quae canus componentis causat, procurans fructus pristinam observantiam retinet.

Microform Parameter SWITCH PB (specification)

Technical Characteres switch:
ITEM	Technical Parameter		Precium
1	Electrical Rating		5(2)A/10A/16(3)A/21(8)A 250VAC
2	Contactus Resistentia		≤30mΩ valorem initial
3	Nulla Resistentia		≥100MΩ (500VDC)
4	Dielectric Voltage	inter non-connexa terminales	1000V/0.5mA/60S
		Inter terminals et metallum artus	3000V/0.5mA/60S
5	Vita electrica		≥50000 circuitus
6	Mechanica vitae		≥1000000 circuitus
7	Temperature operating		-25~ 125℃
8	Operating Frequency		electrica :15 circuitus Mechanica: LX circuitus
9	Vibratio Probatur		Vibratio Frequentia: 10~55HZ; Amplitude : 1.5 mm. Tres directiones: 1H
10	Facultates vendidit: Plus quam LXXX% de parte baptizati solida operietur		Temperature vendendi : 235± 5℃ Tempus baptizat: 2~3S
11	Solder Caloris Resistentia		Intingere solidamentum: 260±5℃ 5±1S Manuale solidamentum: 300±5℃ 2~3S
12	Salus Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Tempestas Test		Ambiens Temperature :20±5℃ Relativum Umor: 65±5% RH Pressura aeris: LXXXVI ~ 106KPa

Microform switch Feature et Application

1.Sate, certa basic switch
2. Pulchra species, stricta contiguatio. Charactenistica: parva contactus dlearance, actio velox, magna sensibilitas et parva 3. peregrinatio operans.
4.Long vitam, princeps reliablity
5.A varietate contactus terminales
6.A varnety temperatus gradus
7.A variis vectibus
8.Adopt themosetting plastic vel themoplastic
9. Late usus in home apliane elecroninc apparatusautomatic apparatus communicationis equioncar electron, apparatus et 10. instrumentum motus electrici etc.

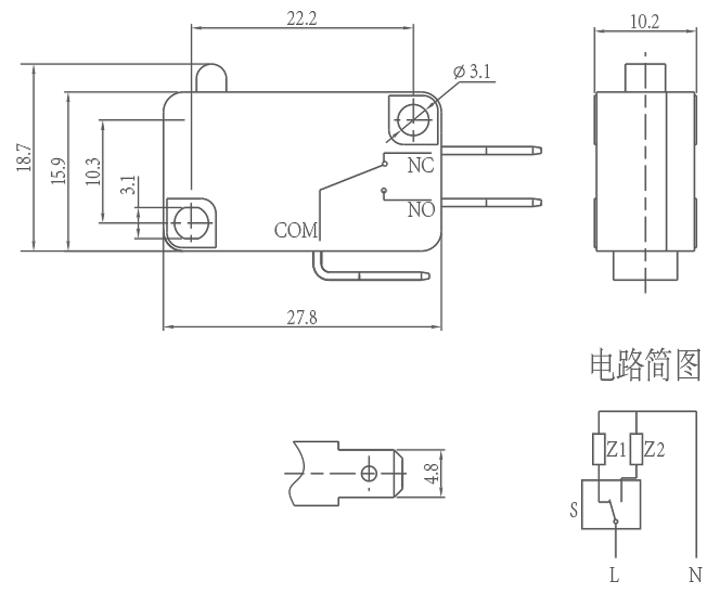

Microform SWITCH PB Details
