Summus Current Sui Reddere Micro Cie ad Familiares Appliances

Ut accumsan exemplar de Yueqing Tongda Wire Electric Factory microform series, princeps Current Self-Reset Micro Cie ad domestici Adjumentum features "alta sensibilitas, ultra-longam vitam, et multi-sca- natio aptabilitas" pro core utilitates eius. Integrata societas XXXV annorum peritia fabricandi, facta est clavis moderaminis componentis in adjumenta domestica, electronica automativa, automationis industriae, et in aliis agris, propter minimam contactum hiatum et celerem actionem mechanismum.

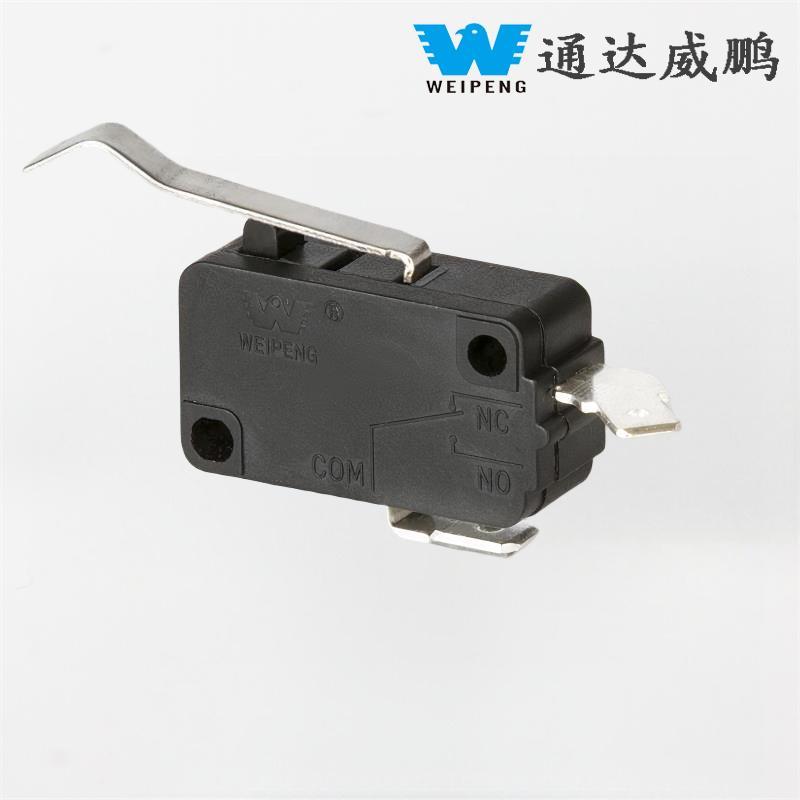

Model:HK-14-1-10A-403

Mitte Inquisitionem

depictio producti

WEIPEG® est ducensSummus Current Sui Reddere Micro Cie ad Familiares Appliancesartifices, praebitores et exportatores.

Microform SWITCH PB

Pelagus Technical Features

Electrical Specifications: Multas optiones currentes aestimandas praebet, ut 5A, 10A, 16A, 20A, cum intentione aestimata usque ad AC250V, applicationibus diversis potentiae requisitis aptas.

Vita mechanica et electrica: Mechanica vita 1 decies cyclos excedere potest, et vita electrica plerumque est inter 10,000 usque ad 100,000 cyclos.

Temperatura operans: Features amplis operans temperaturas, vulgo 25℃ ad 105℃, cum aliquibus exemplaribus -40℃ ad 125℃ attingentibus, variis ambitibus apta.

Structura operativa: De more auto-repositione, cum variis configurationibus contactuum, ut 1NC 1NO (solet occlusum et normaliter apertum).

Application missiones

Domum Appliances: Proin porta imperium, machina programmata lavatio imperium, aer Conditioner fan celeritas temperatio, tuta operatio armorum procuranda

Industrialis Automatio: productio lineae positionis, finis imperium robot, TRADUCTOR initium-stium imperium, effectio efficientiae ex 35% meliore

Automotiva Electronics: fenestra elevatio, sedes temperatio, truncus sentiendi, curriculis in-vehiculis duris idoneus

Medicinae machinae: armorum chirurgicam potestatem, instrumentum deprehendendi signum excitato, signa salutis medicinae-gradus occurrens

Industry militaris: telum armorum imperium, ratio communicationis mutandi accommodans ad extremas operationes condiciones ac summas fidem requisita

Microform Parameter SWITCH PB (specification)

Technical Characteres switch:
ITEM	Technical Parameter		Precium
1	Electrical Rating		5（2)A/10A/16(3)A/21（8）A 250VAC
2	Contactus Resistentia		≤30mΩ valorem initial
3	Nulla Resistentia		≥100MΩ (500VDC)
4	Dielectric Voltage	inter non-connexa terminales	1000V/0.5mA/60S
		Inter terminals et metallum artus	3000V/0.5mA/60S
5	Vita electrica		≥50000 circuitus
6	Mechanica Vita		≥1000000 circuitus
7	Operating Temperature		-25~ 125℃
8	Operating Frequency		electrica :15 circuitus Mechanica: LX circuitus
9	Vibratio Probatur		Vibratio Frequentia: 10~55HZ; Amplitude : 1.5 mm. Tres directiones: 1H
10	Facultates vendidit: Plus quam LXXX% de parte baptizati solida operietur		Temperature vendendi : 235± 5℃ Tempus baptizat: 2~3S
11	Solarium Caloris Resistentia		Intingere solidamentum: 260±5℃ 5±1S Manuale solidamentum: 300±5℃ 2~3S
12	Salus Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Tempestas test		Ambiens Temperature :20±5℃ Relativum Umor: 65±5% RH Pressura aeris: LXXXVI ~ 106KPa

Microform switch Feature et Application

1.Sate, certa basic switch
2. Pulchra species, stricta contiguatio. Charactenistic: parva contactu dlearance, actio velox, magna sensibilitas et parva 3. peregrinatio operans.
4.Long vitam, princeps reliablity
5.A varietate contactus terminales
6.A varnety temperatus gradus
7.A variis vectibus
8.Adopt themosetting plastic vel themoplastic
9. Late usus in home apliane elecroninc apparatusautomatic apparatus communicationis equioncar electron, apparatus et 10. instrumentum motus electrici etc.

Microform SWITCH PB Details
