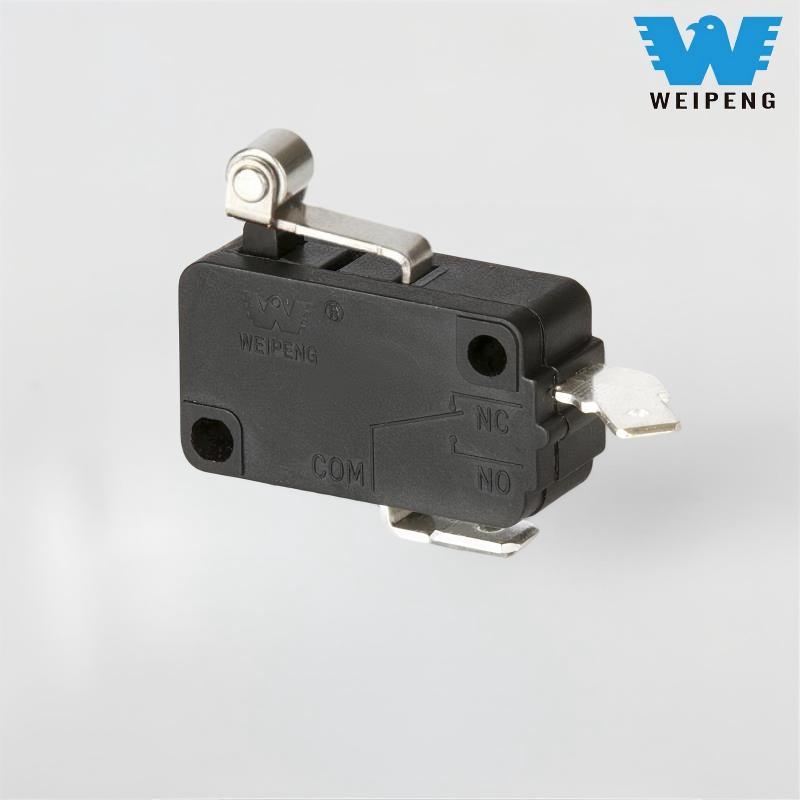

Factory Direct Sale Micro SWITCH PB Short-rota Micro SWITCH PB

Ut accumsan exemplar de Yueqing Tongda Wire Electric Factory microform series, Factory Direct Sale Micro Switch Micro Short-Wheel Microform features "alta sensibilitas, ultra-longam vitam, et multi-scenario aptabilitas" pro core utilitates. Integrata societas XXXV annorum peritia fabricandi, facta est clavis moderaminis componentis in adjumenta domestica, electronica automativa, automationis industriae, et in aliis agris, propter minimam contactum hiatum et celerem actionem mechanismum.

Model:HK-14-1-10A-406

Mitte Inquisitionem

depictio producti

WEIPEG® est ducensFactory Direct Sale Micro SWITCH PB Short-rota Micro SWITCH PB artifices, praebitores et exportatores.

Microform SWITCH PB

HK-14 microform lineamenta stabilia perficiendi et valida onera capacitatis, aestimata usque ad 16A 250VAC. Adoptatur argenteum mixturae contactum ad abrasionem et oxidationem resistendum, ad vitam longam praestandam. Vectis styli multiplices praesto sunt ad diversam institutionem postulandam. Late applicata in subsidiis domesticis, instrumentis industrialibus et systematibus electronicis autocinetis adhibitis.

Construction & Materials

Habitationi: Summus fortitudo flammea thermoplastic, impetus & calor resistens

Noti: mixtura Argentea (AgCdO/AgNi), arc-resistentia, contactus humilis resistentia

Terminalia: 4.8mm cuprum stannum patella, obturaculum in & solidarium compatibile

Actuator: Plunger / vectis optiones (recta, curva, cylindrus, etc.)

Microform Parameter SWITCH PB (specification)

Technical Characteres switch:
ITEM	Technical Parameter		Precium
1	Electrical Rating		5(2)A/10A/16(3)A/21(8)A 250VAC
2	Contactus Resistentia		≤30mΩ valorem initial
3	Nulla Resistentia		≥100MΩ (500VDC)
4	Dielectric Voltage	inter non-connexa terminales	1000V/0.5mA/60S
		Inter terminals et metallum artus	3000V/0.5mA/60S
5	Vita electrica		≥50000 circuitus
6	Mechanica Vita		≥1000000 circuitus
7	Temperature operating		-25~ 125℃
8	Operating Frequency		electrica :15 circuitus Mechanica: LX circuitus
9	Vibratio Probatur		Vibratio Frequentia: 10~55HZ; Amplitude : 1.5 mm. Tres directiones: 1H
10	Facultates vendidit: Plus quam LXXX% de parte baptizati solida operietur		Temperature vendendi : 235± 5℃ Tempus baptizat: 2~3S
11	Solder Caloris Resistentia		Intingere solidamentum: 260±5℃ 5±1S Manuale solidamentum: 300±5℃ 2~3S
12	Salus Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Tempestas test		Ambiens Temperature :20±5℃ Relativum Umor: 65±5% RH Pressura aeris: LXXXVI ~ 106KPa

Microform switch Feature et Application

1.Sate, certa basic switch
2. Pulchra species, stricta contiguatio. Charactenistic: parva contactu dlearance, actio velox, magna sensibilitas et parva 3. peregrinatio operans.
4.Long vitam, princeps reliablity
5.A varietate contactus terminales
6.A varnety temperatus gradus
7.A variis vectibus
8.Adopt themosetting plastic vel themoplastic
9. Late usus in home apliane elecroninc apparatusautomatic apparatus communicationis equioncar electron, apparatus et 10. instrumentum motus electrici etc.

Microform SWITCH PB Details
