DC2C A1LB IMPERVIUS Micro Cie cum Lever

Sicut Probatio productum ex Yueqing Tongda Cable Electric Factory (WEIPENG notam) in agro Waterproof Micro Switch, DC2C A1LB Waterproof Micro Switch cum Lever facta est fiduciaria electio in potestate industrialis, autocinetis electronicis, dolor domi, aliisque agris, ob nucleum commoda 'IP67 tutelae, altae vires mechanicae, et post validitatem mercaturae.

Model:FSK-18-D-004

Mitte Inquisitionem

depictio producti

LAMENTATIO®est ducensSina DC2C A1LB IMPERVIUS Micro Cie cum Lever fabricarers, suppliers et exporter.

IMPERVIUS Micro SWITCH PBIntroduction

FSK-18 plene obsignatum est actionis snap-actionum micro switch cum multi- iacu silicone gasket integratae et ultrasonicae gluten designatio obsignatio ad IP67 dustproof & IMPERVIUM rating perveniens. Efficaciter impedit aquam spargens, nebulam purgans, arenam desertam et nebulam olei, brevem ambitum vitans et oxidationis contactus liquoris vel pulveris intrusionis causatorum, specimen duri instrumenti in GCC et Africa Septentrionali mercatus.

IMPERVIUS Micro SWITCH PB Applicatio

Familiae adjumentaIMPERVIUS cursores microformes late adhibentur in adjumenta domestica, ut machinis lavandis, leoninis, conditionis aeriis, etc. IMPERVIUS effectus eius normalem operationem switch in humido ambitu tueri potest.

IMPERVIUS Micro SWITCH PBParameter(specificatio)

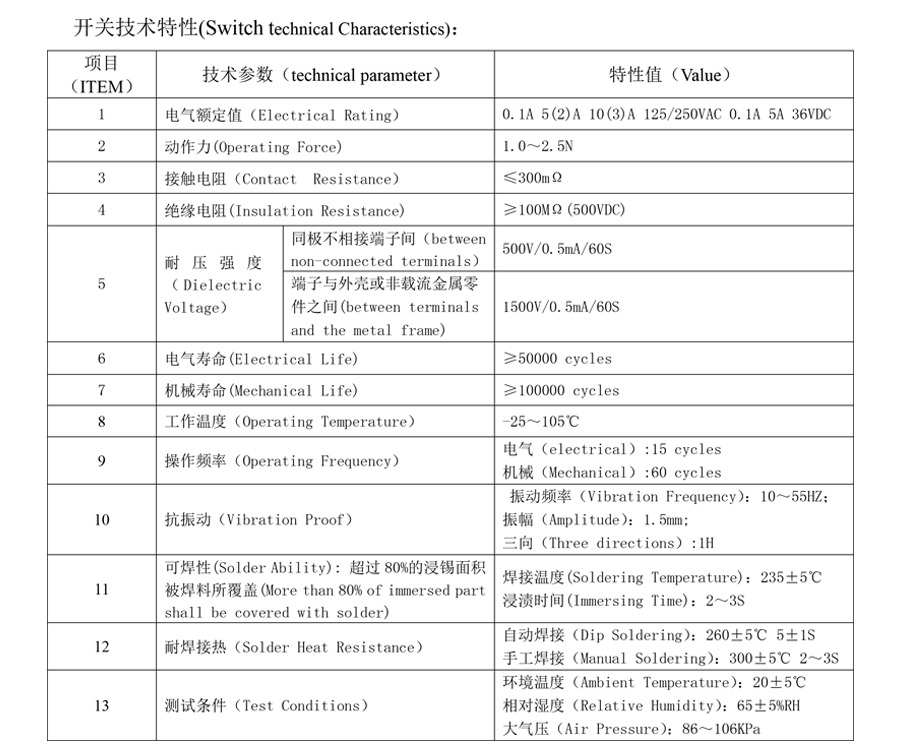

Technical Characteres switch:
ITEM	Technical Parameter		Precium
1	Electrical Rating		0.1A 5(2)A 10(3)A 125/250VAC 0.1A 5A 36VDC
2	Operans Force		1.0~2.5N
3	Contactus Resistentia		≤300mΩ
4	Nulla Resistentia		≥100MΩ (500VDC)
5	Dielectric Voltage	inter non-connexa terminales	500V/0.5mA/60S
		Inter terminals et metallum artus	1500V/0.5mA/60S
6	Vita electrica		≥50000 circuitus
7	Mechanica Vita		≥100000 circuitus
8	Temperature operating		-25~105℃
9	Operating Frequency		Electrical: XV circuitus Mechanica: LX circuitus
10	Vibratio Probatur		Vibratio Frequency :10~55HZ; Amplitude : 1.5 mm. Tres directiones: 1H
11	Facultates vendidit: Plus quam LXXX% de parte baptizati solida operietur		Temperature vendendi : 235± 5℃ Tempus baptizat: 2~3S
12	Solder Caloris Resistentia		Intingere solidamentum: 260±5℃ 5±1S Manuale solidamentum: 300±5℃ 2~3S
13	Tempestas test		Ambiens Temperature :20±5℃ Relativum Umor: 65±5% RH Pressura aeris: LXXXVI ~ 106KPa
