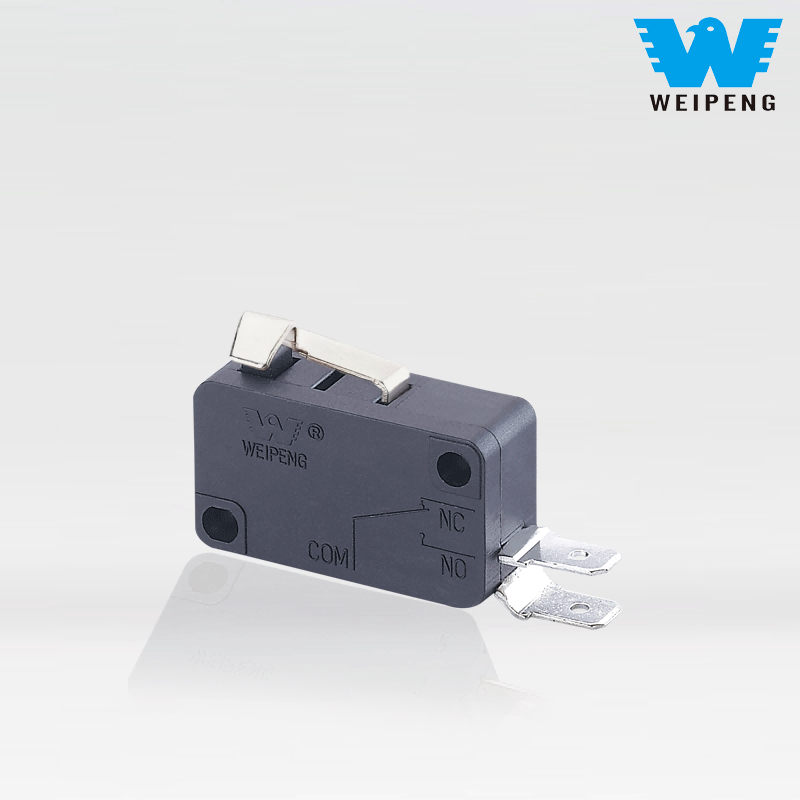

Contact Micro Switch for Electric Ice Crusher and Vacuum Cleaner Accessories

Ut accumsan exemplar de Yueqing Tongda Wire Electric Factory microform series, contactum Micro Switch pro Electric Ice Crusher et Vacuum Tersus Accessories features "altae sensus, ultra-longam vitam, et multi-scamaria aptabilitas" pro core utilitates eius. Integrata societas XXXV annorum peritia fabricandi, facta est clavis moderaminis componentis in adjumenta domestica, electronica automativa, automationis industriae, et in aliis agris, propter minimam contactum hiatum et celerem actionem mechanismum.

Model:HK-14-1X-16A-911

Mitte Inquisitionem

depictio producti

WEIPEG® est ducensContact Micro Switch for Electric Ice Crusher and Vacuum Cleaner Accessories artifices, praebitores et exportatores.

Microform SWITCH PB

HK-14 transitum constanter inhaeret notae philosophiae de 'Quality Primum, Integritas pro Longo termino.' Ex uno polo contactu structurae et post multiplices optimizationes technicas, ulterius auget notas operativas producti, commoda praebens ut breves peregrinationes, responsiones sensitivas, ac stabiles excitato. Hoc optimized consilium non solum melioris instrumenti operandi efficientiam ac moras operationis minuit, sed etiam transitum retardat, extenditur ad vitam servitii producti, inde postea sustentationem et subrogationem gratuita reducit, conpensat effectum et cost-efficentiam, faciens eam electionem sumptus-efficax pro clientibus in variis agris.

Microform Parameter SWITCH PB (specification)

Technical Characteres switch:
ITEM	Technical Parameter		Precium
1	Electrical Rating		5(2)A/10A/16(3)A/21(8)A 250VAC
2	Contactus Resistentia		≤30mΩ valorem initial
3	Nulla Resistentia		≥100MΩ (500VDC)
4	Dielectric Voltage	inter non-connexa terminales	1000V/0.5mA/60S
		Inter terminals et metallum artus	3000V/0.5mA/60S
5	Vita electrica		≥50000 circuitus
6	Mechanica Vita		≥1000000 circuitus
7	Temperature operating		-25~ 125℃
8	Operating Frequency		electrica :15 circuitus Mechanica: LX circuitus
9	Vibratio Probatur		Vibratio Frequentia: 10~55HZ; Amplitude : 1.5 mm. Tres directiones: 1H
10	Facultates vendidit: Plus quam LXXX% de parte baptizati solida operietur		Temperature vendendi : 235± 5℃ Tempus baptizat: 2~3S
11	Solder Caloris Resistentia		Intingere solidamentum: 260±5℃ 5±1S Manuale solidamentum: 300±5℃ 2~3S
12	Salus Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Tempestas test		Ambiens Temperature :20±5℃ Relativum Umor: 65±5% RH Pressura aeris: LXXXVI ~ 106KPa

Microform switch Feature et Application

1.Sate, certa basic switch
2. Pulchra species, stricta contiguatio. Charactenistic: parva contactu dlearance, actio velox, magna sensibilitas et parva 3. peregrinatio operans.
4.Long vitam, princeps reliablity
5.A varietate contactus terminales
6.A varnety temperatus gradus
7.A variis vectibus
8.Adopt themosetting plastic vel themoplastic
9. Late usus in home apliane elecroninc apparatusautomatic apparatus communicationis equioncar electron, apparatus et 10. instrumentum motus electrici etc.

Microform SWITCH PB Details
