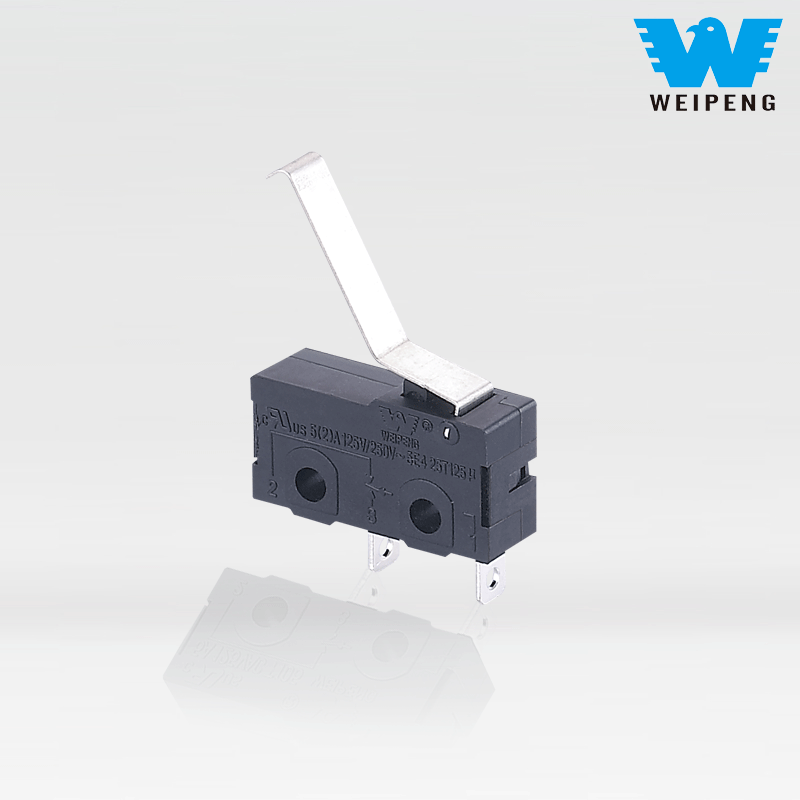

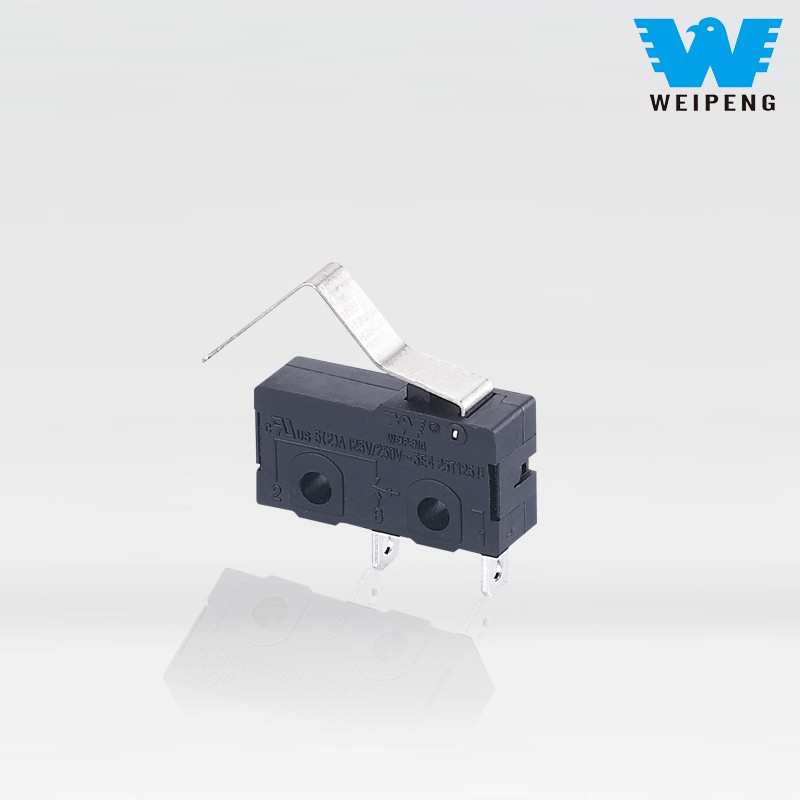

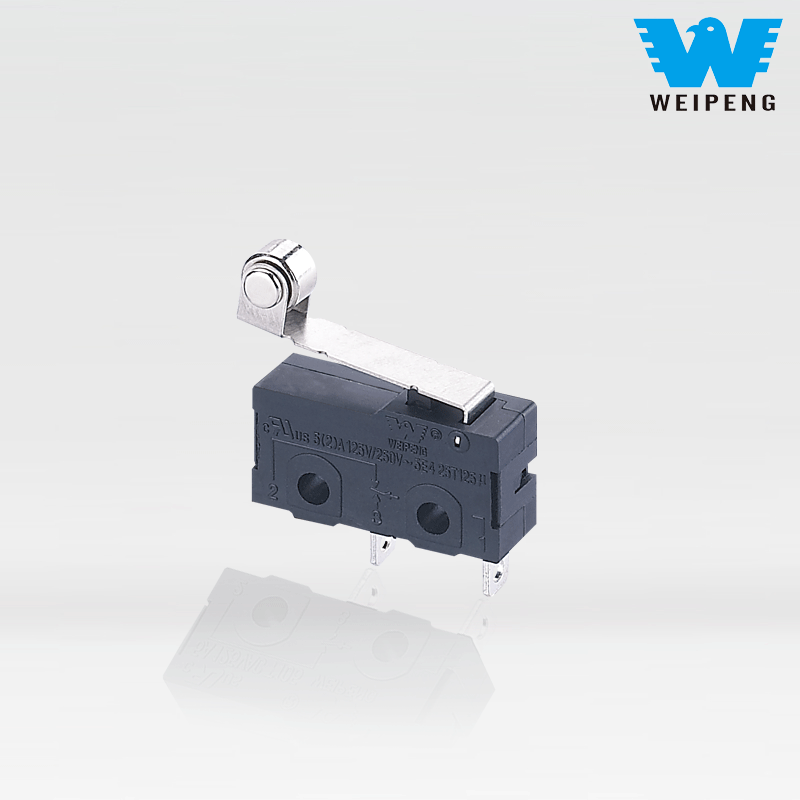

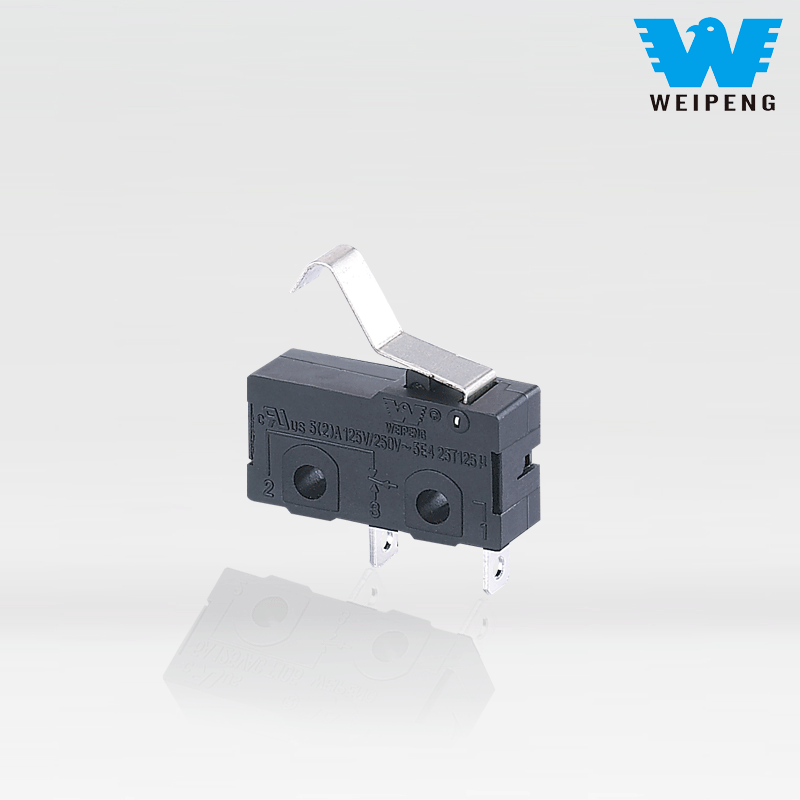

Arcus Shaped palpate Gas Stove Low-Current Switch

Sicut Leqing Tongda classicum transibit ad usum missionum generalem destinatum, HK-04G-L spectat ad altam stabilitatem, amplam convenientiam, et cost-efficentiam, integrans XXXV annos experientiae fabricandae. Apta est domiciliis captiosis, instrumentis industrialibus, commercii instrumentis, aliisque missionibus, inservientes clavem circuli temperandi componentes, quae fidem et sumptus librat.

Model:HK-04G-LZ-002

Mitte Inquisitionem

depictio producti

WEIPENG® est primarius manubrii Arcus figuratus Gas Stove Low-Current switch artifices, praebitores et exportatores.

Microform SWITCH PBIntroductio

Microform SWITCH PBApplicationem

Smart Home / Residentiales: Foedus magnitudine (20×15×10mm), apta embedding in captiosus distributio pixides, bases murus ascendentes, etc. Post congruens cum quadam notam, defectus rate omisso per 40%. Adhibetur ad accendendum et appli- candum imperium.

Small Industrial / Commercial: Apta armorum transportatorii, machinis capulus et typographis. Optimizationem structurae terminalis efficientiam conventus meliorem facit. Consuetudo versionum, accommodatis spatiis terminalibus, auget efficientiam institutionis per 25%.

Microform SWITCH PB Specification

Technical Characteres switch:
ITEM	Technical Parameter		Microform SWITCH PB
1	Electrical Rating		5(2)A 125V/250VAC 10(3)125V/250VAC
2	Contactus Resistentia		≤50mΩ valorem initialem
3	Nulla Resistentia		≥100MΩ (500VDC)
4	Dielectric Voltage	inter non-connexa terminales	500V/0.5mA/60S
		Inter terminals et metallum artus	1500V/0.5mA/60S
5	Vibratio Probatur		≥10000 circuitus
6	Mechanica Vita		≥100000 circuitus
7	Temperature operating		-25~ 125℃
8	Operating Frequency		Electrical: XV circuitus Mechanica: LX circuitus
9	Vibratio Probatur		Vibratio Frequency :10~55HZ; Amplitude : 1.5 mm. Tres directiones: 1H
10	Facultates vendidit: Plus quam LXXX% de parte baptizati solida operietur		Temperature : 235±5℃ Tempus baptizat: 2~3S
11	Solder Caloris Resistentia		Intingere solidamentum: 260±5℃ 5±1S Manuale solidamentum: 300±5℃ 2~3S
12	Salus Approvals		UL、CSA、VDE、ENEC、CE
13	Tempestas test		Ambiens Temperature :20±5℃ Relativum Umor: 65±5% RH Air Impetus: 86~ 106KPa
