5A-21A Large Tripode brevis palpate hospitii Appliance Micro SWITCH PB

Ut accumsan exemplar de Yueqing Tongda Wire Electric Factory microform series series, 5A-21A Magnae Tripode Brevis-manus Domus Appliance Micro-Purgalis features "sensibilitas altae, ultra-longae vitae, et multi-scaenae adaptabilitas" pro core utilitates eius. Integrata societas XXXV annorum peritia fabricandi, facta est clavis moderaminis componentis in adjumenta domestica, electronica automativa, automationis industriae, et in aliis agris, propter minimam contactum hiatum et celerem actionem mechanismum.

Model:HK-14-16A-609

Mitte Inquisitionem

depictio producti

WEIPEG® est ducens5A-21A Large Tripode brevis palpate hospitii Appliance Micro SWITCH PB artifices, praebitores et exportatores.

Microform SWITCH PB

Leqing Tongda Cable Potentia Planta, annis experientiae productionis switch fretus, plenam processum qualitatis systema systematis HK-14 transitum stabilivit. Ex delectu materiarum rudium et subtilitate machinis componentium ad ecclesiam, debugging, et fabricarum inspectionem operis effecti, omnis gradus operationis normae sequitur et instructus instrumentis professionalibus probatis, ut perficiendi parametri uniuscuiusque producti signa convenientia designandi, cum aliqua ratione producti ad gradum industriae perveniat.

Microform Parameter SWITCH PB (specification)

Technical Characteres switch:
ITEM	Technical Parameter		Precium
1	Electrical Rating		5(2)A/10A/16(3)A/21(8)A 250VAC
2	Contactus Resistentia		≤30mΩ valorem initial
3	Nulla Resistentia		≥100MΩ (500VDC)
4	Dielectric Voltage	inter non-connexa terminales	1000V/0.5mA/60S
		Inter terminals et metallum artus	3000V/0.5mA/60S
5	Vita electrica		≥50000 circuitus
6	Mechanica Vita		≥1000000 circuitus
7	Temperature operating		-25~ 125℃
8	Operating Frequency		electrica :15 circuitus Mechanica: LX circuitus
9	Vibratio Probatur		Vibratio Frequentia: 10~55HZ; Amplitude : 1.5 mm. Tres directiones: 1H
10	Facultates vendidit: Plus quam LXXX% de parte baptizati solida operietur		Temperature vendendi : 235± 5℃ Tempus baptizat: 2~3S
11	Solder Caloris Resistentia		Intingere solidamentum: 260±5℃ 5±1S Manuale solidamentum: 300±5℃ 2~3S
12	Salus Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Tempestas test		Ambiens Temperature :20±5℃ Relativum Umor: 65±5% RH Pressura aeris: LXXXVI ~ 106KPa

Microform switch Feature et Application

1.Sate, certa basic switch
2. Pulchra species, stricta contiguatio. Charactenistic: parva contactu dlearance, actio velox, magna sensibilitas et parva 3. peregrinatio operans.
4.Long vitam, princeps reliablity
5.A varietate contactus terminales
6.A varnety temperatus gradus
7.A variis vectibus
8.Adopt themosetting plastic vel themoplastic
9. Late usus in home apliane elecroninc apparatusautomatic apparatus communicationis equioncar electron, apparatus et 10. instrumentum motus electrici etc.

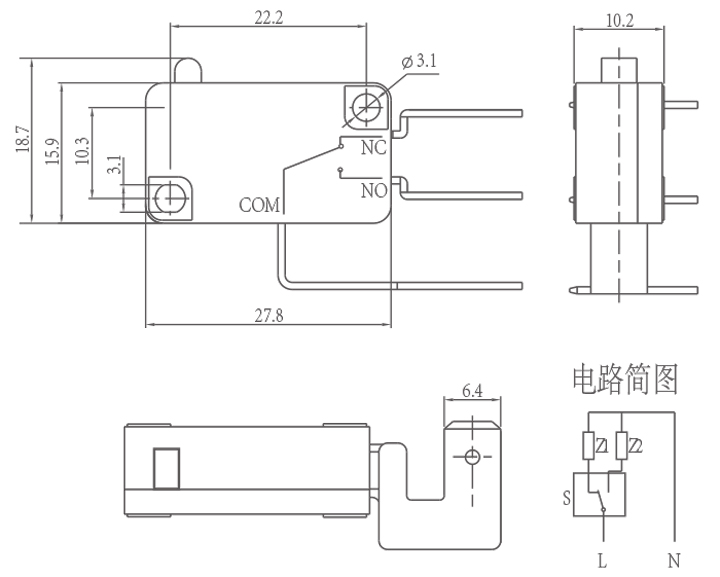

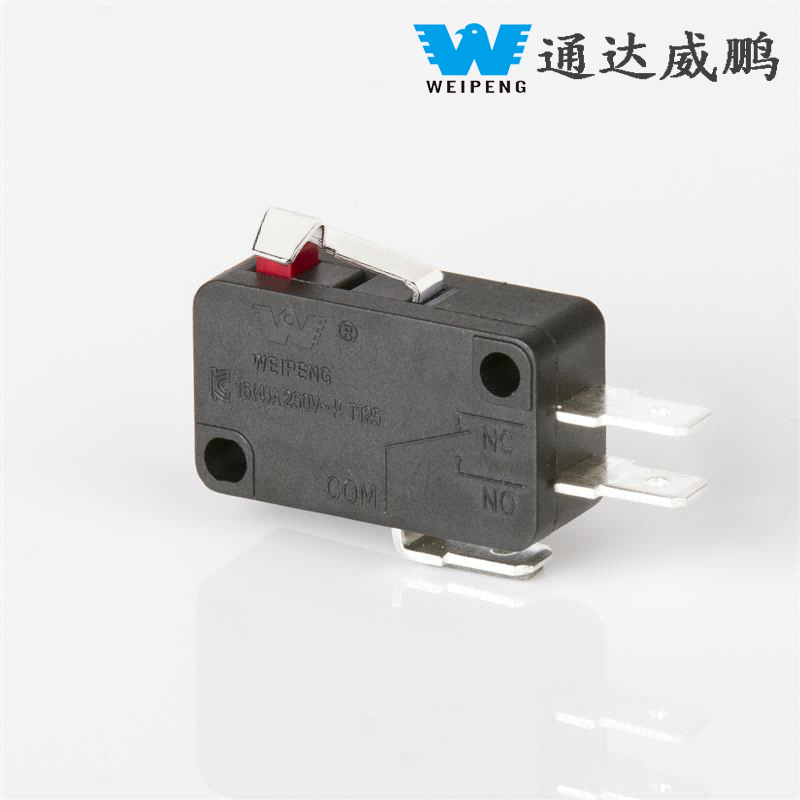

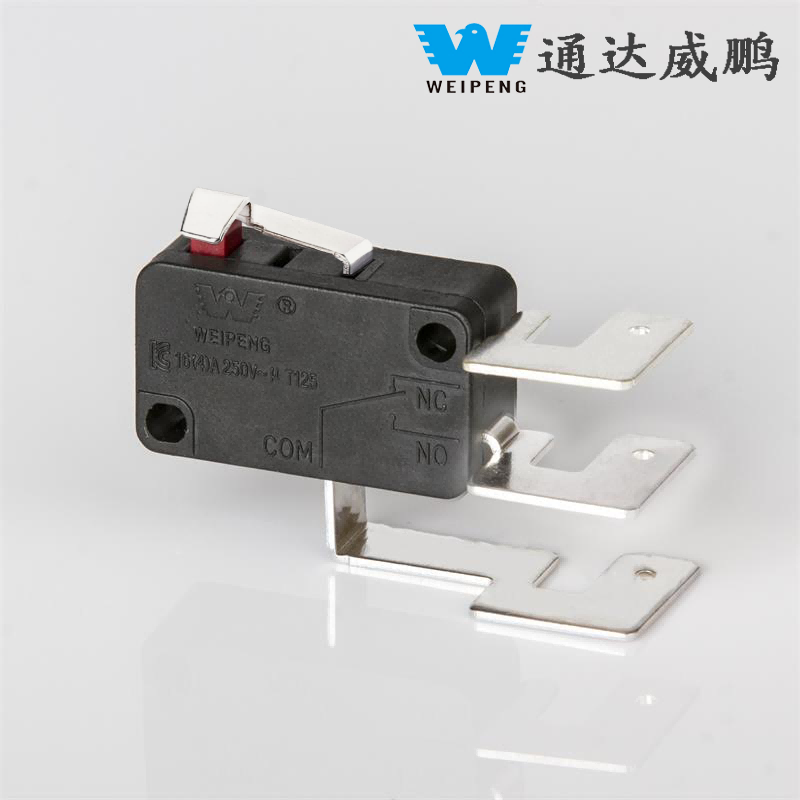

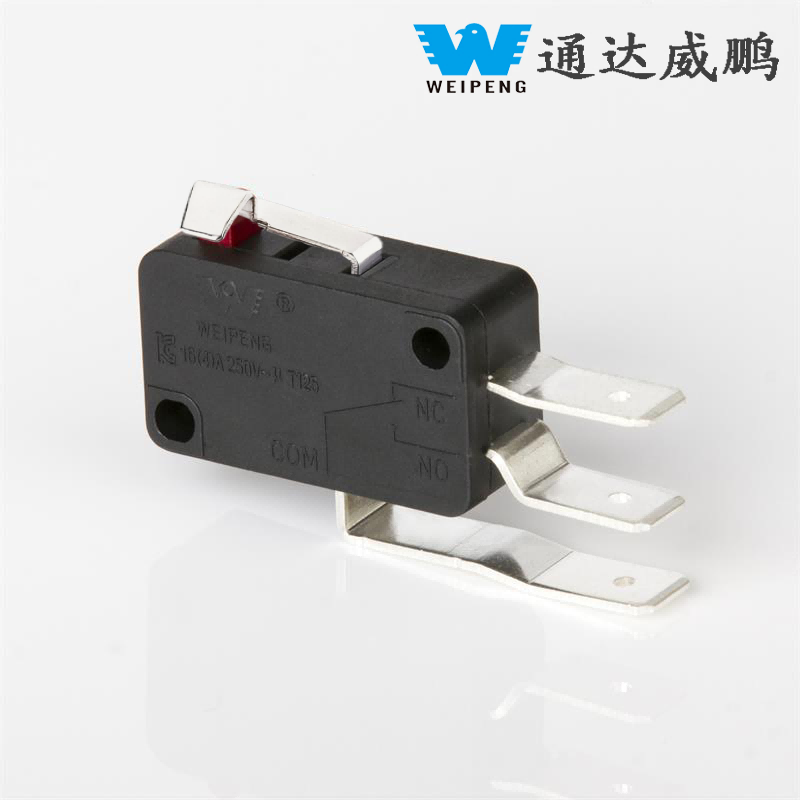

Microform SWITCH PB Details
