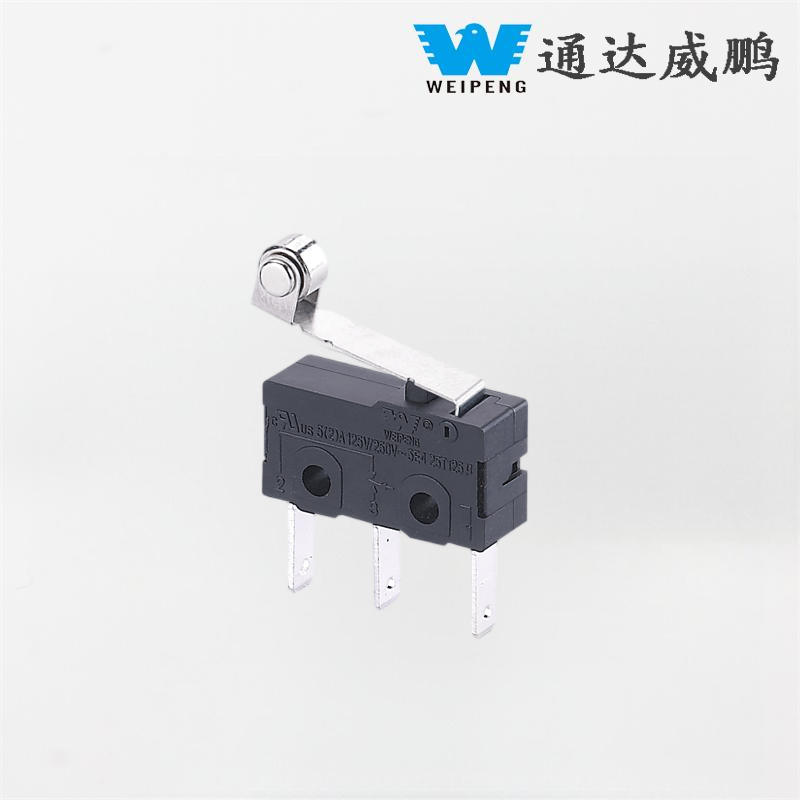

5A 125V/250V Summus Temperature Repugnans 3-pin Micro Cie cum Rollerus pro Industrial Equipment

5A 125V/250V Altus Temperature Repugnans 3-Pin Micro Switch cum Rollero pro Industrial Equipment ut repraesentativum productum Tongda WEIPING quae involvit integrationem core standardisationis et customizationis. Ut opificem et ocimi, nucleum designandi principium durabilis callidi appliance reset switch quae a nostra officina facta est "stabilitas, constantia, et compatibilitas missionis". Rating: 5A 250VAC Temperature Range: -40°C~+125°C IP Code: IP40 Dimensio: 19.8*10.6*6.4mm Approbatio UL, EEC, CSA, CE, VDE

Model:HK-04G-LZ-116

Mitte Inquisitionem

depictio producti

WEIPEG® est ducensWeipeng 5A 125V/250V Summus Temperature resistens 3-pin Micro Cie cum Rollero pro Industrial Equipment artifices, praebitores et exportatores.

Microform SWITCH PBIntroductio

HK-04G-L cardo vectis microswitch compacta est formatio SPDT (Single-Poli Geminus-Iacta) 3-pin PCB designatio terminalis. Leve metallo instructus, actionem celerem, altam constantiam, et vitam longam servitii, cum AC et DC circuitibus compatitur, tradit. late pro limite et positione sentiendi in domo adjumenta, moderatores industriales, et electronica machinas adhibet.

Microform SWITCH PBApplicationem

Virgulae parvae late adhibentur et certae in re ipsa, maxime applicatae;

- Familiares adjumenta: armarium luminum, portae oven proin seras, machina lavatio virgas operculi, et timers toaster.

- Industriae instrumenti: gravia-officii exempla apta vectoriis cingulis, machinis, et tabulatis moderandis (dustproof et humoris-probationis).

- Automotivum campus: windshield wipers, ostio-ajar indicibus - potest sustineri tremor et extremae temperaturae.

- Electronic machinis: minimae permutationes pro remotis dominiis et lusus moderatoris (responsivum et diuturnum).

Microform SWITCH PB Specification

Technical Characteres switch:
ITEM	Technical Parameter		Precium
1	Electrical Rating		5(2)A 125V/250VAC 10(3)125V/250VAC
2	Contactus Resistentia		≤50mΩ valorem initialem
3	Nulla Resistentia		≥100MΩ (500VDC)
4	Dielectric Voltage	inter non-connexa terminales	500V/0.5mA/60S
		Inter terminals et metallum artus	1500V/0.5mA/60S
5	Vita electrica		≥10000 circuitus
6	Mechanica Vita		≥100000 circuitus
7	Temperature operating		-25~ 125℃
8	Operating Frequency		Electrical: XV circuitus Mechanica: LX circuitus
9	Vibratio Probatur		Vibratio Frequentia :10~55HZ; Amplitude : 1.5 mm. Tres directiones: 1H
10	Facultates vendidit: Plus quam LXXX% de parte baptizati solida operietur		Temperature : 235±5℃ Tempus baptizat: 2~3S
11	Solarium Caloris Resistentia		Intingere solidamentum: 260±5℃ 5±1S Manuale solidamentum: 300±5℃ 2~3S
12	Salus Approvals		UL、CSA、VDE、ENEC、CE
13	Tempestas test		Ambiens Temperature :20±5℃ Relativum Umor: 65±5% RH Air Impetus: 86~ 106KPa
