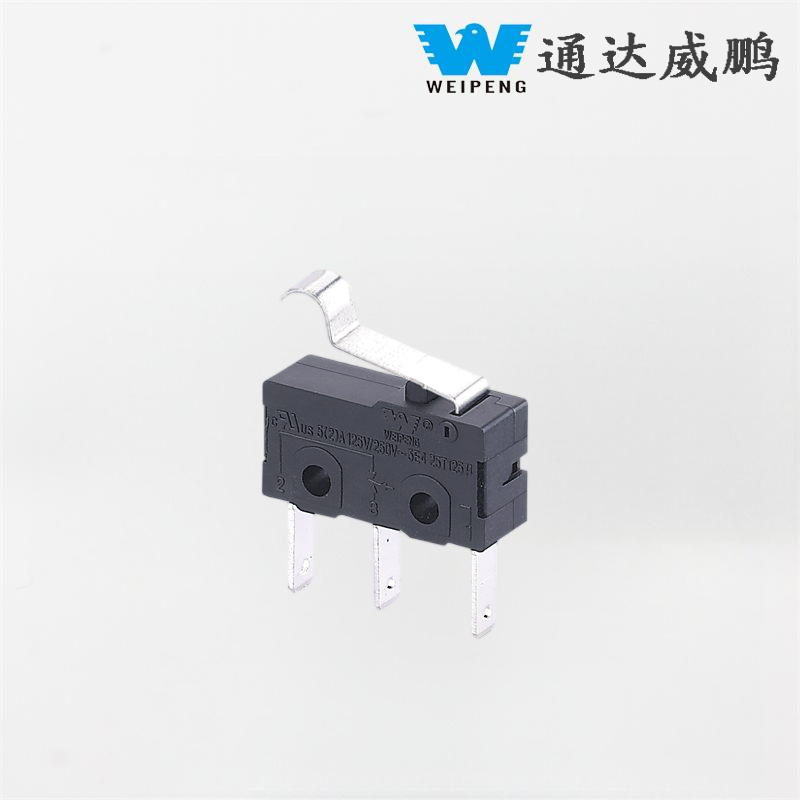

3-pin Food Processor Soy Milk Maker Meat Grinder Switch 5A/125V

3-Pin Cibus Processus Soy Milk Factor Carnis Grinder Switch 5A/125V ut repraesentativum productum Tongda LAMENTATIO quod involvit integrationem core standardisationis et customizationis. Ut opificem et ocimi, nucleum designandi principium durabilis callidi appliance reset switch quae a nostra officina facta est "stabilitas, constantia, et compatibilitas missionis". Rating: 5A 250VAC Temperature Range: -40°C~+125°C IP Code: IP40 Dimensio: 19.8*10.6*6.4mm Approbatio UL, EEC, CSA, CE, VDE

Model:HK-04G-LZ-119

Mitte Inquisitionem

depictio producti

WEIPEG® est ducens3-pin Cibus Processor Soy Milk Maker Carnis Grinder Switch 5A/125V fabrica, praebitorum et exportatoris.

Microform SWITCH PBIntroductio

HK-04G-L cardo vectis microswitch compacta est formatio SPDT (Single-Poli Geminus-Iacta) 3-pin PCB designatio terminalis. Leve metallo instructus, actionem celerem, altam constantiam, et vitam longam servitii, cum AC et DC circuitibus compatitur, tradit. late pro limite et positione sentiendi in domo adjumenta, moderatores industriales, et electronica machinas adhibet.

Commodo euismod

Celeriter Actio: Brevis peregrinatione (0.3-1.0mm), in instanti commutatione, non REPENTE

Princeps Durabilitas: 1,000,000-cyclus vitae mechanicae, specimen summus frequentiae operationis

Environmental Stability: Lata temperatura range & IP41 tutela pro diversis conditionibus

Securus instruitur: 3 paxillus rectae PCB terminales, spatii salutaris & conventus amicae

Microform SWITCH PBApplicationem

Virgulae parvae late adhibentur et certae in re ipsa, maxime applicatae;

Domus Adjumentum: Door / modus sentiendi pro microwaves, machinis lavare, rice cookers

Industrial Equipment: Automated lineae, instrumenta potentia, actus sensoris

Electronic Devices: Instrumenta, potestas tabularum potestas, armorum securitas

Microform SWITCH PB Specification

Technical Characteres switch:
ITEM	Technical Parameter		Precium
1	Electrical Rating		5(2)A 125V/250VAC 10(3)125V/250VAC
2	Contactus Resistentia		≤50mΩ valorem initialem
3	Nulla Resistentia		≥100MΩ (500VDC)
4	Dielectric Voltage	inter non-connexa terminales	500V/0.5mA/60S
		Inter terminals et metallum artus	1500V/0.5mA/60S
5	Vita electrica		≥10000 circuitus
6	Mechanica Vita		≥100000 circuitus
7	Temperature operating		-25~ 125℃
8	Operating Frequency		Electrical: XV circuitus Mechanica: LX circuitus
9	Vibratio Probatur		Vibratio Frequentia :10~55HZ; Amplitude : 1.5 mm. Tres directiones: 1H
10	Facultates vendidit: Plus quam LXXX% de parte baptizati solida operietur		Temperature : 235±5℃ Tempus baptizat: 2~3S
11	Solarium Caloris Resistentia		Intingere solidamentum: 260±5℃ 5±1S Manuale solidamentum: 300±5℃ 2~3S
12	Salus Approvals		UL、CSA、VDE、ENEC、CE
13	Tempestas test		Ambiens Temperature :20±5℃ Relativum Umor: 65±5% RH Air Impetus: 86~ 106KPa
