II-pin / III-pin 16A Arcum palpate High Current High Temperature obsistens Micro Switch

Sicut Probatio exemplar of Yueqing Tongda Wire Electric Factory microform series series, 2-pin/3-pin 16A Arcum Tractare High Current High Temperature resistens Micro switch features "altae sensibilitatis, ultra-longae vitae, et multi-scenario aptabilitas" pro core utilitates. Integrata societas XXXV annorum peritia fabricandi, facta est clavis moderaminis componentis in adjumenta domestica, electronica automativa, automationis industriae, et in aliis agris, propter minimam contactum hiatum et celerem actionem mechanismum.

Model:HK-14-1-16AP-207

Mitte Inquisitionem

depictio producti

WEIPEG® est ducensII-pin / III-pin 16A Arcum palpate High Current High Temperature obsistens Micro Switch artifices, praebitores et exportatores.

Microform SWITCH PB

Facere asperam obsignatam habitationem et materias resistentes altae temperaturas, HK-14 notas electricas stabiles etiam in ambitibus cum tremore, pulvere et temperatura fluctuationes conservat. Eius normae ascendentes dimensiones et consilium terminale versatile permittunt facilem integrationem in lineas conventus, subsidia domus, instrumenta potentiae, systemata industrialem, reducendo complexionem institutionem et efficientiam melioris productionis.

Cum aestimationes altas, longae vitae mechanicae et electricae, et certificationum globalis salus inclusa UL, VDE, Enec et CCC, opera HK-14 stabilis efficit operationem, humilem rate defectum, et fortem convenientiam cum signis militaribus amet. Est credita moderatio componentis artifices quaerendi diuturnitatem, salutem, et sumptus efficens effectus in applicationibus summus postulatis.

Typical Applications

Domus Adjumentum: Door / modus sentiendi ad microwaves, washers, furnos, rice cookers

Industriae: Automation arma, instrumenta potentia, sentinam / valvae imperium, interlocks salutem

Electronics: Potentia commeatus, instrumenta, instrumentum curans, cogitationes securitatis

Microform Parameter SWITCH PB (specification)

Technical Characteres switch:
ITEM	Technical Parameter		Precium
1	Electrical Rating		5(2)A/10A/16(3)A/21(8)A 250VAC
2	Contactus Resistentia		≤30mΩ valorem initial
3	Nulla Resistentia		≥100MΩ (500VDC)
4	Dielectric Voltage	inter non-connexa terminales	1000V/0.5mA/60S
		Inter terminals et metallum artus	3000V/0.5mA/60S
5	Vita electrica		≥50000 circuitus
6	Mechanica Vita		≥1000000 circuitus
7	Temperature operating		-25~ 125℃
8	Operating Frequency		electrica :15 circuitus Mechanica: LX circuitus
9	Vibratio Probatur		Vibratio Frequentia: 10~55HZ; Amplitude : 1.5 mm. Tres directiones: 1H
10	Facultates vendidit: Plus quam LXXX% de parte baptizati solida operietur		Temperature vendendi : 235± 5℃ Tempus baptizat: 2~3S
11	Solarium Caloris Resistentia		Intingere solidamentum: 260±5℃ 5±1S Manuale solidamentum: 300±5℃ 2~3S
12	Salus Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Tempestas test		Ambiens Temperature :20±5℃ Relativum Umor: 65±5% RH Pressura aeris: LXXXVI ~ 106KPa

Microform switch Feature et Application

1.Sate, certa basic switch
2. Pulchra species, stricta contiguatio. Charactenistic: parva contactu dlearance, actio velox, magna sensibilitas et parva 3. peregrinatio operans.
4.Long vitam, princeps reliablity
5.A varietate contactus terminales
6.A varnety temperatus gradus
7.A variis vectibus
8.Adopt themosetting plastic vel themoplastic
9. Late usus in home apliane elecroninc apparatusautomatic apparatus communicationis equioncar electron, apparatus et 10. instrumentum motus electrici etc.

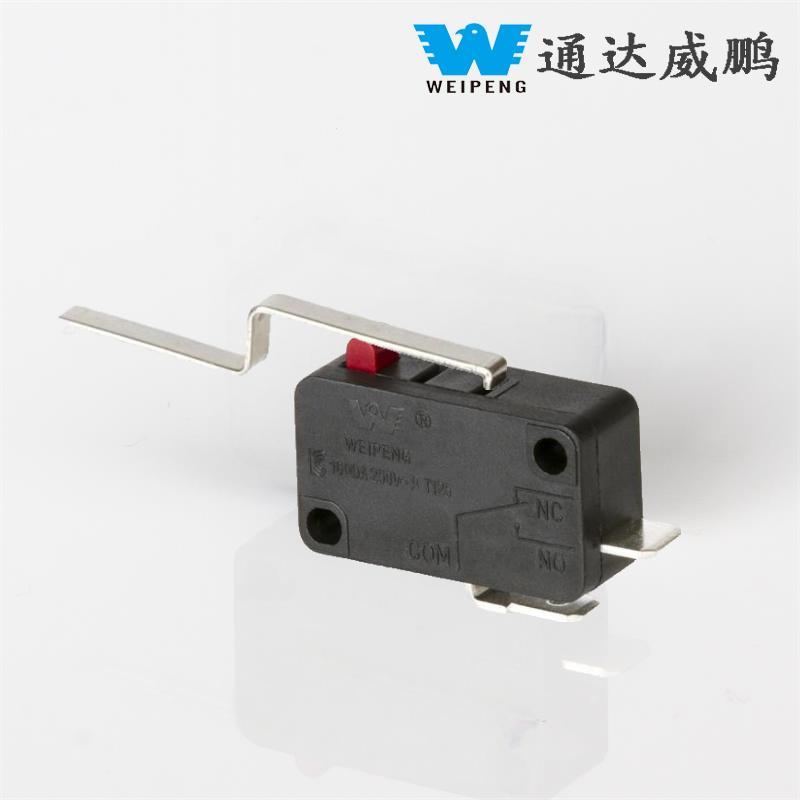

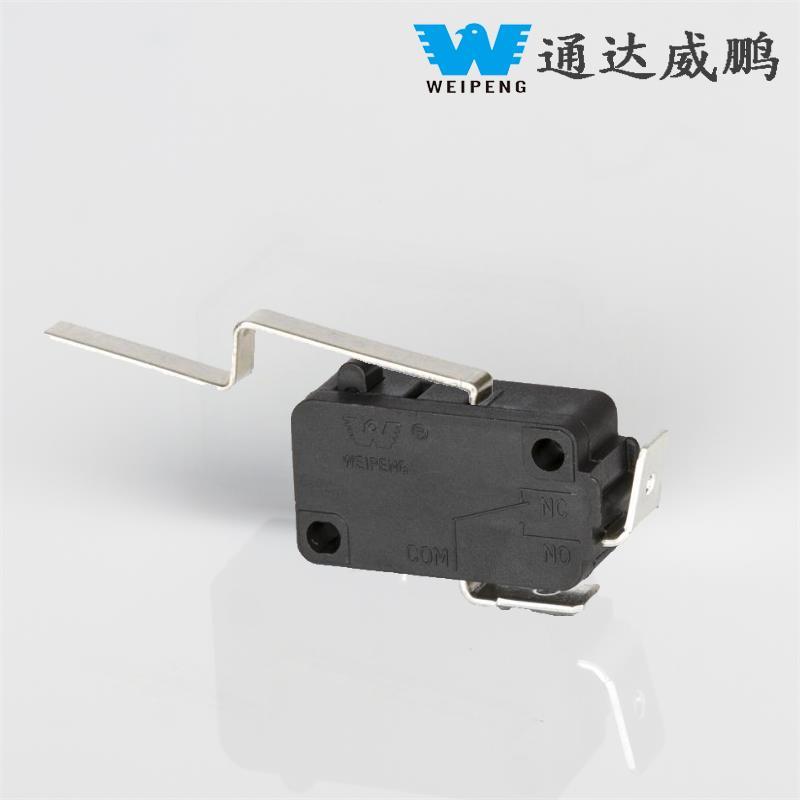

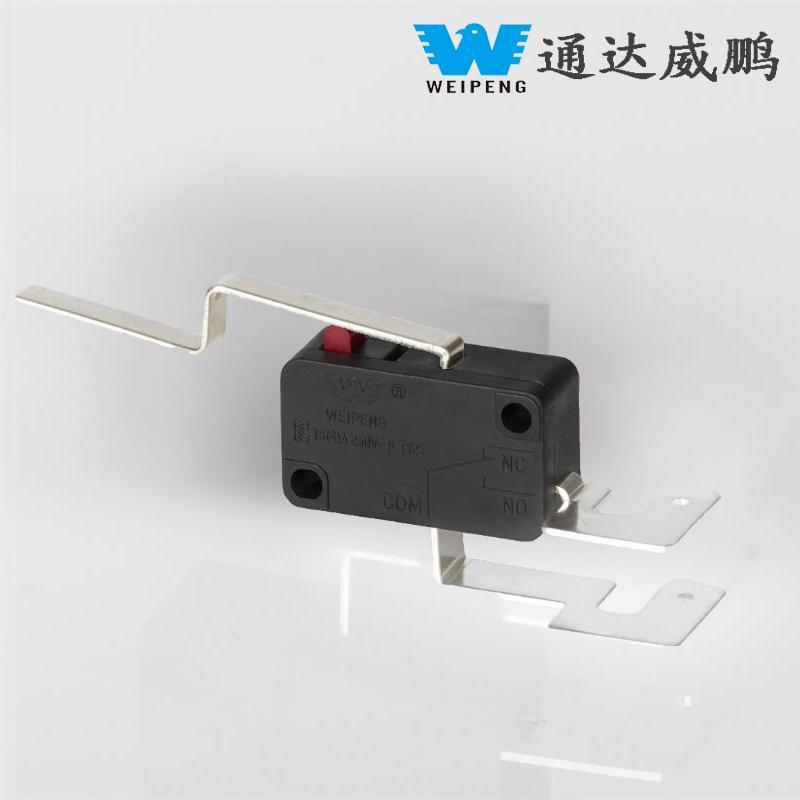

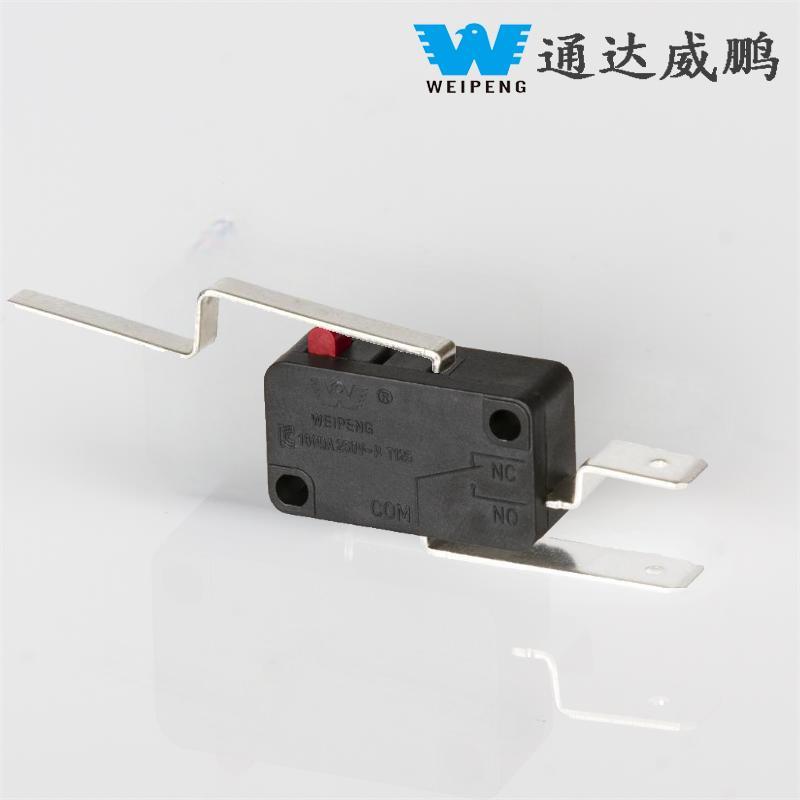

Microform SWITCH PB Details
