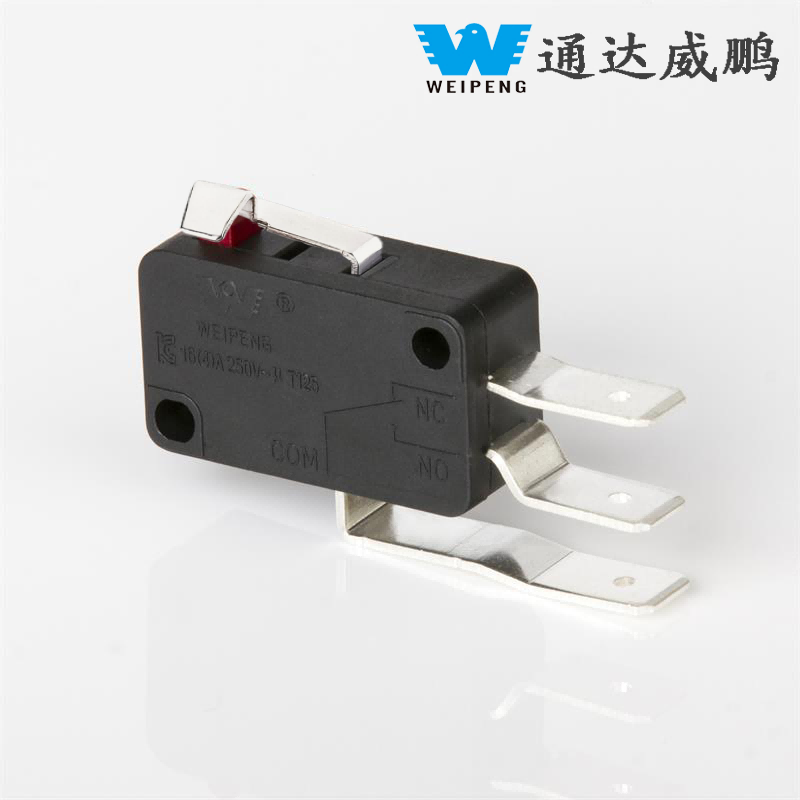

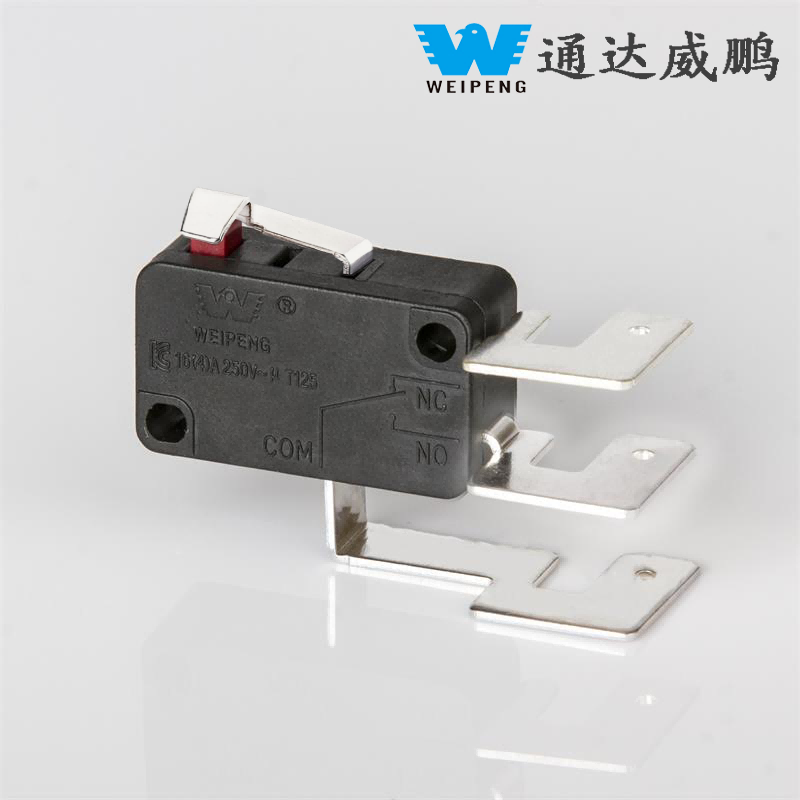

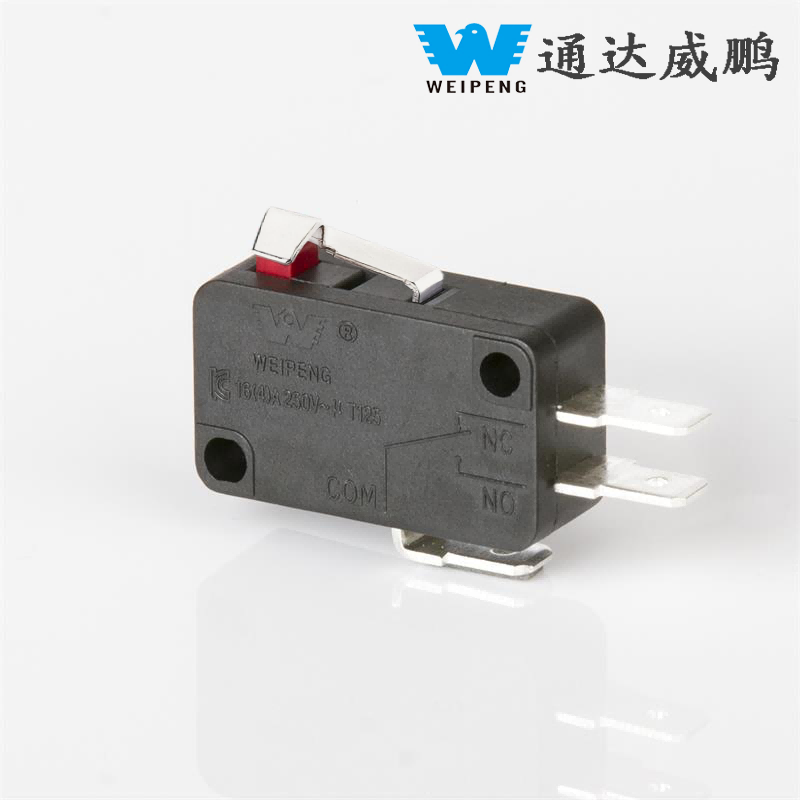

16A Tres Prong Micro Switch Electric Ice Crusher

Ut accumsan exemplar de Yueqing Tongda Wire Electric Factory microform series, 16A Tres Prong Micro Switch Electric Ice Crusher features "alta sensibilitas, ultra-longam vitam, et multi-scenario aptabilitas" pro core utilitates. Integrata societas XXXV annorum peritia fabricandi, facta est clavis moderaminis componentis in adjumenta domestica, electronica automativa, automationis industriae, et in aliis agris, propter minimam contactum hiatum et celerem actionem mechanismum.

Model:HK-14-16A-688

Mitte Inquisitionem

depictio producti

WEIPEG® est ducens16A Tres Prong Micro Switch Electric Ice Crusher artifices, praebitores et exportatores.

Microform SWITCH PB

Transitus HK-14 percommodus operas customizationes valde utiles praebet, limitationes permutationum virgarum conventionalium normae solvens. Lorem ad exempla exclusiva cum diversis oneribus, variis formis felis, et diversis magnitudinibus secundum specificas clientium necessitates fieri potest. Eodem tempore parametris optimize potest ut in itineratione et commutatione felis vim facientis secundum apparatum accommodationis emptoris requisita, inconsutilem integrationem assequendum cum instrumento emptoris ac iussis occurrentibus et usu personali necessario.

Secundum obsequium et tutelam environmental, HK-14 transibit non solum multa certificaciones salutis auctoritativae internationalis et domesticae, sed etiam stricte adhaeret cum signis environmentalibus globalibus. Utitur materiis eco-amicis ut gratis et mercurio liberorum partium plumbearum, emissiones pollutantes stricte moderatur in processu productionis, et exigentiis occurrit normarum circumscriptionum ut ROHS/REA. Hoc in tuto collocet utentis dum vocationi globali pro viridi et humili carboni evolutioni industriae respondendo, idoneos reddens industries cum maximis requisitis environmental.

Microform Parameter SWITCH PB (specification)

Technical Characteres switch:
ITEM	Technical Parameter		Precium
1	Electrical Rating		5(2)A/10A/16(3)A/21(8)A 250VAC
2	Contactus Resistentia		≤30mΩ valorem initial
3	Nulla Resistentia		≥100MΩ (500VDC)
4	Dielectric Voltage	inter non-connexa terminales	1000V/0.5mA/60S
		Inter terminals et metallum artus	3000V/0.5mA/60S
5	Vita electrica		≥50000 circuitus
6	Mechanica Vita		≥1000000 circuitus
7	Temperature operating		-25~ 125℃
8	Operating Frequency		electrica :15 circuitus Mechanica: LX circuitus
9	Vibratio Probatur		Vibratio Frequentia: 10~55HZ; Amplitude : 1.5 mm. Tres directiones: 1H
10	Facultates vendidit: Plus quam LXXX% de parte baptizati solida operietur		Temperature vendendi : 235± 5℃ Tempus baptizat: 2~3S
11	Solder Caloris Resistentia		Intingere solidamentum: 260±5℃ 5±1S Manuale solidamentum: 300±5℃ 2~3S
12	Salus Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Tempestas test		Ambiens Temperature :20±5℃ Relativum Umor: 65±5% RH Pressura aeris: LXXXVI ~ 106KPa

Microform switch Feature et Application

1.Sate, certa basic switch
2. Pulchra species, stricta contiguatio. Charactenistic: parva contactu dlearance, actio velox, magna sensibilitas et parva 3. peregrinatio operans.
4.Long vitam, princeps reliablity
5.A varietate contactus terminales
6.A varnety temperatus gradus
7.A variis vectibus
8.Adopt themosetting plastic vel themoplastic
9. Late usus in home apliane elecroninc apparatusautomatic apparatus communicationis equioncar electron, apparatus et 10. instrumentum motus electrici etc.

Microform SWITCH PB Details
