16A Micro Switch Vacuum Cleaner Accessories

Ut accumsan exemplar de Yueqing Tongda Wire Electric Factory microform series, 16A Micro SWITCH Vacuum Tersus Accessories features "alta sensibilitas, ultra-longam vitam, et multi-scenario aptabilitas" pro core utilitates eius. Integrata societas XXXV annorum peritia fabricandi, facta est clavis moderaminis componentis in adjumenta domestica, electronica automativa, automationis industriae, et in aliis agris, propter minimam contactum hiatum et celerem actionem mechanismum.

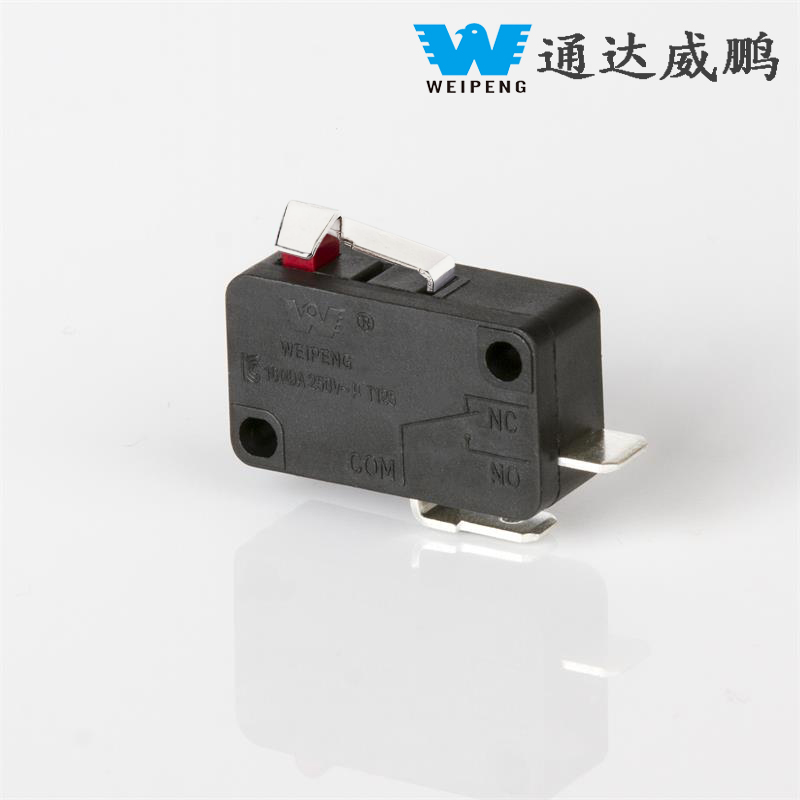

Model:HK-14-1X-16AP-805

Mitte Inquisitionem

depictio producti

WEIPEG® est ducens16A Micro Switch Vacuum Cleaner Accessories artifices, praebitores et exportatores.

Microform SWITCH PB

HK-XIV commutatio a Yueqing Tongda Cable Planta Electrica bonam famam notam in industria constituit propter amplis exemplaribus, cautiones certificationes comprehensivae, missiones amplae applicationis, ac stabilis ac durabilis operandi effectus. Diu terminus copia particeps facta est multis notis societatibus sicut Midea, Galanz, et Sinarum Septentrionalis Industriae Group. Plus annis, hoc productum unanimum recognitionem e clientibus trans varias industrias consecuta est ob eius stabilem qualitatem, operas cogitativas customizationes, et subsidia comprehensiva post-venditio. Non solum magni momenti locum tenet in mercatu domestico, sed etiam ad plures regiones et regiones transmarinas exportatur, unus factus ex Yueqing Tongda cable electricis nucleus navis praetoriae producta.

Microform Parameter SWITCH PB (specification)

Technical Characteres switch:
ITEM	Technical Parameter		Precium
1	Electrical Rating		5(2)A/10A/16(3)A/21(8)A 250VAC
2	Contactus Resistentia		≤30mΩ valorem initial
3	Nulla Resistentia		≥100MΩ (500VDC)
4	Dielectric Voltage	inter non-connexa terminales	1000V/0.5mA/60S
		Inter terminals et metallum artus	3000V/0.5mA/60S
5	Vita electrica		≥50000 circuitus
6	Mechanica Vita		≥1000000 circuitus
7	Temperature operating		-25~ 125℃
8	Operating Frequency		electrica :15 circuitus Mechanica: LX circuitus
9	Vibratio Probatur		Vibratio Frequentia: 10~55HZ; Amplitude : 1.5 mm. Tres directiones: 1H
10	Facultates vendidit: Plus quam LXXX% de parte baptizati solida operietur		Temperature vendendi : 235± 5℃ Tempus baptizat: 2~3S
11	Solder Caloris Resistentia		Intingere solidamentum: 260±5℃ 5±1S Manuale solidamentum: 300±5℃ 2~3S
12	Salus Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Tempestas test		Ambiens Temperature :20±5℃ Relativum Umor: 65±5% RH Pressura aeris: LXXXVI ~ 106KPa

Microform switch Feature et Application

1.Sate, certa basic switch
2. Pulchra species, stricta contiguatio. Charactenistic: parva contactu dlearance, actio velox, magna sensibilitas et parva 3. peregrinatio operans.
4.Long vitam, princeps reliablity
5.A varietate contactus terminales
6.A varnety temperatus gradus
7.A variis vectibus
8.Adopt themosetting plastic vel themoplastic
9. Late usus in home apliane elecroninc apparatusautomatic apparatus communicationis equioncar electron, apparatus et 10. instrumentum motus electrici etc.

Microform SWITCH PB Details
