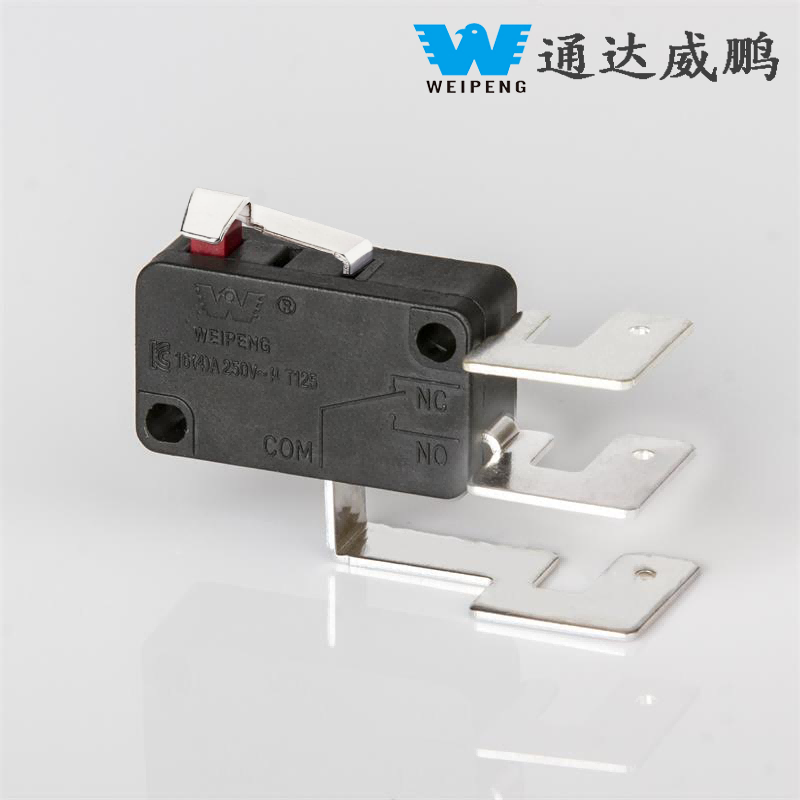

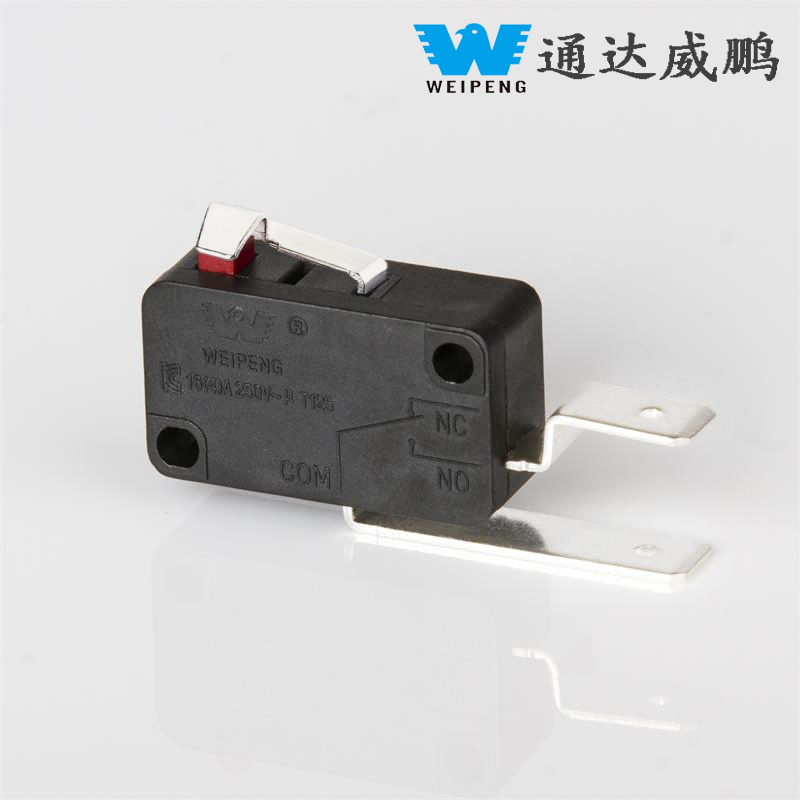

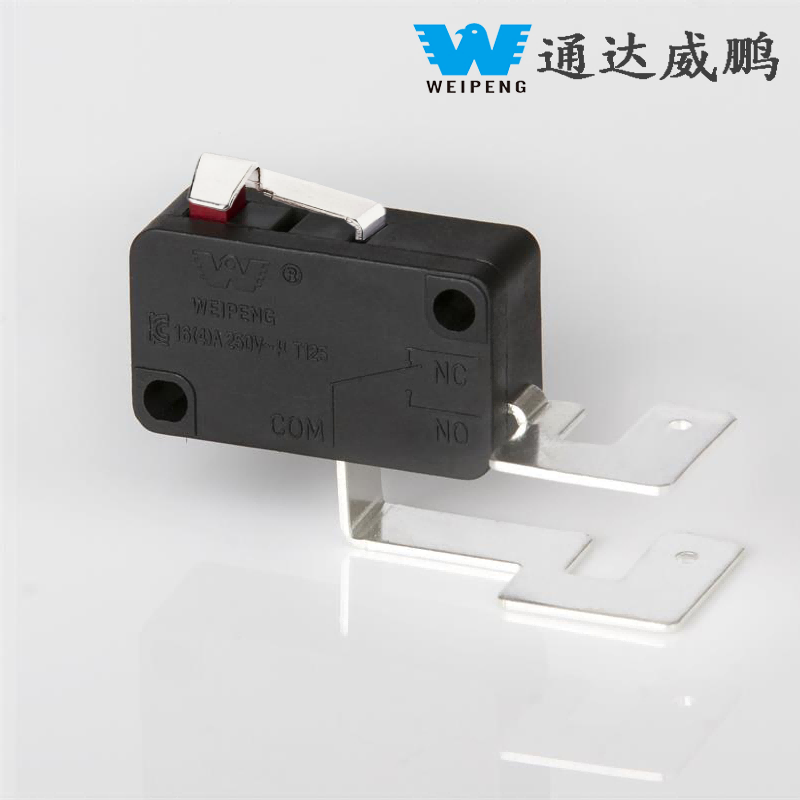

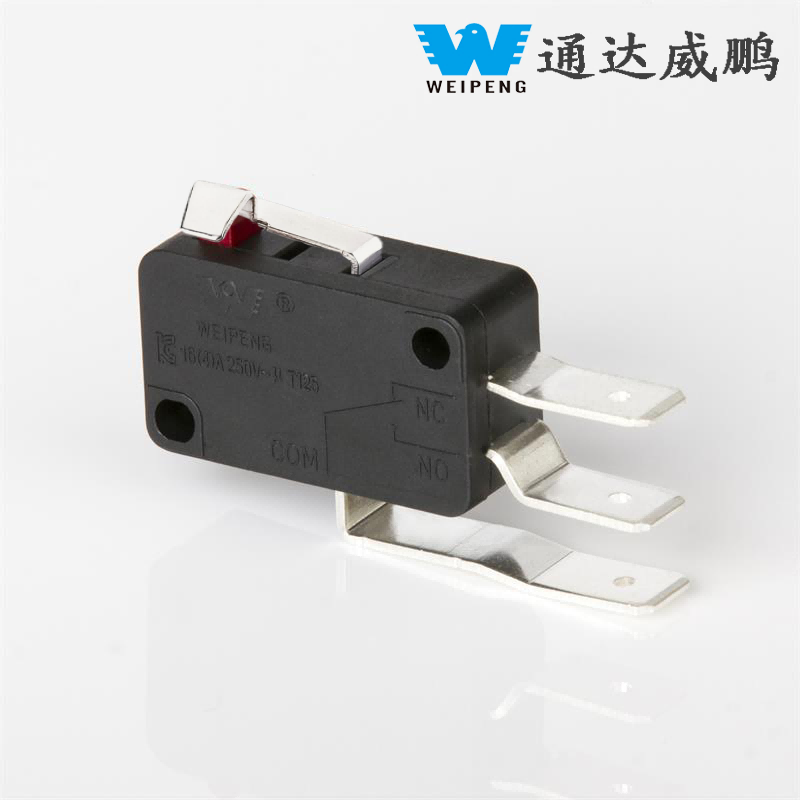

16A Iron Pin/Cuper Pin Micro Switch Home Appliance Accessories

Ut accumsan exemplar de Yueqing Tongda Wire Electric Factory microform series series, 16A Ferreus Pin/Cuprum Pin Micro Switch Home Appliance Accessories features "alta sensibilitas, ultra-longam vitam, et multi-scamaria aptabilitas" pro core utilitates eius. Integrata societas XXXV annorum peritia fabricandi, facta est clavis moderaminis componentis in adjumenta domestica, electronica automativa, automationis industriae, et in aliis agris, propter minimam contactum hiatum et celerem actionem mechanismum.

Model:HK-14-1X-16AP-813

Mitte Inquisitionem

depictio producti

WEIPEG® est ducens16A Iron Pin/Cuper Pin Micro Switch Home Appliance Accessories artifices, praebitores et exportatores.

Microform SWITCH PB

Facere asperam obsignatam habitationem et materias resistentes altae temperaturas, HK-14 notas electricas stabiles etiam in ambitibus cum tremore, pulvere et temperatura fluctuationes conservat. Eius normae ascendentes dimensiones et consilium terminale versatile permittunt facilem integrationem in lineas conventus, subsidia domus, instrumenta potentiae, systemata industrialem, reducendo complexionem institutionem et efficientiam melioris productionis.

HK-14 Commutatio multum commodum habet in ratione sumptus-faciendi. Comparatus cum similibus permutationibus microform summus, sumptibus effectionis efficaciter moderatur, servato excellenti observantia et qualitate, emptores cum optione producti cost-efective praebens. Eodem tempore, productum longum servitium habet vitam et humilem sustentationem gratuita, quae iuvare possunt clientes reducere altiore instrumento operandi impensas et consequi tum oeconomicum bonum et melius effectum.

Microform Parameter SWITCH PB (specification)

Technical Characteres switch:
ITEM	Technical Parameter		Precium
1	Electrical Rating		5(2)A/10A/16(3)A/21(8)A 250VAC
2	Contactus Resistentia		≤30mΩ valorem initial
3	Nulla Resistentia		≥100MΩ (500VDC)
4	Dielectric Voltage	inter non-connexa terminales	1000V/0.5mA/60S
		Inter terminals et metallum artus	3000V/0.5mA/60S
5	Vita electrica		≥50000 circuitus
6	Mechanica Vita		≥1000000 circuitus
7	Temperature operating		-25~ 125℃
8	Operating Frequency		electrica :15 circuitus Mechanica: LX circuitus
9	Vibratio Probatur		Vibratio Frequentia: 10~55HZ; Amplitude : 1.5 mm. Tres directiones: 1H
10	Facultates vendidit: Plus quam LXXX% de parte baptizati solida operietur		Temperature vendendi : 235± 5℃ Tempus baptizat: 2~3S
11	Solder Caloris Resistentia		Intingere solidamentum: 260±5℃ 5±1S Manuale solidamentum: 300±5℃ 2~3S
12	Salus Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Tempestas test		Ambiens Temperature :20±5℃ Relativum Umor: 65±5% RH Pressura aeris: LXXXVI ~ 106KPa

Microform switch Feature et Application

1.Sate, certa basic switch
2. Pulchra species, stricta contiguatio. Charactenistic: parva contactu dlearance, actio velox, magna sensibilitas et parva 3. peregrinatio operans.
4.Long vitam, princeps reliablity
5.A varietate contactus terminales
6.A varnety temperatus gradus
7.A variis vectibus
8.Adopt themosetting plastic vel themoplastic
9. Late usus in home apliane elecroninc apparatusautomatic apparatus communicationis equioncar electron, apparatus et 10. instrumentum motus electrici etc.

Microform SWITCH PB Details
