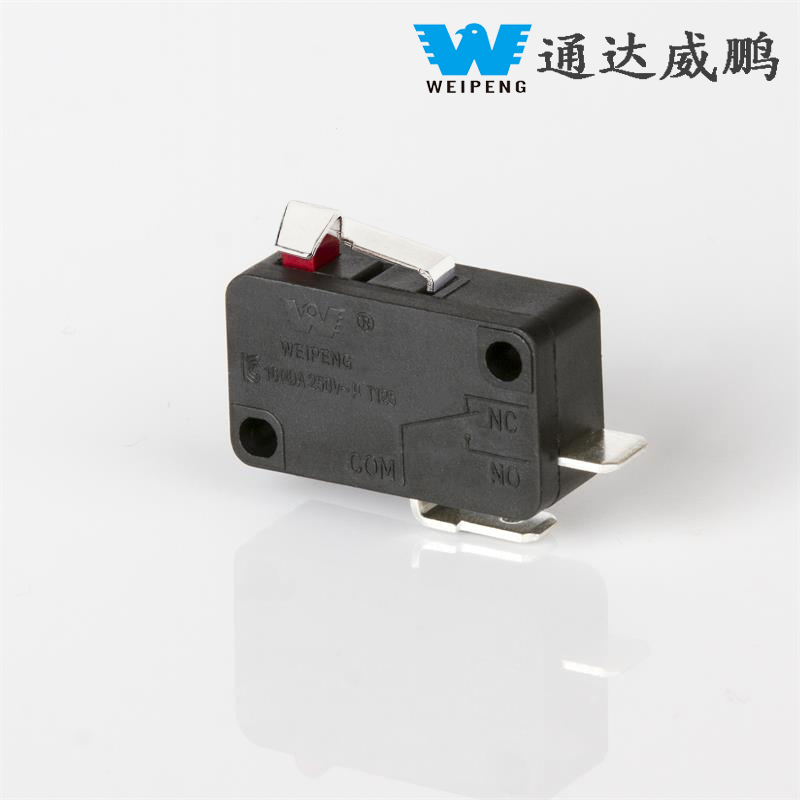

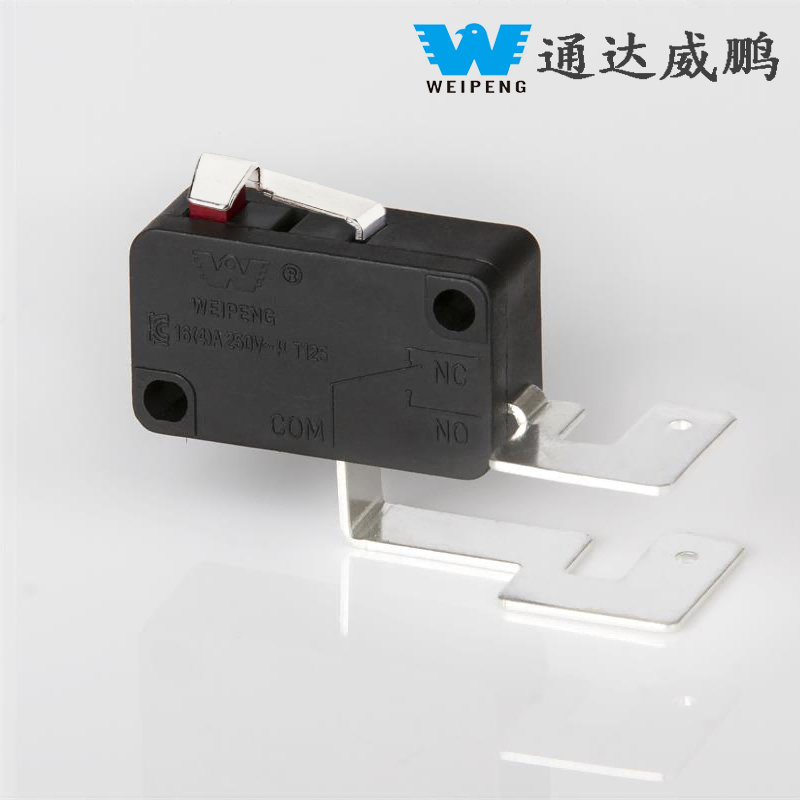

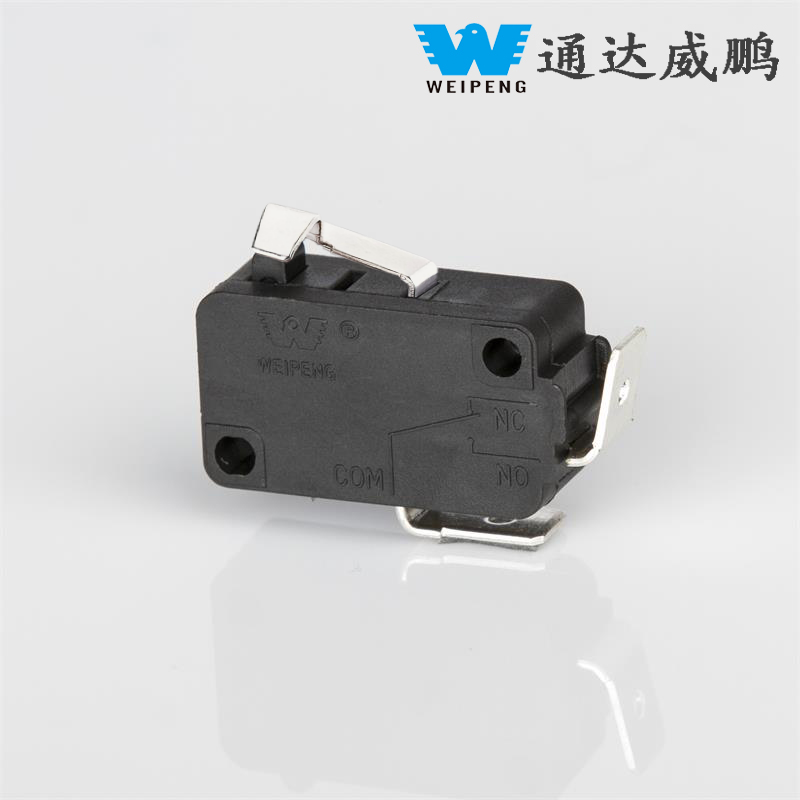

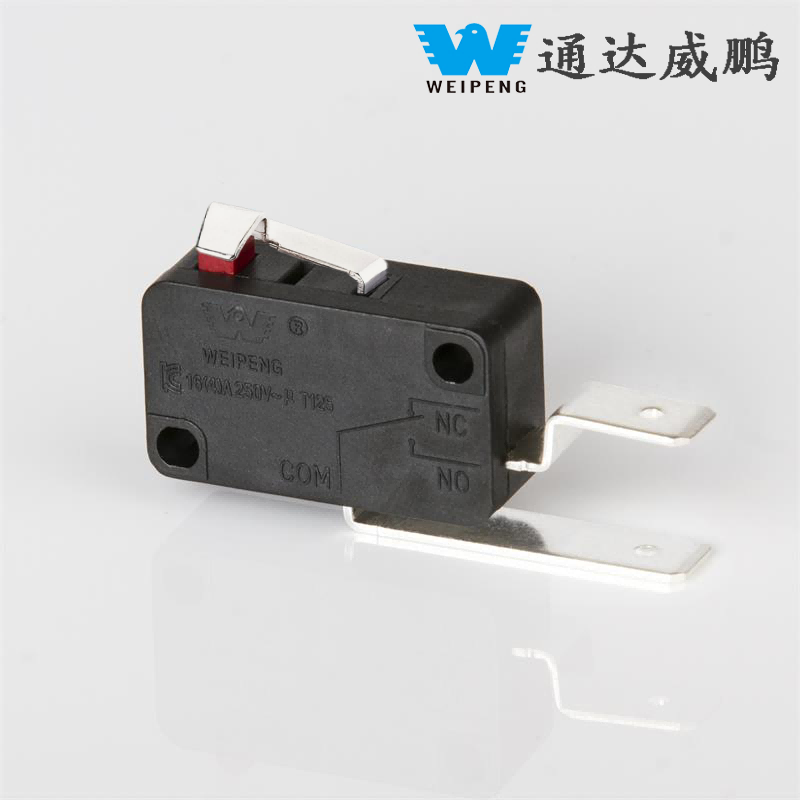

16A Arcum informibus palpate Vacuum luctus Reddere Micro Switch

Sicut Probatio exemplar of Yueqing Tongda Wire Electric Factory microform series, 16A Arcum Shaped Palpate Vacuum Cleaner Reset Micro SWITCH Resistant Micro Commutatio features "altae sensibilitatis, ultra-longae vitae, et multi-scenario aptabilitas" pro core utilitates eius. Integrata societas XXXV annorum peritia fabricandi, facta est clavis moderaminis componentis in adjumenta domestica, electronica automativa, automationis industriae, et in aliis agris, propter minimam contactum hiatum et celerem actionem mechanismum.

Model:HK-14-1X-16A-263

Mitte Inquisitionem

depictio producti

WEIPEG® est ducens16A Arcum informibus palpate Vacuum luctus Reddere Micro Switch artifices, praebitores et exportatores.

Microform SWITCH PB

In provincia civili, HK-XIV switch applicationes amplis habet, praesertim ad varias familias subsidia aptas sicut proin furnos, machinis abluendis, oryzae coquentium, et coquentium inductionem, et etiam ad potestatem interdum instrumentorum electricorum refrenandam adhiberi potest. Cum certa mutandi operatione et stabili operatione, hoc productum potest praecisam potestatem praebere ut normales initium, operandi, et subsidia domestica praecavendi, efficaciter praecavendi fabrica damnum et pericula salutis causa per defectum mutandi. Ob excellentem qualitatem suam, a multis notis domum adhibitis societatibus agnitum est ut Midea, Galanz et Supor, unus e nucleo praebitorum factus.

Microform Parameter SWITCH PB (specification)

Technical Characteres switch:
ITEM	Technical Parameter		Precium
1	Electrical Rating		5(2)A/10A/16(3)A/21(8)A 250VAC
2	Contactus Resistentia		≤30mΩ valorem initial
3	Nulla Resistentia		≥100MΩ (500VDC)
4	Dielectric Voltage	inter non-connexa terminales	1000V/0.5mA/60S
		Inter terminals et metallum artus	3000V/0.5mA/60S
5	Vita electrica		≥50000 circuitus
6	Mechanica Vita		≥1000000 circuitus
7	Temperature operating		-25~ 125℃
8	Operating Frequency		electrica :15 circuitus Mechanica: LX circuitus
9	Vibratio Probatur		Vibratio Frequentia: 10~55HZ; Amplitude : 1.5 mm. Tres directiones: 1H
10	Facultates vendidit: Plus quam LXXX% de parte baptizati solida operietur		Temperature vendendi : 235± 5℃ Tempus baptizat: 2~3S
11	Solder Caloris Resistentia		Intingere solidamentum: 260±5℃ 5±1S Manuale solidamentum: 300±5℃ 2~3S
12	Salus Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Tempestas test		Ambiens Temperature :20±5℃ Relativum Umor: 65±5% RH Pressura aeris: LXXXVI ~ 106KPa

Microform switch Feature et Application

1.Sate, certa basic switch
2. Pulchra species, stricta contiguatio. Charactenistic: parva contactu dlearance, actio velox, magna sensibilitas et parva 3. peregrinatio operans.
4.Long vitam, princeps reliablity
5.A varietate contactus terminales
6.A varnety temperatus gradus
7.A variis vectibus
8.Adopt themosetting plastic vel themoplastic
9. Late usus in home apliane elecroninc apparatusautomatic apparatus communicationis equioncar electron, apparatus et 10. instrumentum motus electrici etc.

Microform SWITCH PB Details
