16A Arcus Shaped palpate High Current Reddere Micro SWITCH PB

Sicut Probatio exemplar of Yueqing Tongda Wire Electric Factory microform series, 16A Arcum Shaped Handle High Current Reset Micro Switch features "altae sensibilitatis, ultra-longae vitae, et multi-scenario aptabilitas" pro core utilitates eius. Integrata societas XXXV annorum peritia fabricandi, facta est clavis moderaminis componentis in adjumenta domestica, electronica automativa, automationis industriae, et in aliis agris, propter minimam contactum hiatum et celerem actionem mechanismum.

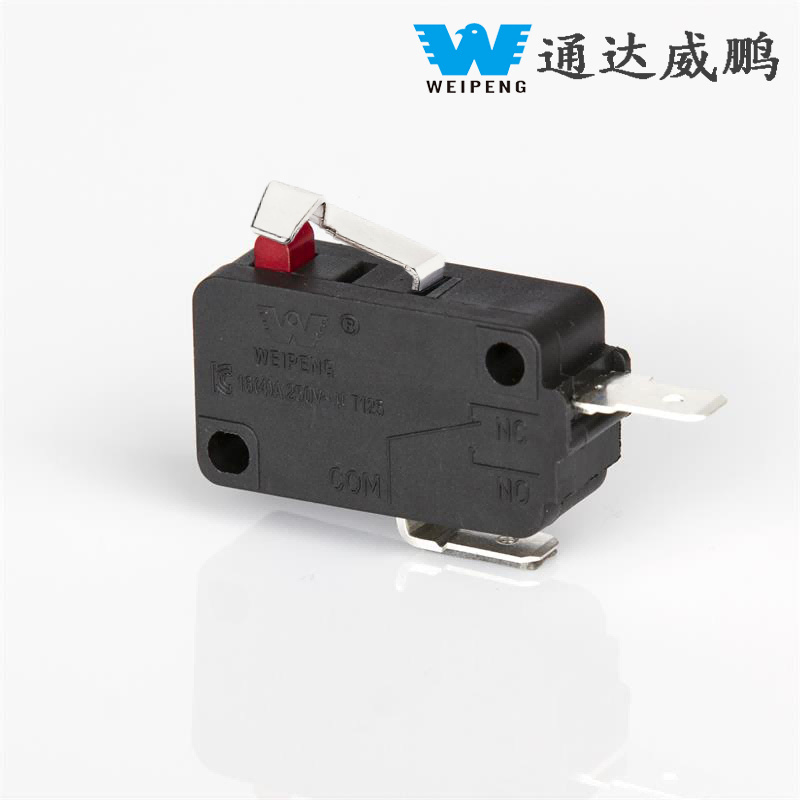

Model:HK-14-1X-16A-199

Mitte Inquisitionem

depictio producti

WEIPEG® est ducens16A Arcus Shaped palpate High Current Reddere Micro SWITCH PB artifices, praebitores et exportatores.

Microform SWITCH PB

Commutatio HK-XIV lineamenta a user-friendly compacta consilio, cum altiore dimensionibus moderatis circiter 39.8×18.7mm. Magnitudo eius parva efficaciter servat spatium institutionis internae, eamque maxime aptam pro parvis machinis et subtilitatis instrumentis cum spatio institutionis stricto. Ad varias institutiones scenicos et excitatos requisita, hoc productum praebet multiplex felis genera eligere e, including genus globulorum, genus breve vectis, genus vectis longum, et cylindrus genus vectis. Singulae felis species praecise calibratae sunt, cum modica actuum vi et responsione sensitiva. Users possunt mollius eligere aptam felis genus secundum notas fabricas et modum operandi, commoditatem fabricae operationis augere.

Construction & Materials

Habitationi: Summus fortitudo flammea thermoplastic, impetus & calor resistens

Noti: mixtura Argentea (AgCdO/AgNi), arc-resistentia, contactus humilis resistentia

Terminalia: 4.8mm cuprum stannum patella, obturaculum in & solidarium compatibile

Actuator: Plunger / vectis optiones (recta, curva, cylindrus, etc.)

Typical Applications

Domus Adjumentum: Door / modus sentiendi ad microwaves, washers, furnos, rice cookers

Industriae: Automation arma, instrumenta potentia, sentinam / valvae imperium, interlocks salutem

Electronics: Potentia commeatus, instrumenta, instrumentum curans, cogitationes securitatis

Microform Parameter SWITCH PB (specification)

Technical Characteres switch:
ITEM	Technical Parameter		Precium
1	Electrical Rating		5(2)A/10A/16(3)A/21(8)A 250VAC
2	Contactus Resistentia		≤30mΩ valorem initial
3	Nulla Resistentia		≥100MΩ (500VDC)
4	Dielectric Voltage	inter non-connexa terminales	1000V/0.5mA/60S
		Inter terminals et metallum artus	3000V/0.5mA/60S
5	Vita electrica		≥50000 circuitus
6	Mechanica Vita		≥1000000 circuitus
7	Temperature operating		-25~ 125℃
8	Operating Frequency		electrica :15 circuitus Mechanica: LX circuitus
9	Vibratio Probatur		Vibratio Frequentia: 10~55HZ; Amplitude : 1.5 mm. Tres directiones: 1H
10	Facultates vendidit: Plus quam LXXX% de parte baptizati solida operietur		Temperature vendendi : 235± 5℃ Tempus baptizat: 2~3S
11	Solder Caloris Resistentia		Intingere solidamentum: 260±5℃ 5±1S Manuale solidamentum: 300±5℃ 2~3S
12	Salus Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Tempestas test		Ambiens Temperature :20±5℃ Relativum Umor: 65±5% RH Pressura aeris: LXXXVI ~ 106KPa

Microform switch Feature et Application

1.Sate, certa basic switch
2. Pulchra species, stricta contiguatio. Charactenistic: parva contactu dlearance, actio velox, magna sensibilitas et parva 3. peregrinatio operans.
4.Long vitam, princeps reliablity
5.A varietate contactus terminales
6.A varnety temperatus gradus
7.A variis vectibus
8.Adopt themosetting plastic vel themoplastic
9. Late usus in home apliane elecroninc apparatusautomatic apparatus communicationis equioncar electron, apparatus et 10. instrumentum motus electrici etc.

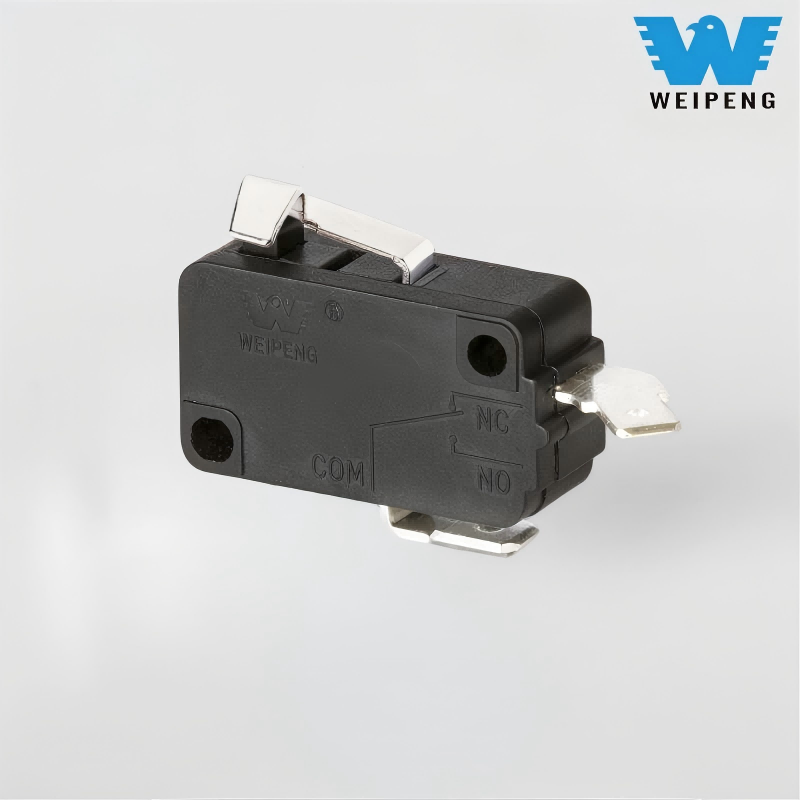

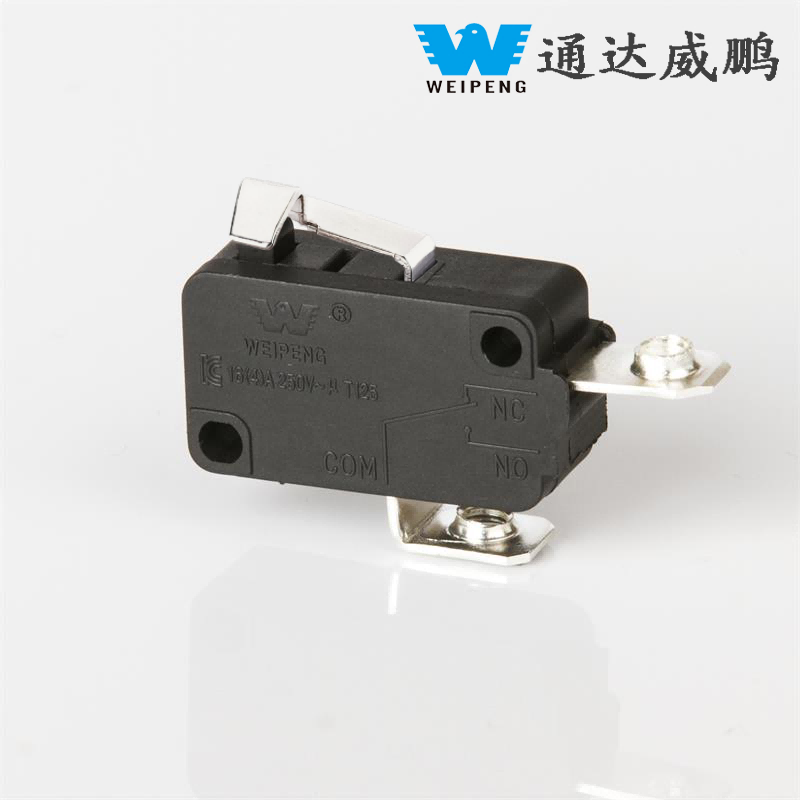

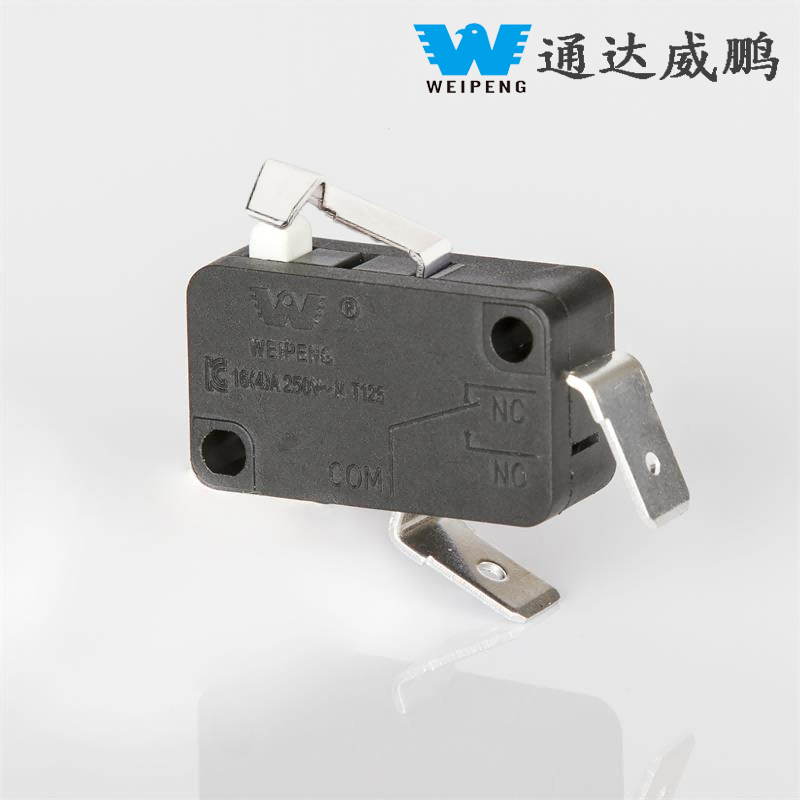

Microform SWITCH PB Details
