16A Arcus Shaped palpate High Current Micro SWITCH PB

Sicut Probatio exemplar of Yueqing Tongda Wire Electric Factory microform series, 16A Arcum Shaped palpate High Current Micro-Privatio features "altae sensibilitatis, ultra-longae vitae, et multi-scenario aptabilitas" pro core utilitates eius. Integrata societas XXXV annorum peritia fabricandi, facta est clavis moderaminis componentis in adjumenta domestica, electronica automativa, automationis industriae, et in aliis agris, propter minimam contactum hiatum et celerem actionem mechanismum.

Model:HK-14-1-16AP-718

Mitte Inquisitionem

depictio producti

WEIPEG® est ducens16A Arcus Shaped palpate High Current Micro SWITCH PB artifices, praebitores et exportatores.

Microform SWITCH PB

Ut nucleus praetoriae productum de Yueqing Tongda Cable potentiae Plantae, HK-14 transitum in aptabilitate environmental excellit. Post gravem altam et infimam temperaturas probationes et senescentes probationes subeundas, potest stabiliter operari intra amplam temperie- nem amplitudinem inter 25℃ usque ad 125℃. Utrum in asperis ambitibus frigidis velit vel interioribus armorum summus temperatus, bonum obtinet in-off effectus. Eodem tempore, productum vitam mechanicam habet supra 500,000 cyclos, facile sustinens diuturnum tempus summus frequentiae operationis indumentum, efficaciter reducendo frequentiam sequentium instrumentorum sustentationem et subrogationem. Ad conditiones implicatas apta est, ut operatio continua industrialis ac frequentia usus domesticorum subsidiorum, validum auxilium praebens ad diuturnum tempus stabilis instrumenti operationis.

Construction & Materials

Habitationi: Summus fortitudo flammea thermoplastic, impetus & calor resistens

Noti: mixtura Argentea (AgCdO/AgNi), arc-resistentia, contactus humilis resistentia

Terminalia: 4.8mm cuprum stannum patella, obturaculum in & solidarium compatibile

Actuator: Plunger / vectis optiones (recta, curva, cylindrus, etc.)

Commodo euismod

Princeps Current Capacitas: Sursum ad 21A, apta summus potentia onerat

REPENTE Free Snap Action: Instant switching cum brevi peregrinatione, firmum contactus

Princeps flexibilitas: Multiplex paxillus & vectibus, plene vestibulum

Industrial-Grade Reliability: Lata temperatura, IP40, approbationes plenae in ambitus asperos

Microform Parameter SWITCH PB (specification)

Technical Characteres switch:
ITEM	Technical Parameter		Precium
1	Electrical Rating		5(2)A/10A/16(3)A/21(8)A 250VAC
2	Contactus Resistentia		≤30mΩ valorem initial
3	Nulla Resistentia		≥100MΩ (500VDC)
4	Dielectric Voltage	inter non-connexa terminales	1000V/0.5mA/60S
		Inter terminals et metallum artus	3000V/0.5mA/60S
5	Vita electrica		≥50000 circuitus
6	Mechanica Vita		≥1000000 circuitus
7	Temperature operating		-25~ 125℃
8	Operating Frequency		electrica :15 circuitus Mechanica: LX circuitus
9	Vibratio Probatur		Vibratio Frequentia: 10~55HZ; Amplitude : 1.5 mm. Tres directiones: 1H
10	Facultates vendidit: Plus quam LXXX% de parte baptizati solida operietur		Temperature vendendi : 235± 5℃ Tempus baptizat: 2~3S
11	Solder Caloris Resistentia		Intingere solidamentum: 260±5℃ 5±1S Manuale solidamentum: 300±5℃ 2~3S
12	Salus Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Tempestas test		Ambiens Temperature :20±5℃ Relativum Umor: 65±5% RH Pressura aeris: LXXXVI ~ 106KPa

Microform switch Feature et Application

1.Sate, certa basic switch
2. Pulchra species, stricta contiguatio. Charactenistic: parva contactu dlearance, actio velox, magna sensibilitas et parva 3. peregrinatio operans.
4.Long vitam, princeps reliablity
5.A varietate contactus terminales
6.A varnety temperatus gradus
7.A variis vectibus
8.Adopt themosetting plastic vel themoplastic
9. Late usus in home apliane elecroninc apparatusautomatic apparatus communicationis equioncar electron, apparatus et 10. instrumentum motus electrici etc.

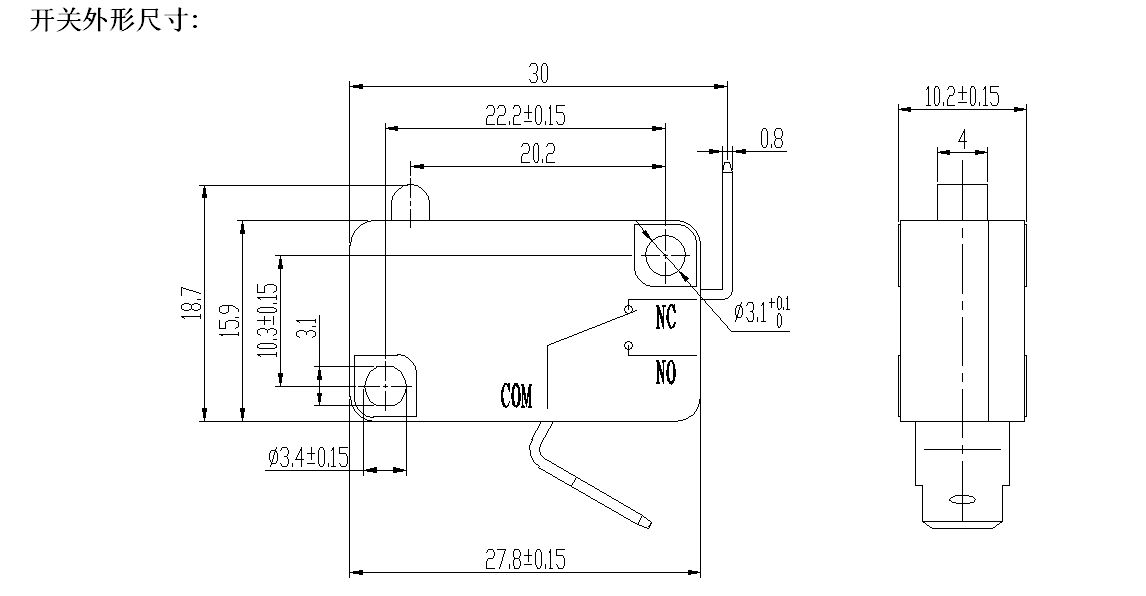

Microform SWITCH PB Details
