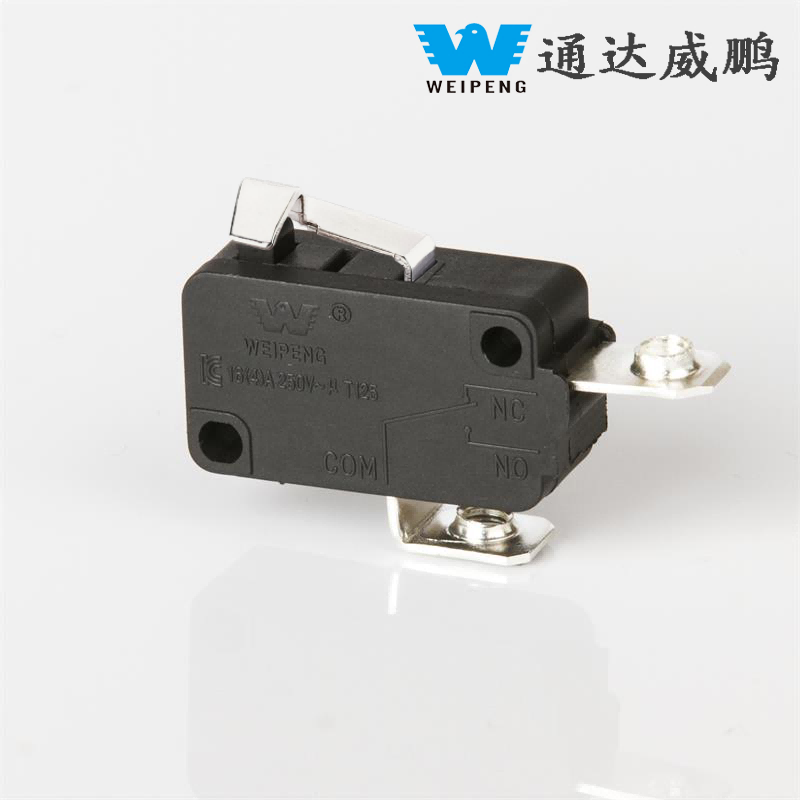

16A Arcum palpate Rice Cooker Reddere Micro Switch

Ut accumsan exemplar de Yueqing Tongda Wire Electric Factory microform series, 16A Arcum manubrium Rice Cooker Reset Micro Switch Resistant Micro switch features "altae sensibilitatis, ultra-longae vitae, et multi-scenario aptabilitas" pro core utilitates eius. Integrata societas XXXV annorum peritia fabricandi, facta est clavis moderaminis componentis in adjumenta domestica, electronica automativa, automationis industriae, et in aliis agris, propter minimam contactum hiatum et celerem actionem mechanismum.

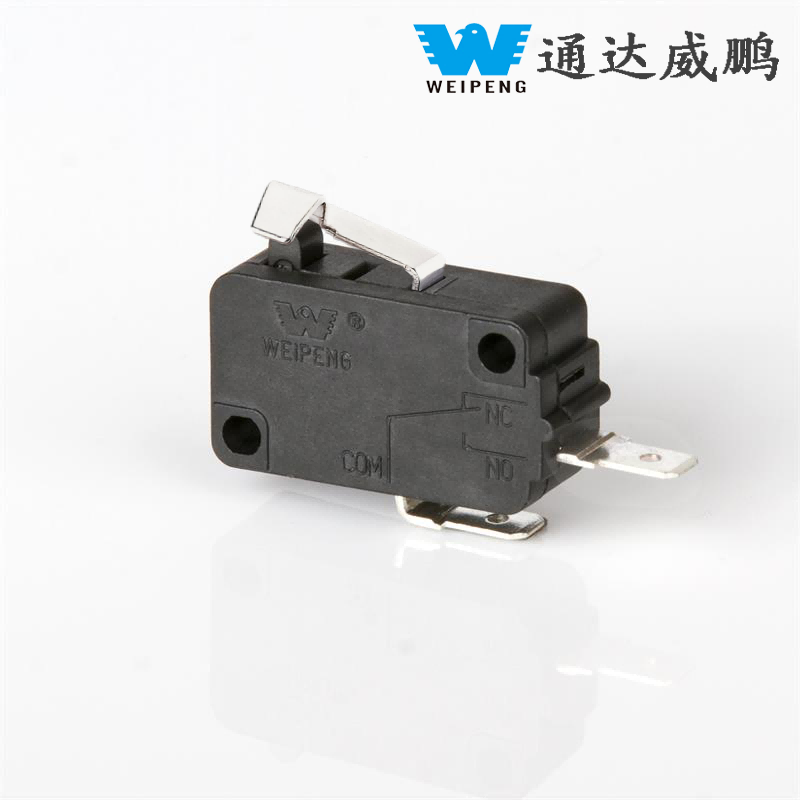

Model:HK-14-1X-10A-505

Mitte Inquisitionem

depictio producti

WEIPEG® est ducens16A Arcum palpate Rice Cooker Reddere Micro Switch artifices, praebitores et exportatores.

Microform SWITCH PB

Leqing Tongda Cable fretus Potentiae Plantae maturae automatae lineae productionis, HK-XIV genus switch subit qualitatem strictam ab ingressu materiarum rudium, partium processus, ad conventum operis et officinas probationis perfecti. Omnis processus a curatoribus professionalibus administratur ut qualitas producta constans et stabilis efficiatur. Producta omnia sunt plene deprauabilia, postea faciliora inspectionem et conservationem qualitatis. Ad personales necessitates diversarum industriarum et clientium occurrentes, plenae amplitudinis huius producti sustinet exemplar customizationis, ut HK-14-1-16A-108, HK-14-1X-16A-204, et alia exempla consuetudinum. Haec praecise congruere possunt usui exigentiis specificis emptoris exigentiis oneris, excitato methodo et magnitudine, meliori productum convenientiae cum apparatu.

Typical Applications

Domus Adjumentum: Door / modus sentiendi ad microwaves, washers, furnos, rice cookers

Industriae: Automation arma, instrumenta potentia, sentinam / valvae imperium, interlocks salutem

Electronics: Potentia commeatus, instrumenta, instrumentum curans, cogitationes securitatis

Microform Parameter SWITCH PB (specification)

Technical Characteres switch:
ITEM	Technical Parameter		Precium
1	Electrical Rating		5(2)A/10A/16(3)A/21(8)A 250VAC
2	Contactus Resistentia		≤30mΩ valorem initial
3	Nulla Resistentia		≥100MΩ (500VDC)
4	Dielectric Voltage	inter non-connexa terminales	1000V/0.5mA/60S
		Inter terminals et metallum artus	3000V/0.5mA/60S
5	Vita electrica		≥50000 circuitus
6	Mechanica Vita		≥1000000 circuitus
7	Temperature operating		-25~ 125℃
8	Operating Frequency		electrica :15 circuitus Mechanica: LX circuitus
9	Vibratio Probatur		Vibratio Frequentia: 10~55HZ; Amplitude : 1.5 mm. Tres directiones: 1H
10	Facultates vendidit: Plus quam LXXX% de parte baptizati solida operietur		Temperature vendendi : 235± 5℃ Tempus baptizat: 2~3S
11	Solder Caloris Resistentia		Intingere solidamentum: 260±5℃ 5±1S Manuale solidamentum: 300±5℃ 2~3S
12	Salus Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Tempestas test		Ambiens Temperature :20±5℃ Relativum Umor: 65±5% RH Pressura aeris: LXXXVI ~ 106KPa

Microform switch Feature et Application

1.Sate, certa basic switch
2. Pulchra species, stricta contiguatio. Charactenistic: parva contactu dlearance, actio velox, magna sensibilitas et parva 3. peregrinatio operans.
4.Long vitam, princeps reliablity
5.A varietate contactus terminales
6.A varnety temperatus gradus
7.A variis vectibus
8.Adopt themosetting plastic vel themoplastic
9. Late usus in home apliane elecroninc apparatusautomatic apparatus communicationis equioncar electron, apparatus et 10. instrumentum motus electrici etc.

Microform SWITCH PB Details
