10A Arcum informibus palpate Dustproof Micro Switch

Sicut Probatio exemplar of Yueqing Tongda Wire Electric Factory microform series, 10A Arcum-formatum Palpate Pulverulenta Microforma Cie features "sensibilitas altae, ultra-longae vitae, et multi-scenarii aptabilitas" pro core utilitates eius. Integrata societas XXXV annorum peritia fabricandi, facta est clavis moderaminis componentis in adjumenta domestica, electronica automativa, automationis industriae, et in aliis agris, propter minimam contactum hiatum et celerem actionem mechanismum.

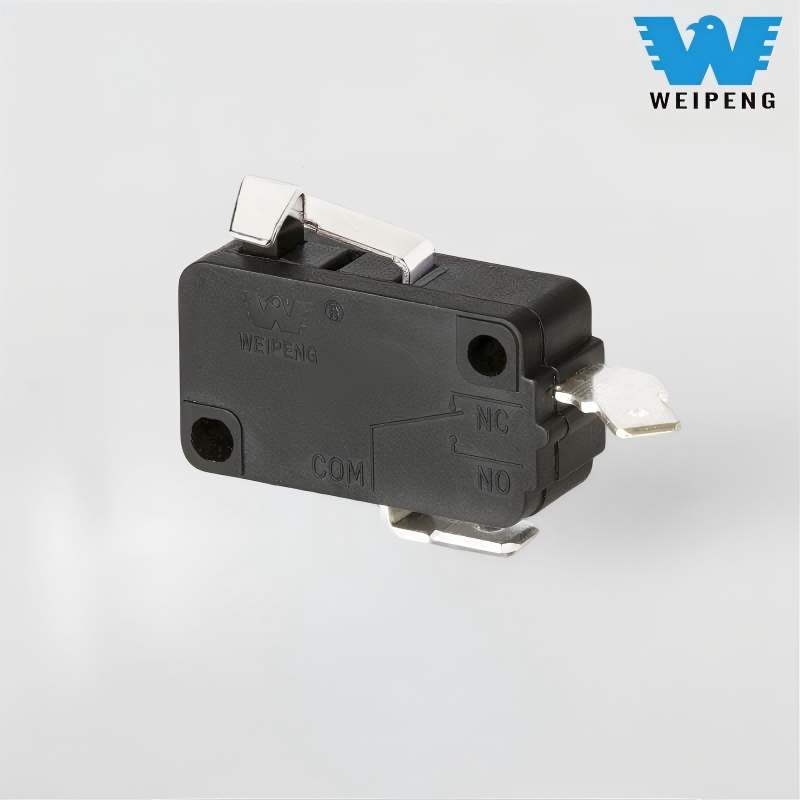

Model:HK-14-1-10A-405

Mitte Inquisitionem

depictio producti

WEIPEG® est ducens10A Arcum informibus palpate Dustproof Micro Switch artifices, praebitores et exportatores.

Microform SWITCH PB

Yueqing Tongda Cable Factory Electric (WEIPENG) HK-XIV typus switch est magna microform switch quae tendit in esse compactum et durabile. Cum nucleo suo commoda excellentis sensus et capacitatis fractionis, praelatus compatibilis in variis campis facta est, sicut instrumenta domus, industriae imperium, et electronica autocineta, demonstrans notam validam fabricandi facultates et qualitatem productivam.

Construction & Materials

Habitationi: Summus fortitudo flammea thermoplastic, impetus & calor resistens

Noti: mixtura Argentea (AgCdO/AgNi), arc-resistentia, contactus humilis resistentia

Terminalia: 4.8mm cuprum stannum patella, obturaculum in & solidarium compatibile

Actuator: Plunger / vectis optiones (recta, curva, cylindrus, etc.)

Microform Parameter SWITCH PB (specification)

Technical Characteres switch:
ITEM	Technical Parameter		Precium
1	Electrical Rating		5(2)A/10A/16(3)A/21(8)A 250VAC
2	Contactus Resistentia		≤30mΩ valorem initial
3	Nulla Resistentia		≥100MΩ (500VDC)
4	Dielectric Voltage	inter non-connexa terminales	1000V/0.5mA/60S
		Inter terminals et metallum artus	3000V/0.5mA/60S
5	Vita electrica		≥50000 circuitus
6	Mechanica Vita		≥1000000 circuitus
7	Temperature operating		-25~ 125℃
8	Operating Frequency		electrica :15 circuitus Mechanica: LX circuitus
9	Vibratio Probatur		Vibratio Frequentia: 10~55HZ; Amplitude : 1.5 mm. Tres directiones: 1H
10	Facultates vendidit: Plus quam LXXX% de parte baptizati solida operietur		Temperature vendendi : 235± 5℃ Tempus baptizat: 2~3S
11	Solder Caloris Resistentia		Intingere solidamentum: 260±5℃ 5±1S Manuale solidamentum: 300±5℃ 2~3S
12	Salus Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Tempestas test		Ambiens Temperature :20±5℃ Relativum Umor: 65±5% RH Pressura aeris: LXXXVI ~ 106KPa

Microform switch Feature et Application

1.Sate, certa basic switch
2. Pulchra species, stricta contiguatio. Charactenistic: parva contactu dlearance, actio velox, magna sensibilitas et parva 3. peregrinatio operans.
4.Long vitam, princeps reliablity
5.A varietate contactus terminales
6.A varnety temperatus gradus
7.A variis vectibus
8.Adopt themosetting plastic vel themoplastic
9. Late usus in home apliane elecroninc apparatusautomatic apparatus communicationis equioncar electron, apparatus et 10. instrumentum motus electrici etc.

Microform SWITCH PB Details
